Gear Change-Automatic Transmission (2.0L I4 High Dohc Aj200 Petrol, 8 Speed Auto Trans Zf 8Hp45)...

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Gear Change-Automatic Transmission (2.0L I4 High DOHC AJ200 Petrol, 8 Speed Auto Trans ZF 8HP45)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR093829 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR047810 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
VYH500020 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYG501590 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR022943 LEVER - GEAR SHIFT Enquire To Order
Photo Part No Description Price (each) Stock
LR100480 BRACKET - CABLE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR099206 MODULE - TRANSFER SHIFT CONTROL Enquire To Order
LR113155 MODULE - TRANSFER SHIFT CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR100481 CABLE - EMERGENCY RELEASE Enquire To Order
View All

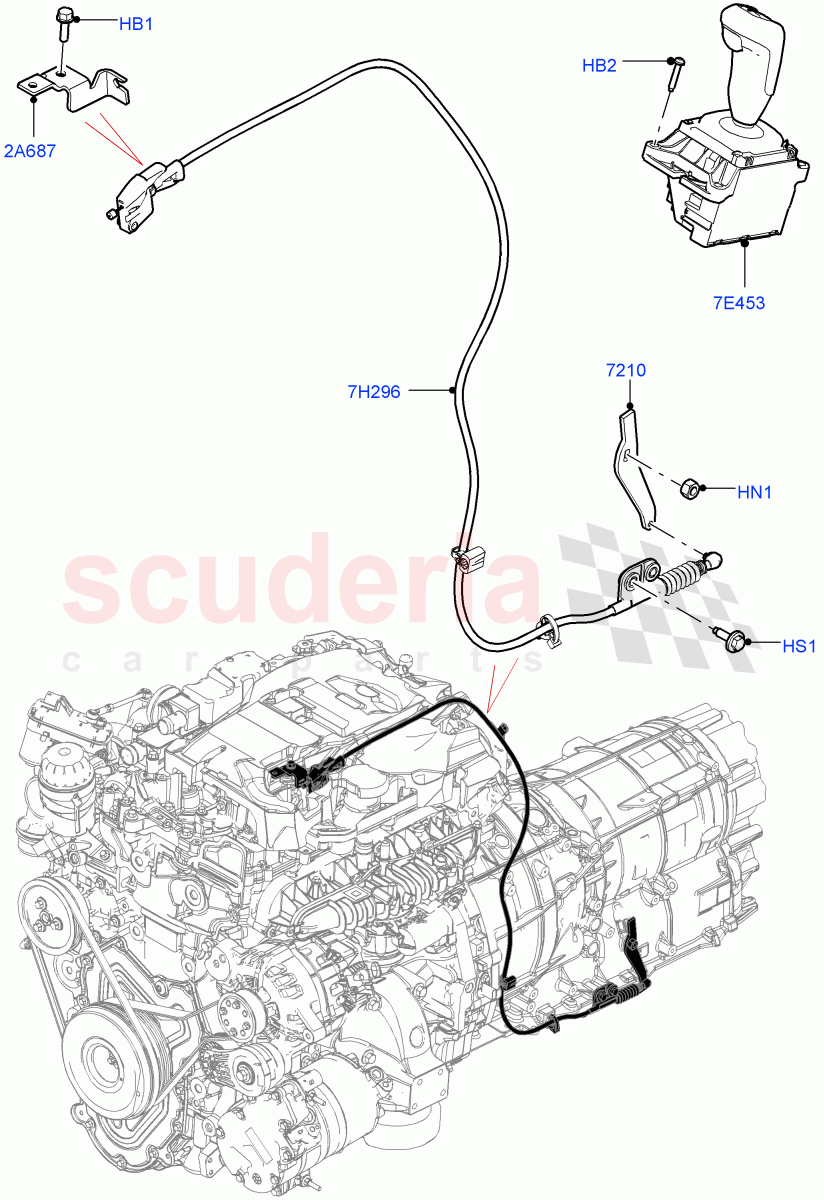

Gear Change-Automatic Transmission (2.0L I4 High DOHC AJ200 Petrol, 8 Speed Auto Trans ZF 8HP45) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR093829
BOLT
Bracket, Hexagonal Head, M6 X 20MM / From: JA000001 		- 1 Enquire
HB2 LR047810
BOLT
M5 x 25 / From: JA000001 		- 4 Enquire
HN1 VYH500020
NUT - HEX.
M8 x 1.0MM / From: JA000001 		- 1 Enquire
HS1 RYG501590
SCREW
Hexagonal Head, M6 X 20MM, To Transmission / From: JA000001 		- 2 Enquire
2A687 LR100480
BRACKET - CABLE SUPPORT
From: JA000001 		- 1 Enquire
7E453 LR099206
MODULE - TRANSFER SHIFT CONTROL
Seat - Standard / For "P" Button Delamination / Peeling See LTB 00898, For "Trigger" Button Breaking Use LR117072 / From: JA000001 / To: JA999999 		- 1 Enquire
7E453 LR113155
MODULE - TRANSFER SHIFT CONTROL
For "P" Button Delamination / Peeling See LTB 00898, For "Trigger" Button Breaking Use LR117072 / From: KA000001 		- 1 Enquire
7H296 LR100481
CABLE - EMERGENCY RELEASE
From: JA000001 		- 1 Enquire
7210 LR022943
LEVER - GEAR SHIFT
From: JA000001 		- 1 Enquire
