Fuel Tank & Related Parts (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Tank & Related Parts (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

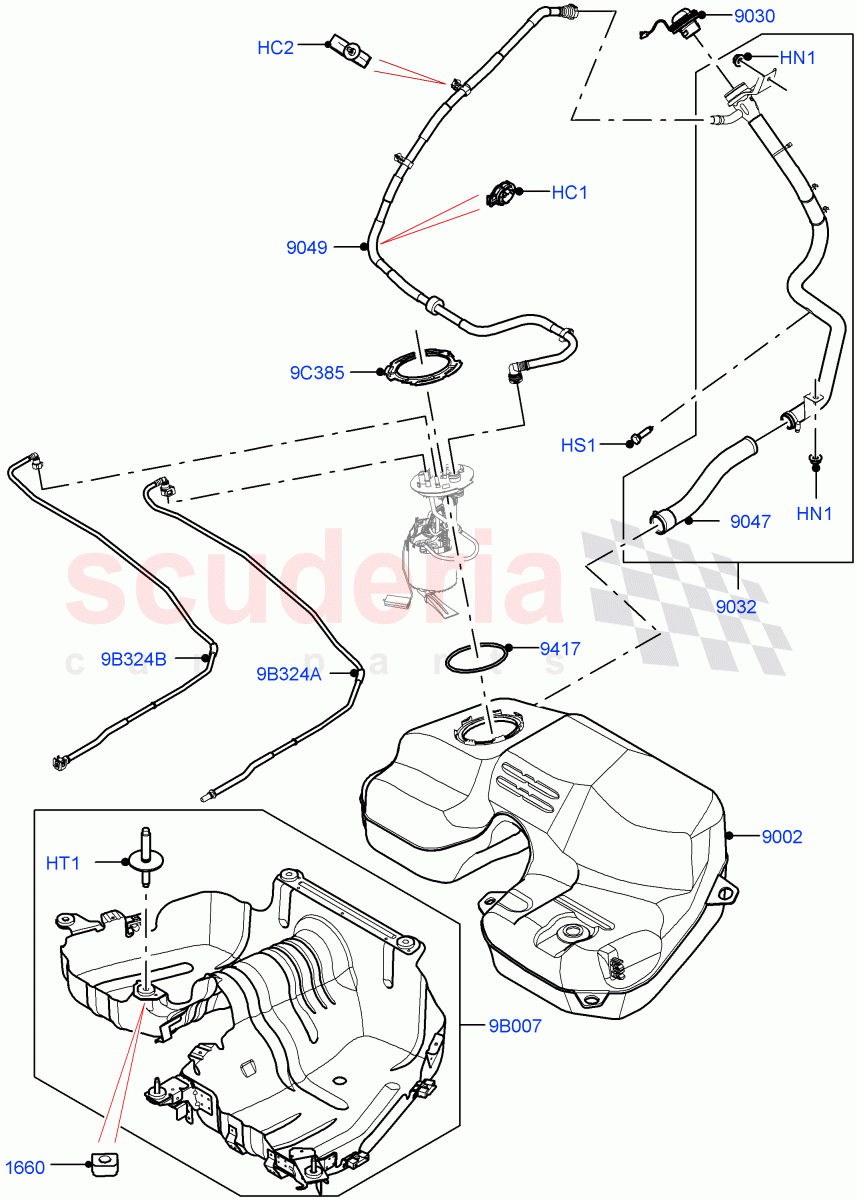

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR044902	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094016	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116066	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112190	CAP - FUEL TANK FILLER	Enquire	To Order
	LR138719	CAP - FUEL TANK FILLER	Enquire	To Order
	LR053666	CAP - FUEL TANK FILLER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR051673	PIPE - FUEL FILLER	Enquire	To Order
	LR116345	PIPE - FUEL FILLER	Enquire	To Order
	LR051672	PIPE - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051676	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053462	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140295	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087019	RING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086521	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086520	TUBE - FUEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR044902	CLIP - HOSE	LR044902 CLIP - HOSE 10-25 X 1.5-3, Plastic / From: LA000001	-	1	Enquire
HC2	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Plastic, Upper / From: LA000001	-	2	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: LA000001	-	2	Enquire
HS1	AYP500110	SCREW	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM / From: LA000001	-	1	Enquire
HT1	LR094016	STUD	LR094016 STUD Hexagonal Head, M10 X 41 + M8 X 22 / From: LA000001	-	2	Enquire
9B007	LR140295	SHIELD	LR140295 SHIELD From: LA000001	-	1	Enquire
9B324A	LR086521	TUBE - FUEL	LR086521 TUBE - FUEL Feed / From: LA000001	-	1	Enquire
9B324B	LR086520	TUBE - FUEL	LR086520 TUBE - FUEL Return / From: LA000001	-	1	Enquire
9C385	LR087019	RING - RETAINING	LR087019 RING - RETAINING From: LA000001	-	1	Enquire
9002	LR116066	TANK - FUEL	LR116066 TANK - FUEL From: LA000001	-	1	Enquire
9030	LR112190	CAP - FUEL TANK FILLER	LR112190 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: LA000001 / To: LA747220	-	1	Enquire
9030	LR138719	CAP - FUEL TANK FILLER	LR138719 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: LA747221	-	1	Enquire
9030	LR053666	CAP - FUEL TANK FILLER	LR053666 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - All Nozzles / From: LA000001 / To: MA757797	-	1	Enquire
9030	LR138861	CAP - FUEL TANK FILLER	LR138861 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Diesel / From: MA757798	-	1	Enquire
9032	LR051673	PIPE - FUEL FILLER	LR051673 PIPE - FUEL FILLER Fuel Tank Filler Neck - All Nozzles / Complete Assembly / From: LA000001	-	1	Enquire
9032	LR116345	PIPE - FUEL FILLER	LR116345 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit / Complete Assembly / From: LA000001	-	1	Enquire
9032	LR051672	PIPE - FUEL FILLER	LR051672 PIPE - FUEL FILLER Fuel Tank Filler Neck - Diesel / Complete Assembly / From: LA000001	-	1	Enquire
9047	LR051676	HOSE - FILLER PIPE	LR051676 HOSE - FILLER PIPE Connects To Fuel Tank / From: LA000001	-	1	Enquire
9049	LR053462	TUBE - FUEL VAPOUR	LR053462 TUBE - FUEL VAPOUR From: LA000001	-	1	Enquire
9417	LR117476	GASKET	LR117476 GASKET O-Ring / From: LA000001	-	1	Enquire
