Turbocharger (Turbocharger Related Parts) (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Turbocharger (Turbocharger Related Parts) (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

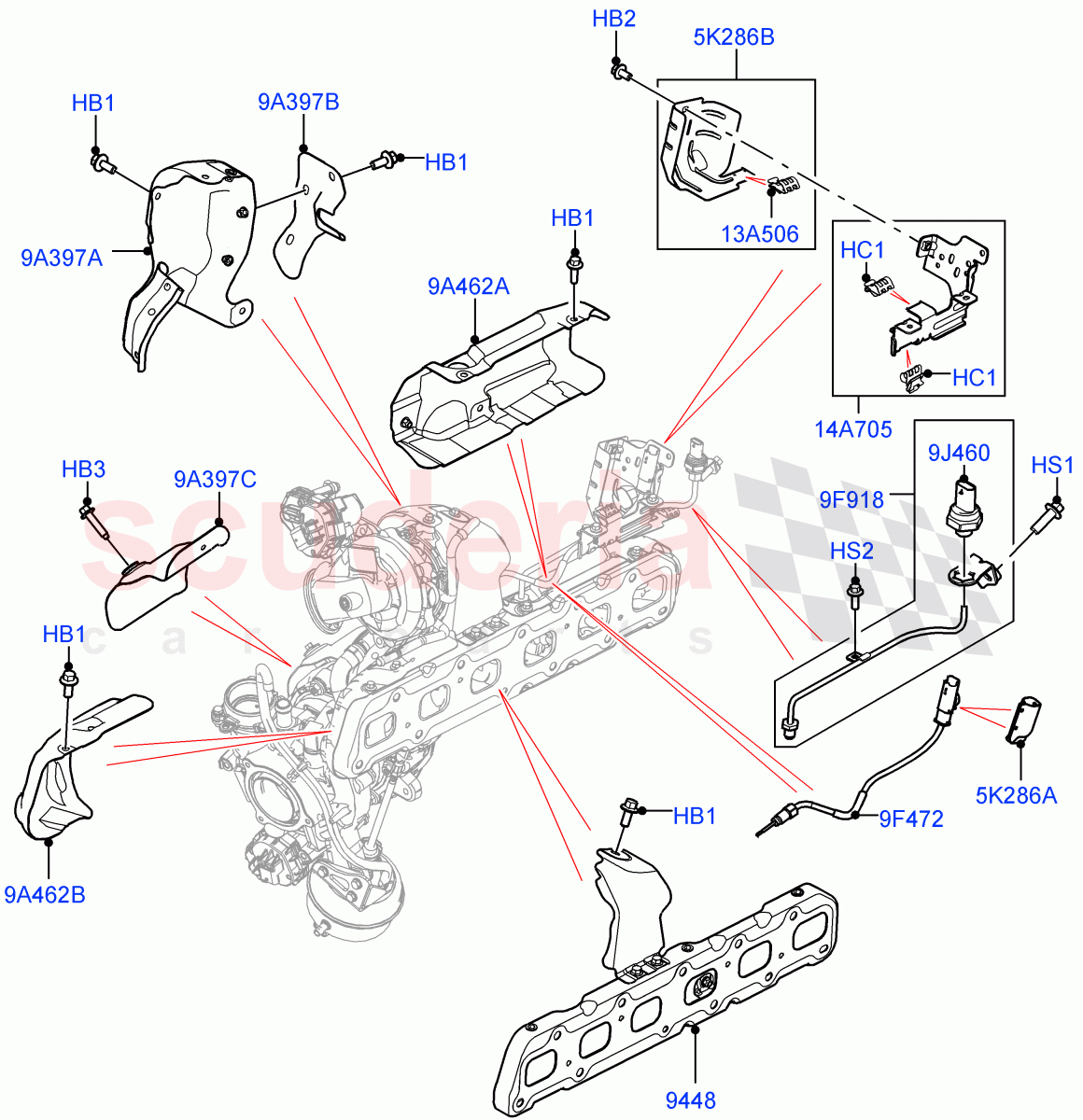

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091557	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126161	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125334	GASKET - EXHAUST MANIFOLD	Enquire	To Order
	LR154225	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125607	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128554	SENSOR - EXHAUST GAS PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139306	SENSOR - EXHAUST GAS PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138995	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139159	HEAT SHIELD - CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128751	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125337	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125339	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128151	HEAT SHIELD - TURBOCHARGER	Enquire	To Order
	LR128151	HEAT SHIELD - TURBOCHARGER	Enquire	To Order
	LR128151	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR125341	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125342	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM / From: LA000001	-	13	Enquire
HB2	FS106126	BOLT	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: LA000001	-	1	Enquire
HB3	LR091557	BOLT	LR091557 BOLT M6 X 25MM / From: LA000001	-	2	Enquire
HC1	LR126161	CLIP	LR126161 CLIP 8 X 2.75mm / From: LA000001	-	2	Enquire
HS1	LR073724	SCREW	LR073724 SCREW M8 X 25MM / From: LA000001	-	1	Enquire
HS2	LR073686	SCREW	LR073686 SCREW M6 X 16MM / From: LA000001	-	1	Enquire
5K286A	LR139159	HEAT SHIELD - CONNECTOR	LR139159 HEAT SHIELD - CONNECTOR Connector, Exhaust Gas Temperature Sensor / From: LA000001	-	1	Enquire
5K286B	LR128751	SHIELD - EXHAUST MANIFOLD HEAT	LR128751 SHIELD - EXHAUST MANIFOLD HEAT Wiring Harness / From: LA000001	-	1	Enquire
9A397A	LR125337	HEAT SHIELD - TURBOCHARGER	LR125337 HEAT SHIELD - TURBOCHARGER Turbocharger, Upper / From: LA000001	-	1	Enquire
9A397B	LR125339	HEAT SHIELD - TURBOCHARGER	LR125339 HEAT SHIELD - TURBOCHARGER Rear, Turbocharger / From: LA000001	-	1	Enquire
9A397C	LR128151	HEAT SHIELD - TURBOCHARGER	LR128151 HEAT SHIELD - TURBOCHARGER Lower, Turbocharger / From: LA000001 / To: MA999999	-	1	Enquire
9A397C	LR128151	HEAT SHIELD - TURBOCHARGER	LR128151 HEAT SHIELD - TURBOCHARGER Lower, Turbocharger / From: NA700000 / To: NA799999	-	1	Enquire
9A397C	LR128151	HEAT SHIELD - TURBOCHARGER	LR128151 HEAT SHIELD - TURBOCHARGER Lower, Turbocharger / From: NA200000 / To: NA231084	-	1	Enquire
9A397C	LR174653	Heat Shield	LR174653 Heat Shield Lower, Turbocharger / From: NA231085 / To: NA699999	-	1	Enquire
9A397C	LR174653	Heat Shield	LR174653 Heat Shield Lower, Turbocharger / From: PA000001	-	1	Enquire
9A462A	LR125341	SHIELD - EXHAUST MANIFOLD HEAT	LR125341 SHIELD - EXHAUST MANIFOLD HEAT Exhaust Manifold, Rear / From: LA000001	-	1	Enquire
9A462B	LR125342	SHIELD - EXHAUST MANIFOLD HEAT	LR125342 SHIELD - EXHAUST MANIFOLD HEAT Exhaust Manifold, Front / From: LA000001	-	1	Enquire
9F472	LR125607	SENSOR - EXHAUST GAS - TEMPERATURE	LR125607 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature / From: LA000001	-	1	Enquire
9F918	LR128554	SENSOR - EXHAUST GAS PRESSURE	LR128554 SENSOR - EXHAUST GAS PRESSURE Complete Assembly / From: LA000001	-	1	Enquire
9J460	LR139306	SENSOR - EXHAUST GAS PRESSURE	LR139306 SENSOR - EXHAUST GAS PRESSURE Exhaust Gas Pressure / From: LA000001	-	1	Enquire
13A506	YQR000050	CLIP - WIRING	YQR000050 CLIP - WIRING From: LA000001	-	1	Enquire
14A705	LR138995	BRACKET	LR138995 BRACKET Wiring Harness / From: LA000001	-	1	Enquire
9448	LR125334	GASKET - EXHAUST MANIFOLD	LR125334 GASKET - EXHAUST MANIFOLD Heat Shield, Manifold To Cylinder Head / From: LA000001 / To: MA776191	-	1	Enquire
9448	LR154225	GASKET - EXHAUST MANIFOLD	LR154225 GASKET - EXHAUST MANIFOLD Heat Shield, Manifold To Cylinder Head / From: MA776192	-	1	Enquire
