Exhaust Fluid Injection System (Tank And Filler) (3.0L AJ20D6 Diesel High, With Diesel Exh Fluid Emission Tank) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Exhaust Fluid Injection System (Tank And Filler) (3.0L AJ20D6 Diesel High, With Diesel Exh Fluid...

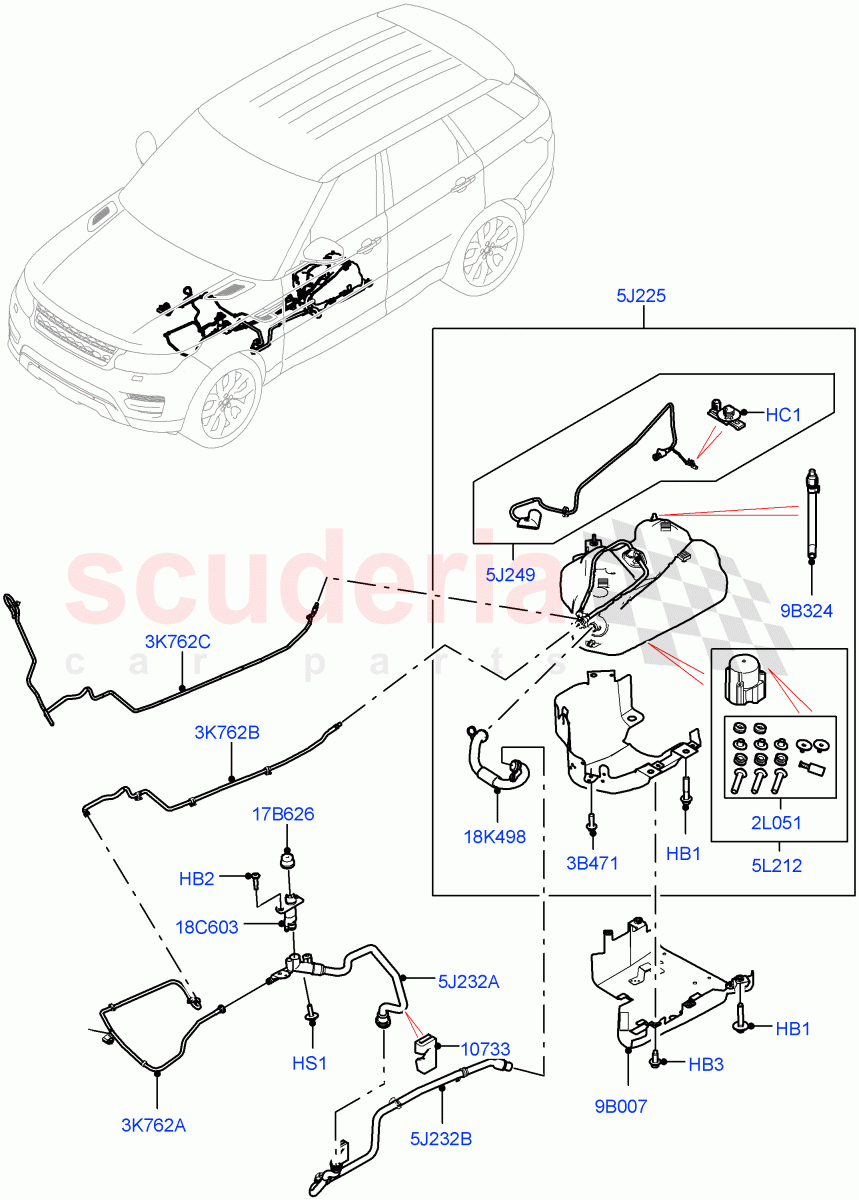

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR078393	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034354	BOLT - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500200	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036382	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101817	GROMMET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133194	KIT - FIXING PARTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104346	BOLT - HEX. HEAD - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125257	TANK&SHIELD - DIESEL EXHAUST FLUID	Enquire	To Order
	LR160434	TANK&SHIELD - DIESEL EXHAUST FLUID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111544	TUBE - DIESEL EXHAUST FLUID FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133195	PUMP - DIESEL EXHAUST FLUID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090186	SHIELD - TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104348	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078768	CAP - FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092720	PIPE - FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062403	HOSE - TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125260	TUBE - BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125259	TUBE - BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125261	PIPE - TANK VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071891	HOSE - TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071243	HOSE - TANK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR078393	BOLT AND WASHER - HEX.HEAD	LR078393 BOLT AND WASHER - HEX.HEAD Cradle To Body, M8 x 40MM / From: LA000001	-	5	Enquire
HB2	LR034354	BOLT - PAN - TORX	LR034354 BOLT - PAN - TORX Filler Neck, M6 x 19MM, Torx / From: LA000001	-	2	Enquire
HB3	RYG500200	BOLT	RYG500200 BOLT Hexagonal Head, M8 X 16MM / From: LA000001	-	3	Enquire
HC1	LR036382	CLIP	LR036382 CLIP 6.5 x 5MM / From: LA000001	-	1	Enquire
HS1	AYP500110	SCREW	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM / From: LA000001	-	2	Enquire
2L051	LR133194	KIT - FIXING PARTS	LR133194 KIT - FIXING PARTS To Pump / From: LA000001	-	1	Enquire
3B471	LR104346	BOLT - HEX. HEAD - FLANGED	LR104346 BOLT - HEX. HEAD - FLANGED From: LA000001	-	1	Enquire
3K762A	LR125260	TUBE - BREATHER	LR125260 TUBE - BREATHER Front / From: LA000001	-	1	Enquire
3K762B	LR125259	TUBE - BREATHER	LR125259 TUBE - BREATHER Centre / From: LA000001	-	1	Enquire
3K762C	LR125261	PIPE - TANK VENT	LR125261 PIPE - TANK VENT Vapour Line / From: LA000001	-	1	Enquire
5J225	LR125257	TANK&SHIELD - DIESEL EXHAUST FLUID	LR125257 TANK&SHIELD - DIESEL EXHAUST FLUID Complete Assembly / From: LA000001 / To: MA792243	-	1	Enquire
5J225	LR160434	TANK&SHIELD - DIESEL EXHAUST FLUID	LR160434 TANK&SHIELD - DIESEL EXHAUST FLUID Complete Assembly / From: MA792244	-	1	Enquire
5J232A	LR071891	HOSE - TANK	LR071891 HOSE - TANK Front, Pipe / From: LA000001	-	1	Enquire
5J232B	LR071243	HOSE - TANK	LR071243 HOSE - TANK Centre, Pipe / From: LA000001	-	1	Enquire
5J249	LR111544	TUBE - DIESEL EXHAUST FLUID FEED	LR111544 TUBE - DIESEL EXHAUST FLUID FEED Feed / From: LA000001	-	1	Enquire
5L212	LR133195	PUMP - DIESEL EXHAUST FLUID	LR133195 PUMP - DIESEL EXHAUST FLUID Kit Includes Fitting Parts, Service Kit / From: LA000001	-	1	Enquire
9B007	LR090186	SHIELD - TANK	LR090186 SHIELD - TANK With Fixing Parts / From: LA000001	-	1	Enquire
9B324	LR104348	TUBE - FUEL	LR104348 TUBE - FUEL From: LA000001	-	1	Enquire
17B626	LR078768	CAP - FILLER	LR078768 CAP - FILLER Filler Neck / From: LA000001	-	1	Enquire
18C603	LR092720	PIPE - FILLER	LR092720 PIPE - FILLER Filler Neck / From: LA000001	-	1	Enquire
18K498	LR062403	HOSE - TANK	LR062403 HOSE - TANK To Tank / From: LA000001	-	1	Enquire
10733	LR101817	GROMMET - WIRING	LR101817 GROMMET - WIRING From: LA000001	-	1	Enquire
