Radiator/Coolant Overflow Container (Intercooler Radiator, Water Charge Air Cooler) (3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Radiator/Coolant Overflow Container (Intercooler Radiator, Water Charge Air Cooler) (3.0L AJ20D6...

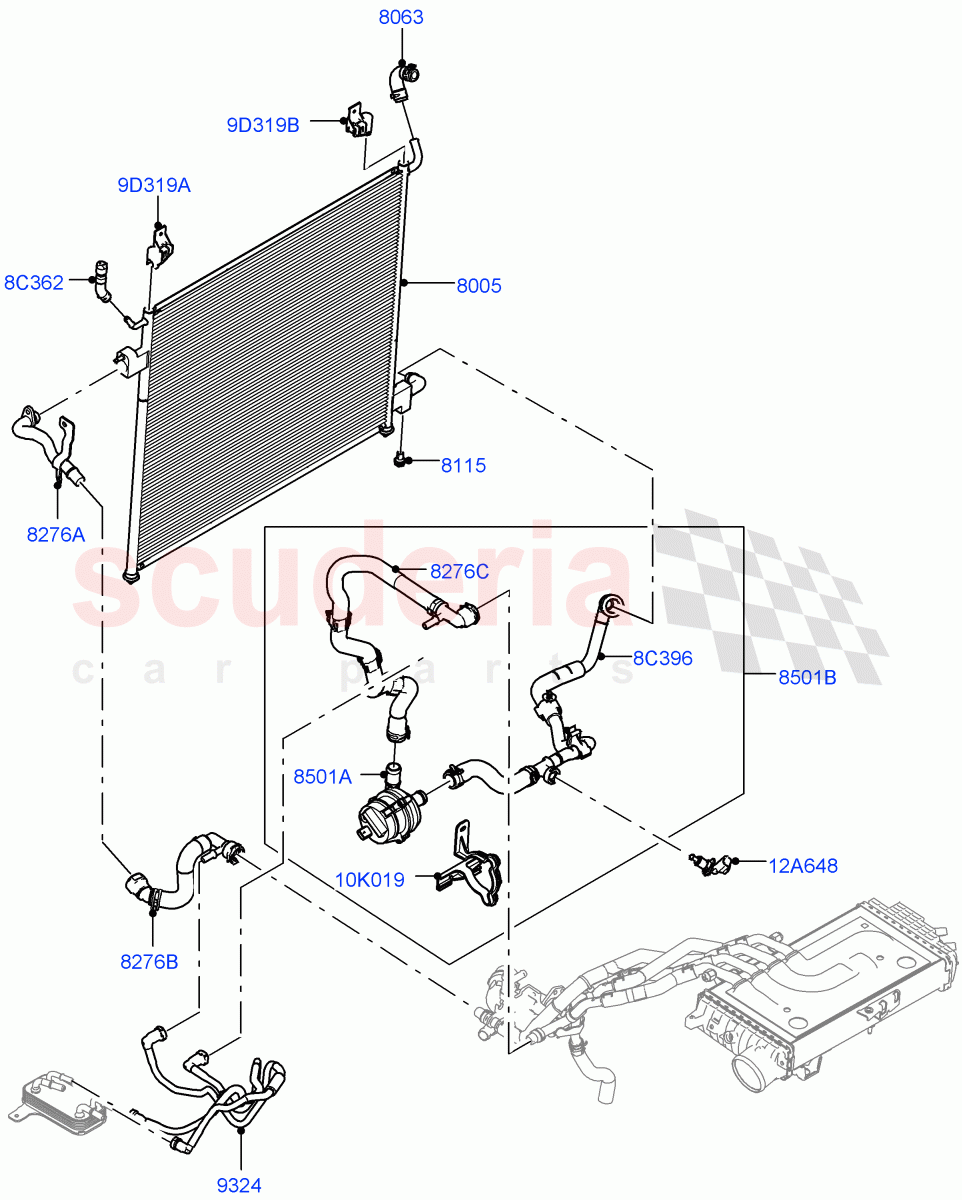

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR106644	RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063167	CONNECTION - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063055	PLUG - RADIATOR DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140906	HOSE - FUEL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062105	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137010	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139405	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139404	PUMP - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125297	PUMP - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062108	PIPE - FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137511	HOSE - WATER	Enquire	To Order
	LR154595	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128198	BRACKET - PUMP SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062427	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062429	BRACKET - RADIATOR UPPER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
8C362	LR062108	PIPE - FILLER	LR062108 PIPE - FILLER Fill, Tube / From: LA000001	-	1	Enquire
8C396	LR137511	HOSE - WATER	LR137511 HOSE - WATER From: LA000001 / To: MA791700	-	1	Enquire
8C396	LR154595	HOSE	LR154595 HOSE From: MA791701	-	1	Enquire
9D319A	LR062427	BRACKET - RADIATOR	LR062427 BRACKET - RADIATOR LH Upper / From: LA000001	-	1	Enquire
9D319B	LR062429	BRACKET - RADIATOR UPPER	LR062429 BRACKET - RADIATOR UPPER RH Upper / From: LA000001	-	1	Enquire
10K019	LR128198	BRACKET - PUMP SUPPORT	LR128198 BRACKET - PUMP SUPPORT From: LA000001	-	1	Enquire
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE From: LA000001	-	1	Enquire
8005	LR106644	RADIATOR	LR106644 RADIATOR From: LA000001	-	1	Enquire
8063	LR063167	CONNECTION - WATER	LR063167 CONNECTION - WATER Radiator Hose / From: LA000001	-	1	Enquire
8115	LR063055	PLUG - RADIATOR DRAIN	LR063055 PLUG - RADIATOR DRAIN From: LA000001	-	1	Enquire
8276A	LR062105	HOSE - WATER	LR062105 HOSE - WATER Inlet, Radiator / From: LA000001	-	1	Enquire
8276B	LR137010	HOSE - WATER	LR137010 HOSE - WATER To Thermostat / From: LA000001	-	1	Enquire
8276C	LR139405	HOSE - WATER	LR139405 HOSE - WATER Water Pump / From: LA000001	-	1	Enquire
8501A	LR139404	PUMP - WATER	LR139404 PUMP - WATER From: LA000001	-	1	Enquire
8501B	LR125297	PUMP - WATER	LR125297 PUMP - WATER Complete Assembly / From: LA000001	-	1	Enquire
9324	LR140906	HOSE - FUEL COOLER	LR140906 HOSE - FUEL COOLER From: LA000001	-	1	Enquire
