Air Cleaner (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Air Cleaner (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

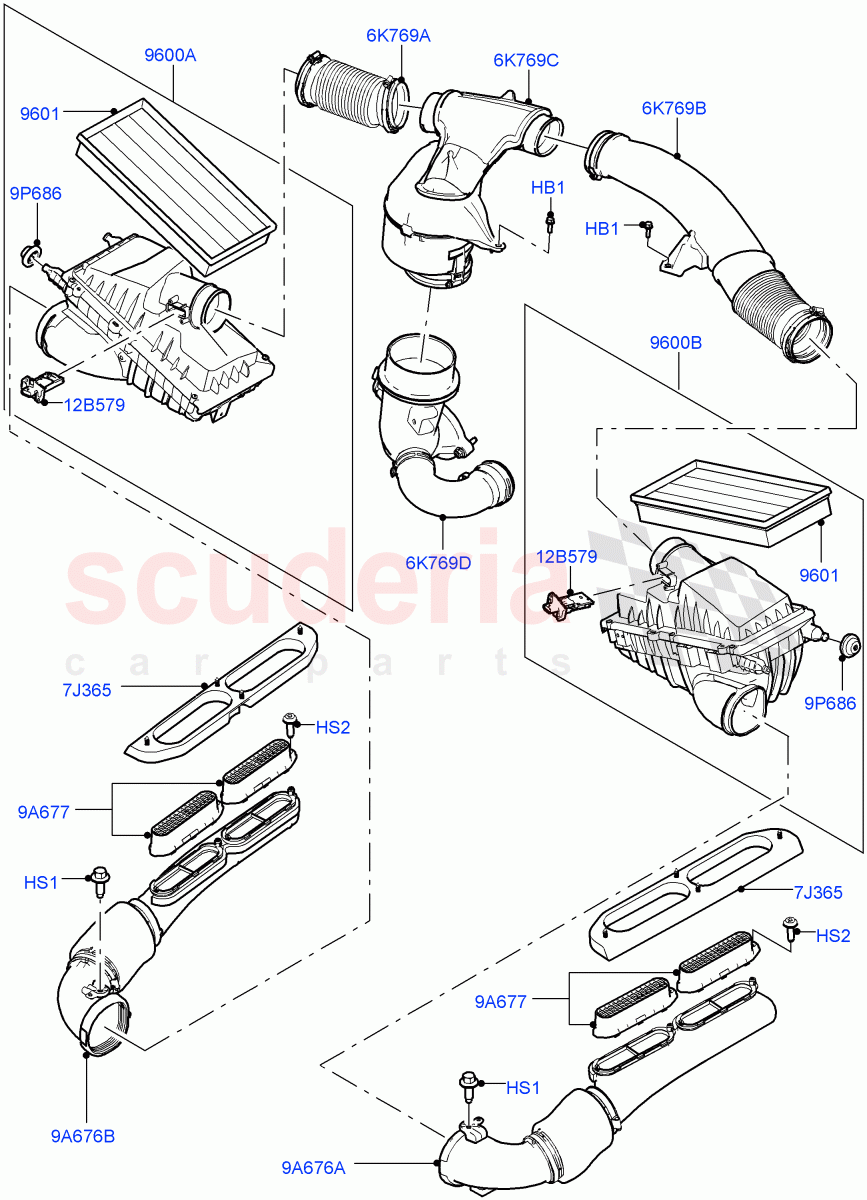

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR093829	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008793	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161843	FILTER - AIR CLEANER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111065	GUIDE - DIRTY AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122708	CLEANER - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125263	CLEANER - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113348	GRILLE - DIRTY AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000753	INSULATOR - AIR CLEANER HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093998	SENSOR - MASS AIR FLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127895	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125265	DUCT - AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125266	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127970	HOSE - COMPRESSED AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100435	DUCT - DIRTY AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049313	DUCT - DIRTY AIR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR093829	BOLT	LR093829 BOLT Hexagonal Head, M6 X 20MM / From: LA000001	-	2	Enquire
HS1	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM / From: LA000001	-	3	Enquire
HS2	LR008793	SCREW	LR008793 SCREW M5 X 16MM, Torx / From: LA000001	-	4	Enquire
6K769A	LR127895	DUCT - AIR	LR127895 DUCT - AIR RH / From: LA000001	-	1	Enquire
6K769B	LR125265	DUCT - AIR INTAKE	LR125265 DUCT - AIR INTAKE LH / From: LA000001	-	1	Enquire
6K769C	LR125266	DUCT - AIR	LR125266 DUCT - AIR Middle / From: LA000001	-	1	Enquire
6K769D	LR127970	HOSE - COMPRESSED AIR	LR127970 HOSE - COMPRESSED AIR Lower / From: LA000001	-	1	Enquire
7J365	LR111065	GUIDE - DIRTY AIR DUCT	LR111065 GUIDE - DIRTY AIR DUCT Dirty Air Duct, Mounted To Hood, RH/LH / From: LA000001	-	2	Enquire
9A676A	LR100435	DUCT - DIRTY AIR	LR100435 DUCT - DIRTY AIR LH / From: LA000001	-	1	Enquire
9A676B	LR049313	DUCT - DIRTY AIR	LR049313 DUCT - DIRTY AIR RH / From: LA000001	-	1	Enquire
9A677	LR113348	GRILLE - DIRTY AIR DUCT	LR113348 GRILLE - DIRTY AIR DUCT From: LA000001	-	4	Enquire
9P686	LR000753	INSULATOR - AIR CLEANER HOUSING	LR000753 INSULATOR - AIR CLEANER HOUSING Air Cleaner Box Holdown / From: LA000001	-	6	Enquire
12B579	LR093998	SENSOR - MASS AIR FLOW	LR093998 SENSOR - MASS AIR FLOW Mass Air Flow Sensor / From: LA000001	-	2	Enquire
9600A	LR122708	CLEANER - AIR	LR122708 CLEANER - AIR RH / From: LA000001	-	1	Enquire
9600B	LR125263	CLEANER - AIR	LR125263 CLEANER - AIR LH / From: LA000001	-	1	Enquire
9601	LR161843	FILTER - AIR CLEANER	LR161843 FILTER - AIR CLEANER From: LA000001	-	2	Enquire
