Cylinder Head (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Cylinder Head (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

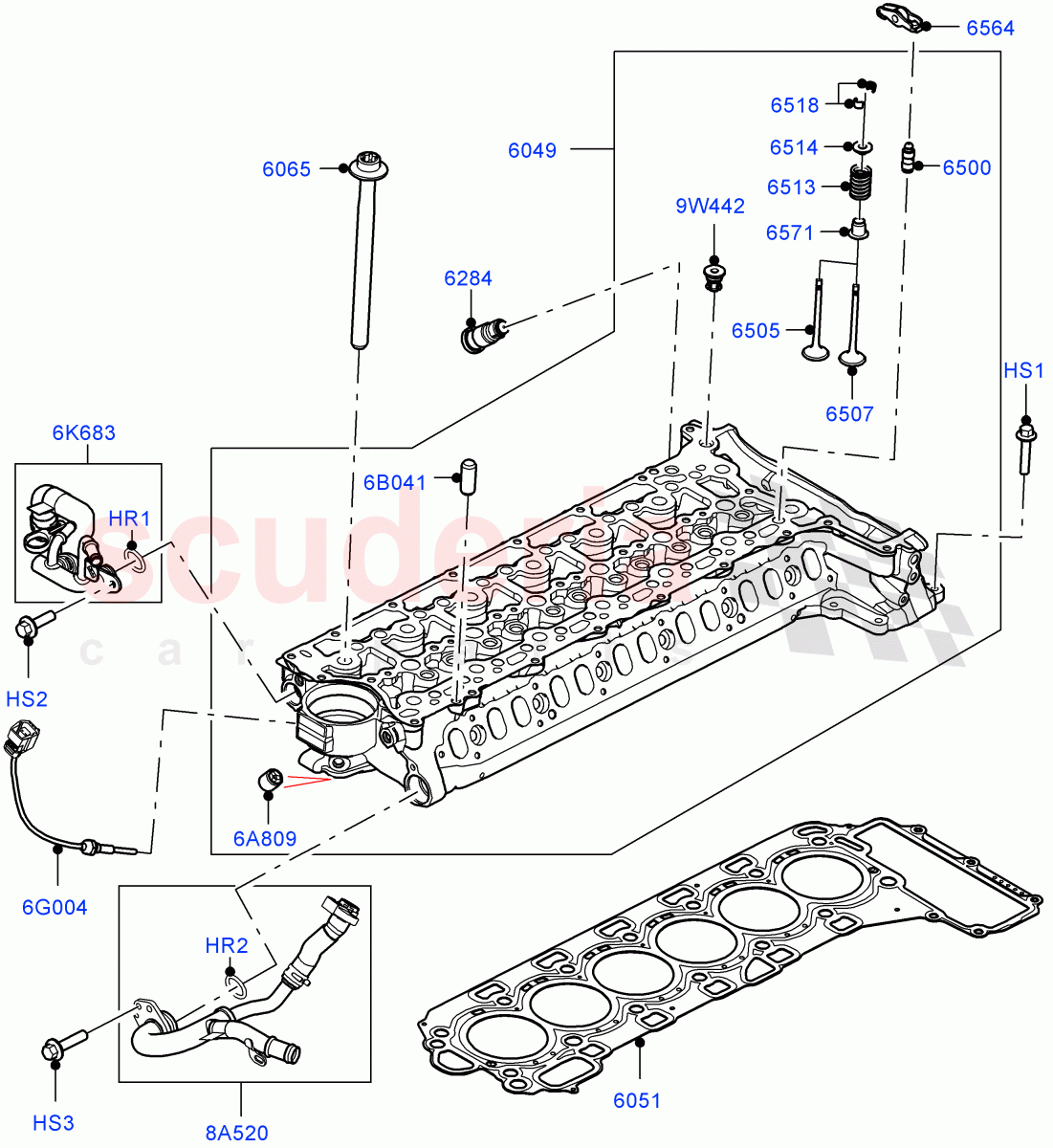

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR165690	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR165691	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125320	CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140102	GASKET-CYLINDER HEAD	Enquire	To Order
	LR140103	GASKET-CYLINDER HEAD	Enquire	To Order
	LR140104	GASKET-CYLINDER HEAD	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR125319	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125580	TENSIONER - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073777	TAPPET - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125590	VALVE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125591	VALVE - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125672	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073773	RETAINER - VALVE SPRING - UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073774	COLLET - VALVE SPRING RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073775	ARM - VALVE ROCKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073776	SEAL - VALVE STEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077674	VALVE - CHECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073651	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	Enquire	To Order
	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125479	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125490	TUBE - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073685	TUBE - DRAIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	LR165690	RING - SEALING	LR165690 RING - SEALING	-	1	Enquire
HR2	LR165691	RING - SEALING	LR165691 RING - SEALING LH Coolant Outlet,	-	1	Enquire
HS1	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM / From: LA000001	-	5	Enquire
HS2	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: LA000001	-	1	Enquire
HS3	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: LA000001	-	1	Enquire
6A809	LR077674	VALVE - CHECK	LR077674 VALVE - CHECK From: LA000001	-	1	Enquire
6B041	LR073651	DOWEL - PIN	LR073651 DOWEL - PIN 8 x 19MM / From: LA000001	-	2	Enquire
6G004	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	LR115083 SENSOR - CYLINDER HEAD TEMPERATURE Temperature / From: LA000001 / To: MA779323	-	1	Enquire
6G004	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	LR155114 SENSOR - CYLINDER HEAD TEMPERATURE Temperature / From: MA779324	-	1	Enquire
6K683	LR125479	HOSE - WATER	LR125479 HOSE - WATER RH Front / From: LA000001	-	1	Enquire
8A520	LR125490	TUBE - WATER OUTLET	LR125490 TUBE - WATER OUTLET LH Front / From: LA000001	-	1	Enquire
9W442	LR073685	TUBE - DRAIN	LR073685 TUBE - DRAIN Drain / From: LA000001	-	1	Enquire
6049	LR125320	CYLINDER HEAD	LR125320 CYLINDER HEAD With Valves / From: LA000001	-	1	Enquire
6051	LR140102	GASKET-CYLINDER HEAD	LR140102 GASKET-CYLINDER HEAD 0.90mm, Grade 1 / From: LA000001 / To: MA771830	-	1	Enquire
6051	LR140103	GASKET-CYLINDER HEAD	LR140103 GASKET-CYLINDER HEAD 1.00MM, Grade 2 / From: LA000001 / To: MA771830	-	1	Enquire
6051	LR140104	GASKET-CYLINDER HEAD	LR140104 GASKET-CYLINDER HEAD 1.10mm, Grade 3 / From: LA000001 / To: MA771830	-	1	Enquire
6051	LR140105	GASKET-CYLINDER HEAD	LR140105 GASKET-CYLINDER HEAD 1.20MM, Grade 4 / From: LA000001 / To: MA771830	-	1	Enquire
6051	LR140106	GASKET-CYLINDER HEAD	LR140106 GASKET-CYLINDER HEAD 1.30MM, Grade 5 / From: LA000001 / To: MA771830	-	1	Enquire
6051	LR151671	GASKET-CYLINDER HEAD	LR151671 GASKET-CYLINDER HEAD 0.90mm, Grade 1 / From: MA771831	-	1	Enquire
6051	LR151674	GASKET-CYLINDER HEAD	LR151674 GASKET-CYLINDER HEAD 1.00MM, Grade 2 / From: MA771831	-	1	Enquire
6051	LR151677	GASKET-CYLINDER HEAD	LR151677 GASKET-CYLINDER HEAD 1.10mm, Grade 3 / From: MA771831	-	1	Enquire
6051	LR151683	GASKET-CYLINDER HEAD	LR151683 GASKET-CYLINDER HEAD 1.20MM, Grade 4 / From: MA771831	-	1	Enquire
6051	LR151684	GASKET-CYLINDER HEAD	LR151684 GASKET-CYLINDER HEAD 1.30MM, Grade 5 / From: MA771831	-	1	Enquire
6065	LR125319	BOLT - HEX.HEAD	LR125319 BOLT - HEX.HEAD From: LA000001	-	14	Enquire
6284	LR125580	TENSIONER - TIMING CHAIN	LR125580 TENSIONER - TIMING CHAIN Secondary / From: LA000001	-	1	Enquire
6500	LR073777	TAPPET - VALVE	LR073777 TAPPET - VALVE From: LA000001	-	24	Enquire
6505	LR125590	VALVE - EXHAUST	LR125590 VALVE - EXHAUST From: LA000001	-	12	Enquire
6507	LR125591	VALVE - INLET	LR125591 VALVE - INLET From: LA000001	-	12	Enquire
6513	LR125672	SPRING - VALVE	LR125672 SPRING - VALVE From: LA000001	-	24	Enquire
6514	LR073773	RETAINER - VALVE SPRING - UPPER	LR073773 RETAINER - VALVE SPRING - UPPER From: LA000001	-	24	Enquire
6518	LR073774	COLLET - VALVE SPRING RETAINER	LR073774 COLLET - VALVE SPRING RETAINER From: LA000001	-	48	Enquire
6564	LR073775	ARM - VALVE ROCKER	LR073775 ARM - VALVE ROCKER From: LA000001	-	24	Enquire
6571	LR073776	SEAL - VALVE STEM	LR073776 SEAL - VALVE STEM From: LA000001	-	24	Enquire
