Pulleys And Drive Belts (3.0L Aj20D6 Diesel High, Electronic Air Suspension With Ace) ((V)...

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Pulleys And Drive Belts (3.0L AJ20D6 Diesel High, Electronic Air Suspension With ACE) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR085468 BOLT $3.44 To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT $3.62 IN STOCK
Photo Part No Description Price (each) Stock
FB108076 BOLT $0.59 To Order
Photo Part No Description Price (each) Stock
LR074131 PIN - RETAINING $2.98 To Order
Photo Part No Description Price (each) Stock
LR121747 PULLEY - CRANKSHAFT $285.40 To Order
Photo Part No Description Price (each) Stock
LR125248 IDLER - ACCESSORY DRIVE $73.25 To Order
Photo Part No Description Price (each) Stock
LR125252 CAP - IDLER PULLEY $3.86 To Order
Photo Part No Description Price (each) Stock
LR128565 TENSIONER $143.25 To Order
LR128565 TENSIONER $143.25 To Order
LR128565 TENSIONER $143.25 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138382 IDLER - DRIVE BELT $115.89 To Order
Photo Part No Description Price (each) Stock
LR125251 BELT - ACCESSORY DRIVE $43.60 To Order
Photo Part No Description Price (each) Stock
LR143702 BELT - ACCESSORY DRIVE $42.64 To Order
LR141491 BELT - ACCESSORY DRIVE $47.11 To Order
Photo Part No Description Price (each) Stock
LR125249 BRACKET - ARC PUMP $127.45 To Order
View All

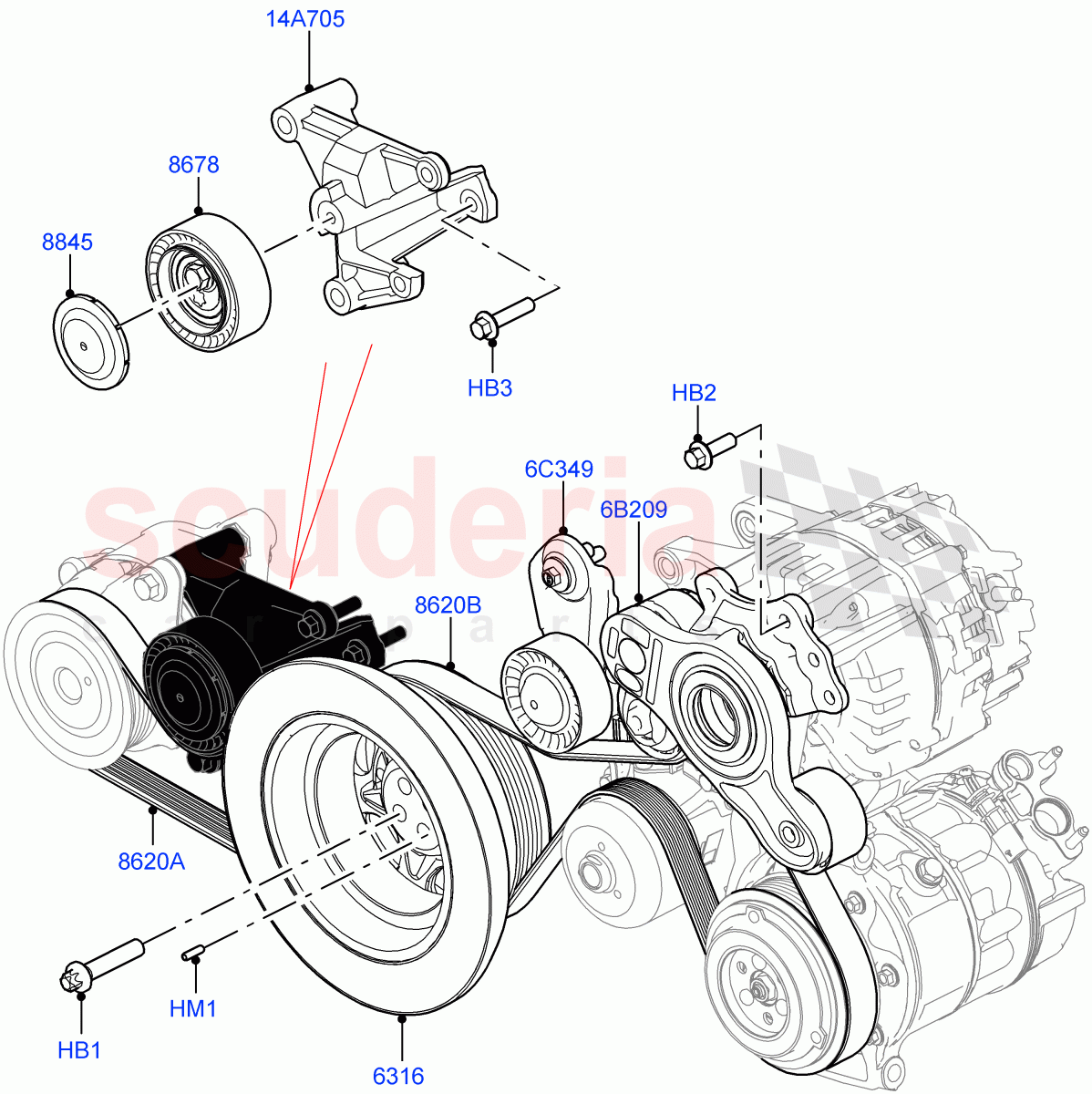

Pulleys And Drive Belts (3.0L AJ20D6 Diesel High, Electronic Air Suspension With ACE) ((V) FROMLA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR085468
BOLT
M10 x 48MM / From: LA000001 		$3.44 4
HB2 FS108256
BOLT
Hexagonal Head, M8 X 25MM / From: LA000001
IN STOCK 		$3.62 3
HB3 FB108076
BOLT
Bracket To Engine, M8 X 35MM / From: LA000001 		$0.59 3
HM1 LR074131
PIN - RETAINING 		$2.98 1
6B209 LR128565
TENSIONER
Primary Drive / From: LA000001 / To: MA999999 		$143.25 1
6B209 LR128565
TENSIONER
Primary Drive / From: NA700000 / To: NA799999 		$143.25 1
6B209 LR128565
TENSIONER
Primary Drive / From: NA200000 / To: NA227918 		$143.25 1
6B209 LR173137
TENSIONER - DRIVE BELT
Primary Drive / From: NA227919 / To: NA699999 		$135.92 1
6B209 LR173137
TENSIONER - DRIVE BELT
Primary Drive / From: PA000001 		$135.92 1
6C349 LR138382
IDLER - DRIVE BELT
From: LA000001 		$115.89 1
14A705 LR125249
BRACKET - ARC PUMP
ARC Pump / From: LA000001 		$127.45 1
6316 LR121747
PULLEY - CRANKSHAFT
From: LA000001 		$285.40 1
8620A LR125251
BELT - ACCESSORY DRIVE
ARC Pump / From: LA000001 		$43.60 1
8620B LR143702
BELT - ACCESSORY DRIVE
Electric Engine Battery-MHEV / Primary Drive / From: LA000001 		$42.64 1
8620B LR141491
BELT - ACCESSORY DRIVE
Less Electric Engine Battery / Primary Drive / From: LA000001 		$47.11 1
8678 LR125248
IDLER - ACCESSORY DRIVE
ARC Pump Belt, Pulley / From: LA000001 		$73.25 1
8845 LR125252
CAP - IDLER PULLEY
From: LA000001 		$3.86 1
