Console - Floor (For Carrier Assy, Front, External Components)

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Console - Floor (For Carrier Assy, Front, External Components)

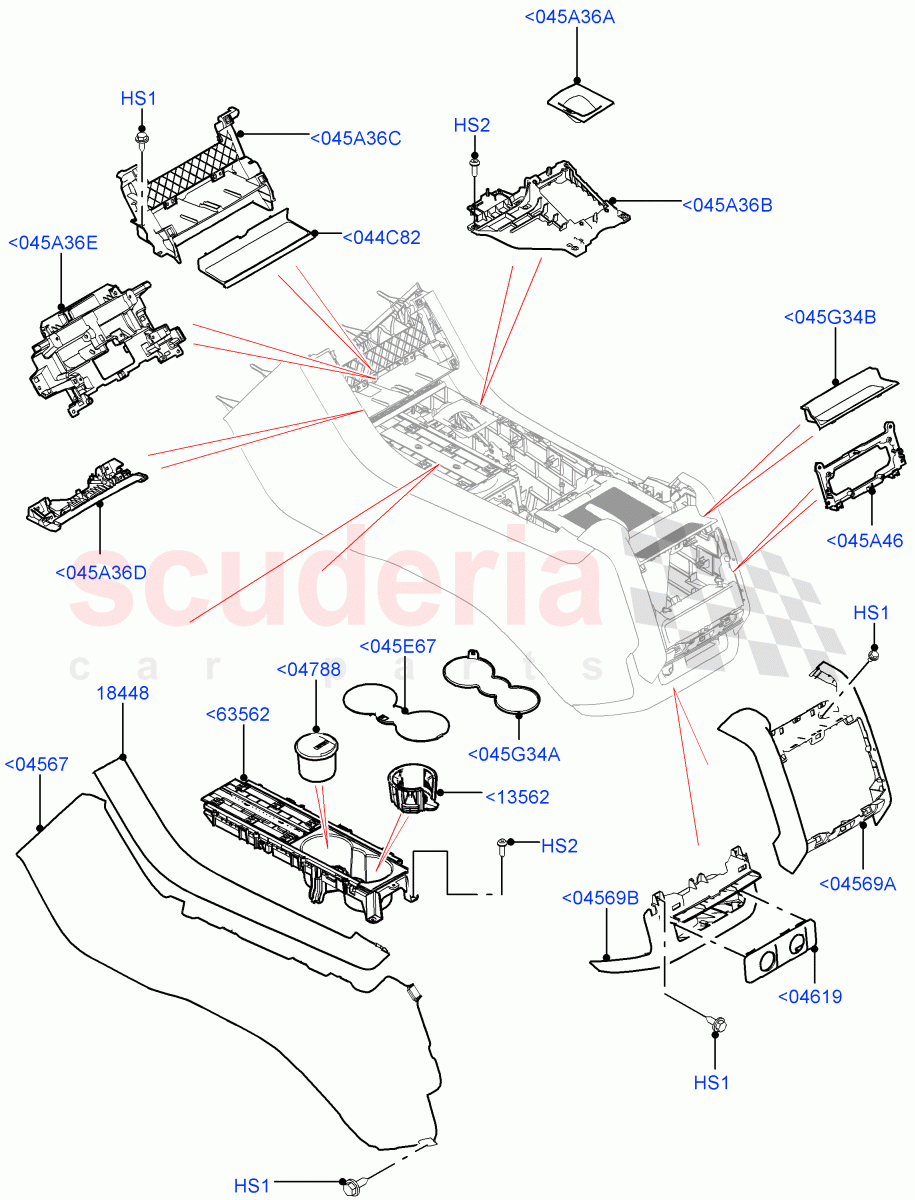

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YYP500110 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
LR008793 SCREW $0.95 To Order
Photo Part No Description Price (each) Stock
LR044981 FINISHER - CENTRE FLOOR CONSOLE $230.88 To Order
LR044980 FINISHER - CENTRE FLOOR CONSOLE $244.94 To Order
LR060169 FINISHER - CENTRE FLOOR CONSOLE $244.94 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR044992 PANEL - CONSOLE SIDE $669.61 To Order
LR044993 PANEL - CONSOLE SIDE $669.61 To Order
LR044994 PANEL - CONSOLE SIDE $669.61 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR101656 BEZEL - USB PORT $58.46 To Order
LR160030 BEZEL - USB PORT $63.60 To Order
LR164876 BEZEL - USB PORT $63.60 To Order
Photo Part No Description Price (each) Stock
LR047559 ASH RECEPTACLE - CONSOLE $27.84 To Order
LR055830 ASH RECEPTACLE - CONSOLE $82.62 To Order
LR067410 ASH RECEPTACLE - CONSOLE $63.86 To Order
Photo Part No Description Price (each) Stock
LR021330 HOLDER - CUP $27.53 To Order
LR087454 HOLDER - CUP $29.28 To Order
Photo Part No Description Price (each) Stock
LR044988 HOLDER - CUP $130.29 To Order
LR044989 HOLDER - CUP $130.29 To Order
LR054752 HOLDER - CUP $150.15 To Order
...and 12 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR044979 TRAY - CONSOLE $50.49 To Order
Photo Part No Description Price (each) Stock
LR045001 PANEL - CONSOLE - END FINISHER $219.89 To Order
LR055989 PANEL - CONSOLE - END FINISHER $219.89 To Order
LR100317 PANEL - CONSOLE - END FINISHER $182.53 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR100316 PANEL - CONSOLE $200.76 To Order
LR044984 PANEL - CONSOLE $164.40 To Order
LR044984 PANEL - CONSOLE $164.40 To Order
Photo Part No Description Price (each) Stock
LR100326 BRACKET - CONSOLE $218.08 To Order
LR100326 BRACKET - CONSOLE $218.08 To Order
Photo Part No Description Price (each) Stock
LR039561 INSERT - CUPHOLDER COVER $27.04 To Order
Photo Part No Description Price (each) Stock
LR044986 PANEL - CONSOLE $51.60 To Order
LR100323 PANEL - CONSOLE $46.60 To Order
LR115122 PANEL - CONSOLE $44.68 To Order
Photo Part No Description Price (each) Stock
LR044999 PANEL - CONSOLE $109.26 To Order
LR045000 PANEL - CONSOLE $109.26 To Order
LR100327 PANEL - CONSOLE $188.76 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR044985 PANEL - CONSOLE - CENTRE FINISHER $78.60 To Order
LR068108 PANEL - CONSOLE - CENTRE FINISHER $71.91 To Order
Photo Part No Description Price (each) Stock
LR100295 MOULDING - INSTRUMENT PANEL $129.68 To Order
Photo Part No Description Price (each) Stock
LR136761 PANEL - CONSOLE - CENTRE FINISHER $63.28 To Order
Photo Part No Description Price (each) Stock
LR116781 MAT - CONSOLE STOWAGE $32.01 To Order
LR161886 MAT - CONSOLE STOWAGE $32.01 To Order
Photo Part No Description Price (each) Stock
LR044987 MAT - CONSOLE STOWAGE $26.16 To Order
LR055398 MAT - CONSOLE STOWAGE $28.77 To Order
LR106962 MAT - CONSOLE STOWAGE $7.55 To Order
View All
Console - Floor (For Carrier Assy, Front, External Components) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<044C82 LR044979
TRAY - CONSOLE
Upper / To: HA999999 		$50.49 1
<045A36A LR044986
PANEL - CONSOLE
Panel - Console Centre Finisher / To: HA999999 		$51.60 1
<045A36A LR100323
PANEL - CONSOLE
Panel - Console Centre Finisher / From: JA000001 / To: JA190803 		$46.60 1
<045A36A LR115122
PANEL - CONSOLE
Panel - Console Centre Finisher / From: JA190804 		$44.68 1
<045A36B LR044999
PANEL - CONSOLE
RHD / RH / To: HA999999 		$109.26 1
<045A36B LR045000
PANEL - CONSOLE
LHD / LH / To: HA999999 		$109.26 1
<045A36B LR100327
PANEL - CONSOLE
RHD / RH / From: JA000001 		$188.76 1
<045A36B LR100328
PANEL - CONSOLE
LHD / LH / From: JA000001 		$210.43 1
<045A36C LR044985
PANEL - CONSOLE - CENTRE FINISHER
Front, Upper / To: FA510179 		$78.60 1
<045A36C LR068108
PANEL - CONSOLE - CENTRE FINISHER
Front, Upper / From: FA510180 / To: HA999999 		$71.91 1
<045A36D LR100295
MOULDING - INSTRUMENT PANEL
From: JA000001 		$129.68 1
<045A36E LR136761
PANEL - CONSOLE - CENTRE FINISHER
Front, Upper / From: JA000001 		$63.28 1
<045A46 LR100326
BRACKET - CONSOLE
Premium Air Con Hybrid Front/Rear / From: JA000001 / To: JA999999 		$218.08 1
<045A46 LR100326
BRACKET - CONSOLE
Premium Air Conditioning-Front/Rear / From: KA000001 		$218.08 1
<045E67 LR039561
INSERT - CUPHOLDER COVER
Access Hole Cover 		$27.04 1
<045G34A LR116781
MAT - CONSOLE STOWAGE
Cup Holder / From: JA000001 / To: NA210389 		$32.01 1
<045G34A LR161886
MAT - CONSOLE STOWAGE
Cup Holder / From: NA210390 		$32.01 1
<045G34B LR044987
MAT - CONSOLE STOWAGE
Rear, Upper / To: EA325046 		$26.16 1
<045G34B LR055398
MAT - CONSOLE STOWAGE
Rear, Upper / From: EA325047 / To: JA181809 		$28.77 1
<045G34B LR106962
MAT - CONSOLE STOWAGE
Rear, Upper / From: JA181810 		$7.55 1
<04567 LR044992
PANEL - CONSOLE SIDE
I/P Facia Contrast-Espresso/Ivory / RH / To: EA304552 		$669.61 1
<04567 LR044993
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony/Ivory / RH / To: EA304552 		$669.61 1
<04567 LR044994
PANEL - CONSOLE SIDE
I/P Facia Contrast-Espresso/Almond / RH / To: EA304552 		$669.61 1
<04567 LR044995
PANEL - CONSOLE SIDE
I/P Facia Contrast-Espresso/Ivory / LH / To: EA304552 		$669.61 1
<04567 LR044996
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony/Ivory / LH / To: EA304552 		$669.61 1
<04567 LR044997
PANEL - CONSOLE SIDE
I/P Facia Contrast-Espresso/Almond / LH / To: EA304552 		$669.61 1
<04567 LR055222
PANEL - CONSOLE SIDE
I/P Facia Contrast-Espresso/Ivory / RH / From: EA304553 / To: HA999999 		$557.42 1
<04567 LR055223
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony/Cirrus / RH / From: EA304553 / To: HA999999 		$669.61 1
<04567 LR055224
PANEL - CONSOLE SIDE
I/P Facia Contrast-Espresso/Almond / RH / From: EA304553 / To: HA999999 		$601.24 1
<04567 LR055225
PANEL - CONSOLE SIDE
I/P Facia Contrast-Espresso/Ivory / LH / From: EA304553 / To: HA999999 		$553.40 1
<04567 LR055226
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony/Cirrus / LH / From: EA304553 / To: HA999999 		$669.61 1
<04567 LR055227
PANEL - CONSOLE SIDE
I/P Facia Contrast-Espresso/Almond / LH / From: EA304553 / To: HA999999 		$579.72 1
<04567 LR055223
PANEL - CONSOLE SIDE
Int Ebony Carpet / RH / From: JA000001 		$669.61 1
<04567 LR055226
PANEL - CONSOLE SIDE
Int Ebony Carpet / LH / From: JA000001 		$669.61 1
<04567 LR104438
PANEL - CONSOLE SIDE
Interior Espresso Carpet / RH / From: JA000001 		$608.72 1
<04567 LR104439
PANEL - CONSOLE SIDE
Interior Espresso Carpet / LH / From: JA000001 		$559.50 1
<04569A LR045001
PANEL - CONSOLE - END FINISHER
Upper / To: EA305802 		$219.89 1
<04569A LR055989
PANEL - CONSOLE - END FINISHER
Upper / From: EA305803 / To: HA999999 		$219.89 1
<04569A LR100317
PANEL - CONSOLE - END FINISHER
Upper / From: JA000001 / To: KA416812 		$182.53 1
<04569A LR116757
PANEL - CONSOLE - END FINISHER
Upper / From: KA416813 		$193.04 1
<04569B LR100316
PANEL - CONSOLE
Power Point Plug 230V UK / Lower / From: JA000001 		$200.76 1
<04569B LR044984
PANEL - CONSOLE
Lower / To: HA999999 		$164.40 1
<04569B LR044984
PANEL - CONSOLE
Less Power Point Plug-Luggage / Lower / From: JA000001 		$164.40 1
<04619 LR101656
BEZEL - USB PORT
Less Rear Entertainment Screen / From: JA000001 / To: MA794388 		$58.46 1
<04619 LR160030
BEZEL - USB PORT
Less Rear Entertainment Screen / From: MA794389 / To: NA207698 		$63.60 1
<04619 LR164876
BEZEL - USB PORT
Less Rear Entertainment Screen / From: NA207699 		$63.60 1
<04788 LR047559
ASH RECEPTACLE - CONSOLE
With Smokers Package / To: EA380497 		$27.84 1
<04788 LR055830
ASH RECEPTACLE - CONSOLE
With Smokers Package / From: EA380498 / To: EA395267 		$82.62 1
<04788 LR067410
ASH RECEPTACLE - CONSOLE
With Smokers Package / From: EA395268 		$63.86 1
<13562 LR021330
HOLDER - CUP
To: GA659739 		$27.53 2
<13562 LR087454
HOLDER - CUP
From: GA659740 		$29.28 2
<63562 LR044988
HOLDER - CUP
LHD / RH / To: EA301197 		$130.29 1
<63562 LR044989
HOLDER - CUP
RHD / LH / To: EA301197 		$130.29 1
<63562 LR054752
HOLDER - CUP
LHD / RH / From: EA301198 / To: HA124864 		$150.15 1
<63562 LR054751
HOLDER - CUP
RHD / LH / From: EA301198 / To: HA124864 		$118.43 1
<63562 LR095480
HOLDER - CUP
LHD / RH / From: HA124865 / To: HA999999 		$144.37 1
<63562 LR095479
HOLDER - CUP
RHD / LH / From: HA124865 / To: HA999999 		$124.91 1
<63562 LR110357
HOLDER - CUP
RHD / From: JA000001 / To: JA408257 		$273.15 1
<63562 LR110355
HOLDER - CUP
LHD, Less Head Impact Crash Criteria / From: JA000001 / To: JA408257 		$258.33 1
<63562 LR110356
HOLDER - CUP
LHD, With Head Impact Crash Criteria / From: JA000001 / To: JA408257 		$258.33 1
<63562 LR116502
HOLDER - CUP
LHD, Less Head Impact Crash Criteria / From: JA408258 / To: NA210389 		$227.07 1
<63562 LR116504
HOLDER - CUP
RHD / From: JA408258 / To: NA210389 		$262.06 1
<63562 LR116503
HOLDER - CUP
LHD, With Head Impact Crash Criteria / From: JA408258 / To: NA210389 		$241.38 1
<63562 LR159344
HOLDER - CUP
LHD, With Head Impact Crash Criteria / From: NA210390 		$270.03 1
<63562 LR159345
HOLDER - CUP
LHD, Less Head Impact Crash Criteria / From: NA210390 		$268.41 1
<63562 LR159346
HOLDER - CUP
RHD / From: NA210390 		$268.41 1
HS1 YYP500110
SCREW
M8 X 16MM, Self Tapping 		$0.42 10
HS2 LR008793
SCREW
M5 X 16MM, Torx 		$0.95 15
18448 LR044981
FINISHER - CENTRE FLOOR CONSOLE
LH, Floor Console, Side Finisher / To: EA362927 		$230.88 1
18448 LR044980
FINISHER - CENTRE FLOOR CONSOLE
RH, Floor Console, Side Finisher / To: EA362927 		$244.94 1
18448 LR060169
FINISHER - CENTRE FLOOR CONSOLE
RH, Floor Console, Side Finisher / From: EA362928 / To: HA999999 		$244.94 1
18448 LR060156
FINISHER - CENTRE FLOOR CONSOLE
LH, Floor Console, Side Finisher / From: EA362928 / To: HA999999 		$244.94 1
18448 LR100318
FINISHER - CENTRE FLOOR CONSOLE
Ambient Lighting-High Line Interior / RH, Floor Console, Side Finisher / From: JA000001 / To: JA411921 		$222.67 1
18448 LR100319
FINISHER - CENTRE FLOOR CONSOLE
Configurable Ambient Lighting / RH, Floor Console, Side Finisher / From: JA000001 / To: JA411921 		$423.29 1
18448 LR100321
FINISHER - CENTRE FLOOR CONSOLE
Ambient Lighting-High Line Interior / LH, Floor Console, Side Finisher / From: JA000001 / To: JA411921 		$214.05 1
18448 LR100320
FINISHER - CENTRE FLOOR CONSOLE
Configurable Ambient Lighting / LH, Floor Console, Side Finisher / From: JA000001 / To: JA411921 		$512.22 1
18448 LR117608
FINISHER - CENTRE FLOOR CONSOLE
Ambient Lighting-High Line Interior / RH, Floor Console, Side Finisher / From: JA411922 		$222.67 1
18448 LR117610
FINISHER - CENTRE FLOOR CONSOLE
Ambient Lighting-High Line Interior / LH, Floor Console, Side Finisher / From: JA411922 		$222.67 1
18448 LR117609
FINISHER - CENTRE FLOOR CONSOLE
Configurable Ambient Lighting / RH, Floor Console, Side Finisher / From: JA411922 		$492.51 1
18448 LR117611
FINISHER - CENTRE FLOOR CONSOLE
Configurable Ambient Lighting / LH, Floor Console, Side Finisher / From: JA411922 		$492.51 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
