Starter Motor (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Starter Motor (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

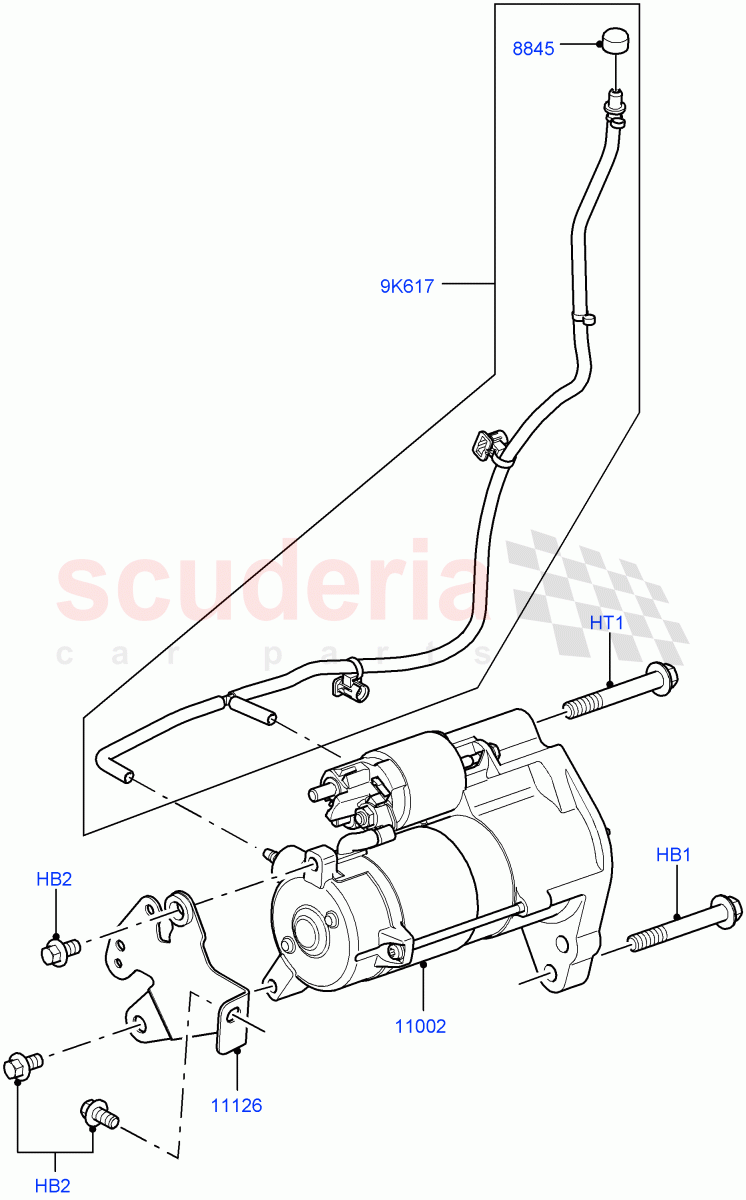

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB110156	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017279	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054367	CAP - BREATHER TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043924	STARTER MOTOR	Enquire	To Order
	LR056981	STARTER MOTOR	Enquire	To Order
	LR066996	STARTER MOTOR	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR038772	BRACKET - STARTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052680	Tube - Breather	Enquire	To Order
	LR056500	TUBE - BREATHER	Enquire	To Order
	LR077368	TUBE - BREATHER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FB110156	BOLT - HEX.HEAD	FB110156 BOLT - HEX.HEAD Hexagonal Head, M10 x 75MM	-	1	Enquire
HB2	FS108206	BOLT	FS108206 BOLT Hexagonal Head, M8 X 20MM	-	3	Enquire
HT1	LR017279	STUD	LR017279 STUD M10 x 75MM, M6 X 16MM	-	1	Enquire
9K617	LR052680	Tube - Breather	LR052680 Tube - Breather Complete / To: EA314013	-	1	Enquire
9K617	LR056500	TUBE - BREATHER	LR056500 TUBE - BREATHER Complete / From: EA314014 / To: FA524008	-	1	Enquire
9K617	LR077368	TUBE - BREATHER	LR077368 TUBE - BREATHER Complete / From: FA524009 / To: GA999999	-	1	Enquire
9K617	LR085982	TUBE - BREATHER	LR085982 TUBE - BREATHER Complete / From: HA000001	-	1	Enquire
8845	LR054367	CAP - BREATHER TUBE	LR054367 CAP - BREATHER TUBE Breather Pipe	-	1	Enquire
11002	LR043924	STARTER MOTOR	LR043924 STARTER MOTOR Standard Electric Starter Motor / To: EA312350	-	1	Enquire
11002	LR056981	STARTER MOTOR	LR056981 STARTER MOTOR Standard Electric Starter Motor / From: EA312351 / To: EA394986	-	1	Enquire
11002	LR066996	STARTER MOTOR	LR066996 STARTER MOTOR Standard Electric Starter Motor / From: EA394987 / To: FA999999	-	1	Enquire
11002	LR061894	STARTER MOTOR	LR061894 STARTER MOTOR 3.0 V6 D Gen2 Twin Turbo, Starter - Stop/Start System / From: FA000001 / To: GA558970	-	1	Enquire
11002	LR034027	STARTER MOTOR	LR034027 STARTER MOTOR 3.0L 24V DOHC V6 TC Diesel, Starter - Stop/Start System / To: GA568374	-	1	Enquire
11002	LR080299	STARTER MOTOR	LR080299 STARTER MOTOR Standard Electric Starter Motor / From: GA000001	-	1	Enquire
11002	LR080292	STARTER MOTOR	LR080292 STARTER MOTOR 3.0 V6 D Gen2 Twin Turbo, Starter - Stop/Start System / From: GA558971	-	1	Enquire
11002	LR080305	STARTER MOTOR	LR080305 STARTER MOTOR 3.0L 24V V6 Turbo Diesel Std Flow, Starter - Stop/Start System / From: GA568375	-	1	Enquire
11126	LR038772	BRACKET - STARTER MOTOR	LR038772 BRACKET - STARTER MOTOR Starter Motor Support Bracket	-	1	Enquire
