Fuel Injectors And Pipes (Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Fuel Injectors And Pipes (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR032108 BOLT - FUEL INJECTOR $1.80 To Order
Photo Part No Description Price (each) Stock
1305834 BOLT $2.19 To Order
Photo Part No Description Price (each) Stock
FS108252 BOLT - HEX.HEAD $0.74 To Order
Photo Part No Description Price (each) Stock
FN106042 NUT $1.04 IN STOCK
Photo Part No Description Price (each) Stock
LR054612 O-RING $4.66 IN STOCK
Photo Part No Description Price (each) Stock
LR022992 O-RING $4.62 IN STOCK
Photo Part No Description Price (each) Stock
LR000621 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
LR013176 BRACKET - FUEL LINES $14.53 To Order
Photo Part No Description Price (each) Stock
LR007521 WIRE - GLOW PLUG $108.86 To Order
LR007522 WIRE - GLOW PLUG $108.86 To Order
LR062008 WIRE - GLOW PLUG $119.43 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR002751 CLIP $1.74 To Order
Photo Part No Description Price (each) Stock
LR032817 CLAMP - FUEL INJECTION $34.14 To Order
Photo Part No Description Price (each) Stock
LR072253 TUBE - FUEL $44.44 To Order
LR072253 TUBE - FUEL $44.44 To Order
LR072252 TUBE - FUEL $38.66 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013483 BRACKET - FUEL LINES $19.80 To Order
Photo Part No Description Price (each) Stock
LR032818 WASHER - SEALING $2.98 IN STOCK
Photo Part No Description Price (each) Stock
LR014205 INJECTOR - FUEL $774.79 To Order
LR063300 INJECTOR - FUEL $725.72 To Order
LR069236 INJECTOR - FUEL $839.46 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR031485 KIT - FUEL INJECTION $889.24 To Order
LR031486 KIT - FUEL INJECTION $805.55 To Order
LR031487 KIT - FUEL INJECTION $836.23 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR032107 TUBE - INJECTION PUMP LEAK-OFF $152.30 To Order
Photo Part No Description Price (each) Stock
LR021871 TUBE - FUEL RETURN $177.76 To Order
Photo Part No Description Price (each) Stock
LR017436 KIT - INJECTOR REFIT $128.88 To Order
LR017437 KIT - INJECTOR REFIT $130.00 To Order
LR017438 KIT - INJECTOR REFIT $124.67 To Order
Photo Part No Description Price (each) Stock
LR013195 BRACKET - FUEL RAIL $27.58 To Order
Photo Part No Description Price (each) Stock
LR013275 GLOW PLUG $81.92 To Order
Photo Part No Description Price (each) Stock
LR013482 PIPE - FUEL $76.73 To Order
Photo Part No Description Price (each) Stock
LR013481 PIPE - FUEL $53.72 To Order
Photo Part No Description Price (each) Stock
LR059808 PIPE - FUEL $46.08 To Order
LR059808 PIPE - FUEL $46.08 To Order
Photo Part No Description Price (each) Stock
LR040877 MANIFOLD - FUEL SUPPLY $445.11 To Order
Photo Part No Description Price (each) Stock
LR164041 MANIFOLD - FUEL SUPPLY $434.61 To Order
LR164041 MANIFOLD - FUEL SUPPLY $434.61 To Order
LR164041 MANIFOLD - FUEL SUPPLY $434.61 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138416 INSULATOR - FUEL INJECTORS $27.95 To Order
LR138417 INSULATOR - FUEL INJECTORS $27.95 To Order
LR022120 INSULATOR - FUEL INJECTORS $27.95 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014223 INSULATOR - FUEL INJECTORS $36.14 To Order
LR014224 INSULATOR - FUEL INJECTORS $36.14 To Order
View All

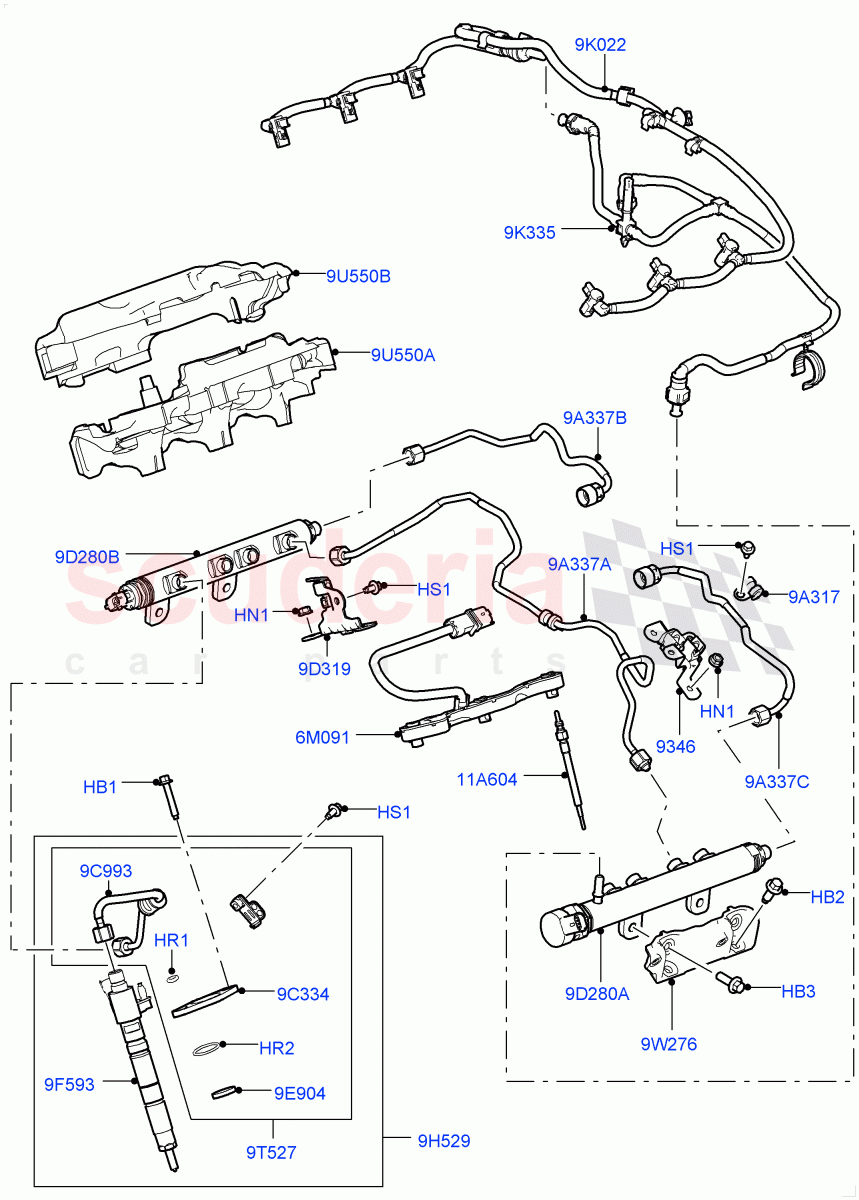

Fuel Injectors And Pipes (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR032108
BOLT - FUEL INJECTOR
M6 x 35MM, To Fuel Injectors 		$1.80 12
HB2 1305834
BOLT
Bracket, Fuel Rail, M8 X 20MM 		$2.19 4
HB3 FS108252
BOLT - HEX.HEAD
Bracket, Fuel Rail, Hexagonal Head, M8 X 25MM 		$0.74 4
HN1 FN106042
NUT
Bracket, For Fuel Tube, Hexagonal Head, M6
IN STOCK 		$1.04 4
HR1 LR054612
O-RING
Lower, O-Ring Seal For Fuel Return Tube
IN STOCK 		$4.66 6
HR2 LR022992
O-RING
Lower
IN STOCK 		$4.62 6
HS1 LR000621
SCREW
Bracket, For Fuel Tube, M6 X 10MM 		$0.62 5
6M091 LR007521
WIRE - GLOW PLUG
3.0L 24V DOHC V6 TC Diesel / LH / To: EA999999 		$108.86 1
6M091 LR007522
WIRE - GLOW PLUG
RH / To: EA999999 		$108.86 1
6M091 LR062008
WIRE - GLOW PLUG
3.0 V6 D Gen2 Mono Turbo / LH / From: FA000001 / To: HA999999 		$119.43 1
6M091 LR066519
WIRE - GLOW PLUG
RH / From: FA000001 / To: FA999999 		$149.02 1
6M091 LR066518
WIRE - GLOW PLUG
3.0 V6 Diesel Electric Hybrid Eng / LH / From: FA000001 / To: FA999999 		$149.02 1
6M091 LR078808
WIRE - GLOW PLUG
3.0 V6 Diesel Electric Hybrid Eng / LH / From: GA000001 / To: GA110589 		$98.75 1
6M091 LR078879
WIRE - GLOW PLUG
RH / From: GA000001 / To: GA110589 		$98.75 1
6M091 LR093072
WIRE - GLOW PLUG
3.0L 24V DOHC V6 TC Diesel / LH / From: GA110590 		$94.93 1
6M091 LR093066
WIRE - GLOW PLUG
RH / From: GA110590 / To: HA999999 		$109.01 1
6M091 LR110461
WIRE - GLOW PLUG
3.0 V6 D Gen2 Twin Turbo / LH / From: JA000001 		$171.93 1
6M091 LR110616
WIRE - GLOW PLUG
RH / From: JA000001 		$177.22 1
9A317 LR002751
CLIP
Fuel Lines To Fuel Rail 		$1.74 2
9A337A LR013482
PIPE - FUEL
Balance Pipe 		$76.73 1
9A337B LR013481
PIPE - FUEL
RH, Fuel Lines To Fuel Rail 		$53.72 1
9A337C LR059808
PIPE - FUEL
LH, Fuel Lines To Fuel Rail / To: DA999999 		$46.08 1
9A337C LR059808
PIPE - FUEL
LH, Fuel Lines To Fuel Rail / From: EA000001 		$46.08 1
9C334 LR032817
CLAMP - FUEL INJECTION
Fuel Injector 		$34.14 6
9C993 LR072253
TUBE - FUEL
Cylinder 1, Fuel Rail To Injector / To: FA999999 		$44.44 1
9C993 LR072253
TUBE - FUEL
Cylinder 1, Fuel Rail To Injector / From: GA000001 		$44.44 1
9C993 LR072252
TUBE - FUEL
Cylinder 3, Cylinder 4, Fuel Rail To Injector / From: GA000001 		$38.66 2
9C993 LR072254
TUBE - FUEL
Cylinder 2, Cylinders 5 And 6, Fuel Rail To Injector / From: GA000001 		$36.68 3
9C993 LR072252
TUBE - FUEL
Cylinder 3, Cylinder 4, Fuel Rail To Injector / To: FA999999 		$38.66 2
9C993 LR072254
TUBE - FUEL
Cylinder 2, Cylinders 5 And 6, Fuel Rail To Injector / To: FA999999 		$36.68 3
9D280A LR040877
MANIFOLD - FUEL SUPPLY
LH, With Valve 		$445.11 1
9D280B LR164041
MANIFOLD - FUEL SUPPLY
RH, Includes Fuel Pressure Sensor / To: MA999999 		$434.61 1
9D280B LR164041
MANIFOLD - FUEL SUPPLY
RH, Includes Fuel Pressure Sensor / From: NA700000 / To: NA799999 		$434.61 1
9D280B LR164041
MANIFOLD - FUEL SUPPLY
RH, Includes Fuel Pressure Sensor / From: NA200000 / To: NA208038 		$434.61 1
9D280B LR164041
MANIFOLD - FUEL SUPPLY
RH, Includes Fuel Pressure Sensor / From: NA208039 / To: NA699999 		$434.61 1
9D280B LR164041
MANIFOLD - FUEL SUPPLY
RH, Includes Fuel Pressure Sensor / From: PA000001 		$434.61 1
9D319 LR013483
BRACKET - FUEL LINES
RH, Fuel Lines To Fuel Rail 		$19.80 1
9E904 LR032818
WASHER - SEALING
To Fuel Injectors
IN STOCK 		$2.98 6
9F593 LR014205
INJECTOR - FUEL
3.0L 24V V6 Turbo Diesel Std Flow / Fuel Injector, New Part-Please Check For Reman Version / To: GA999999 		$774.79 6
9F593 LR063300
INJECTOR - FUEL
3.0 V6 D Gen2 Twin Turbo / Fuel Injector / From: FA000001 / To: FA516687 		$725.72 6
9F593 LR069236
INJECTOR - FUEL
3.0 V6 Diesel Electric Hybrid Eng / Fuel Injector 		$839.46 6
9F593 LR078606
INJECTOR - FUEL
3.0 V6 D Gen2 Mono Turbo / Fuel Injector / From: FA516688 		$781.65 6
9F593 LR054297
INJECTOR - FUEL
3.0L 24V V6 Turbo Diesel Std Flow / For UK and ROW markets except Russia, China, Brazil, Fuel Injector, Remanufactured Part 		$550.34 6
9F593 LR095361
INJECTOR - FUEL
3.0L 24V V6 Turbo Diesel Std Flow / Fuel Injector / From: FA000001 		$797.98 6
9H529 LR031485
KIT - FUEL INJECTION
3.0 V6 Diesel Electric Hybrid Eng / Cylinder No.1, Injector Assembly 		$889.24 1
9H529 LR031486
KIT - FUEL INJECTION
3.0 V6 Diesel Electric Hybrid Eng / Cylinder No.2, Cylinder No.5, Cylinder No.6, Injector Assembly 		$805.55 3
9H529 LR031487
KIT - FUEL INJECTION
3.0 V6 Diesel Electric Hybrid Eng / Cylinder No.3, Cylinder No.4, Injector Assembly 		$836.23 2
9H529 LR017924
KIT - FUEL INJECTION
3.0L 24V V6 Turbo Diesel Std Flow / Cylinder No.1, Injector Assembly / From: EA000001 		$808.71 1
9H529 LR017925
KIT - FUEL INJECTION
3.0L 24V V6 Turbo Diesel Std Flow / Cylinder No.2, Cylinder No.5, Cylinder No.6, Injector Assembly 		$848.13 3
9H529 LR017923
KIT - FUEL INJECTION
3.0L 24V V6 Turbo Diesel Std Flow / Cylinder No.3, Cylinder No.4, Injector Assembly 		$814.05 2
9K022 LR032107
TUBE - INJECTION PUMP LEAK-OFF
Leak Off 		$152.30 1
9K335 LR021871
TUBE - FUEL RETURN
Return 		$177.76 1
9T527 LR017436
KIT - INJECTOR REFIT
Cylinder No.1, Includes Tube, Washer, Clamp, O Rings 		$128.88 1
9T527 LR017437
KIT - INJECTOR REFIT
Cylinder No.2, Cylinder No.5, Cylinder No.6, Includes Tube, Washer, Clamp, O Rings 		$130.00 3
9T527 LR017438
KIT - INJECTOR REFIT
Cylinder No.3, Cylinder No.4, Includes Tube, Washer, Clamp, O Rings 		$124.67 2
9U550A LR138416
INSULATOR - FUEL INJECTORS
LH, Fuel Injectors, Lower / From: LA876295 		$27.95 1
9U550A LR138417
INSULATOR - FUEL INJECTORS
RH, Fuel Injectors, Lower / From: LA876295 		$27.95 1
9U550A LR022120
INSULATOR - FUEL INJECTORS
LH, Fuel Injectors, Lower / To: LA876294 		$27.95 1
9U550A LR022122
INSULATOR - FUEL INJECTORS
RH, Fuel Injectors, Lower / To: LA876294 		$27.95 1
9U550B LR014223
INSULATOR - FUEL INJECTORS
LH, Fuel Injectors, Upper 		$36.14 1
9U550B LR014224
INSULATOR - FUEL INJECTORS
RH, Fuel Injectors, Upper 		$36.14 1
9W276 LR013195
BRACKET - FUEL RAIL 		$27.58 2
11A604 LR013275
GLOW PLUG 		$81.92 6
9346 LR013176
BRACKET - FUEL LINES
LH, Fuel Lines To Fuel Rail 		$14.53 1
