Oil Cooler And Filter (Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Oil Cooler And Filter (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR014164 BOLT - SPECIAL $2.49 To Order
Photo Part No Description Price (each) Stock
LR013148 FILTER - ENGINE OIL - ELEMENT $28.13 IN STOCK
LR124517 KIT - ELEMENT & GASKET - OIL FILTER $24.34 To Order
Photo Part No Description Price (each) Stock
LR013162 SEAL - OIL COOLER $17.95 To Order
Photo Part No Description Price (each) Stock
LR013161 SEAL - OIL COOLER $12.55 To Order
Photo Part No Description Price (each) Stock
LR013147 COVER - OIL FILTER HOUSING $35.05 To Order
Photo Part No Description Price (each) Stock
LR040738 OIL FILTER AND COOLER $361.93 To Order
LR124259 OIL FILTER AND COOLER $361.93 To Order
LR124259 OIL FILTER AND COOLER $361.93 To Order
Photo Part No Description Price (each) Stock
LR013151 O-RING $2.94 To Order
View All

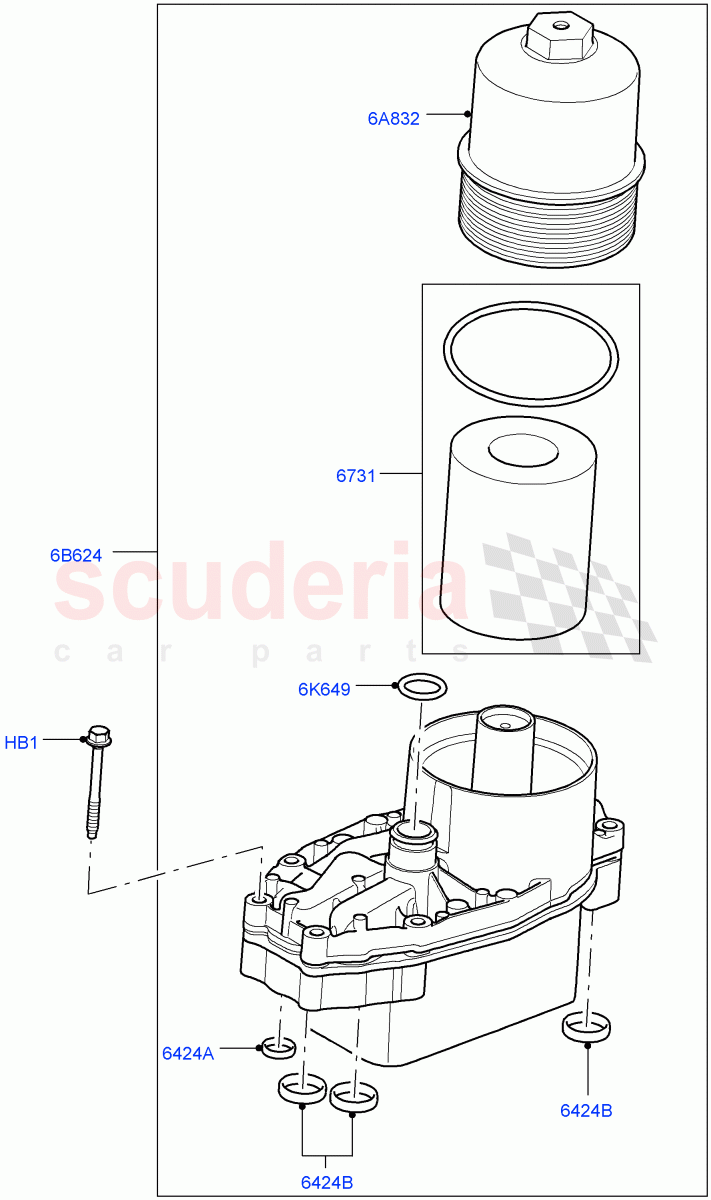

Oil Cooler And Filter (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR014164
BOLT - SPECIAL
Oil Filter Housing 		$2.49 6
6A832 LR013147
COVER - OIL FILTER HOUSING
Oil Filter Housing 		$35.05 1
6B624 LR040738
OIL FILTER AND COOLER
3.0L 24V V6 Turbo Diesel Std Flow 		$361.93 1
6B624 LR124259
OIL FILTER AND COOLER
3.0 V6 D Gen2 Mono Turbo / From: FA000001 / To: KA825619 		$361.93 1
6B624 LR124259
OIL FILTER AND COOLER
3.0 V6 D Gen2 Twin Turbo / From: KA825620 		$361.93 1
6K649 LR013151
O-RING
Oil Cooler Hose, Top 		$2.94 1
6424A LR013162
SEAL - OIL COOLER
From Engine To Oil Filter Housing, 		$17.95 1
6424B LR013161
SEAL - OIL COOLER
From Engine To Oil Filter Housing, 		$12.55 3
6731 LR013148
FILTER - ENGINE OIL - ELEMENT
Element And Seal / To: KA864515
IN STOCK 		$28.13 1
6731 LR124517
KIT - ELEMENT & GASKET - OIL FILTER
Element And Seal / From: KA864516 		$24.34 1
