Exhaust Manifold (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Exhaust Manifold (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001)

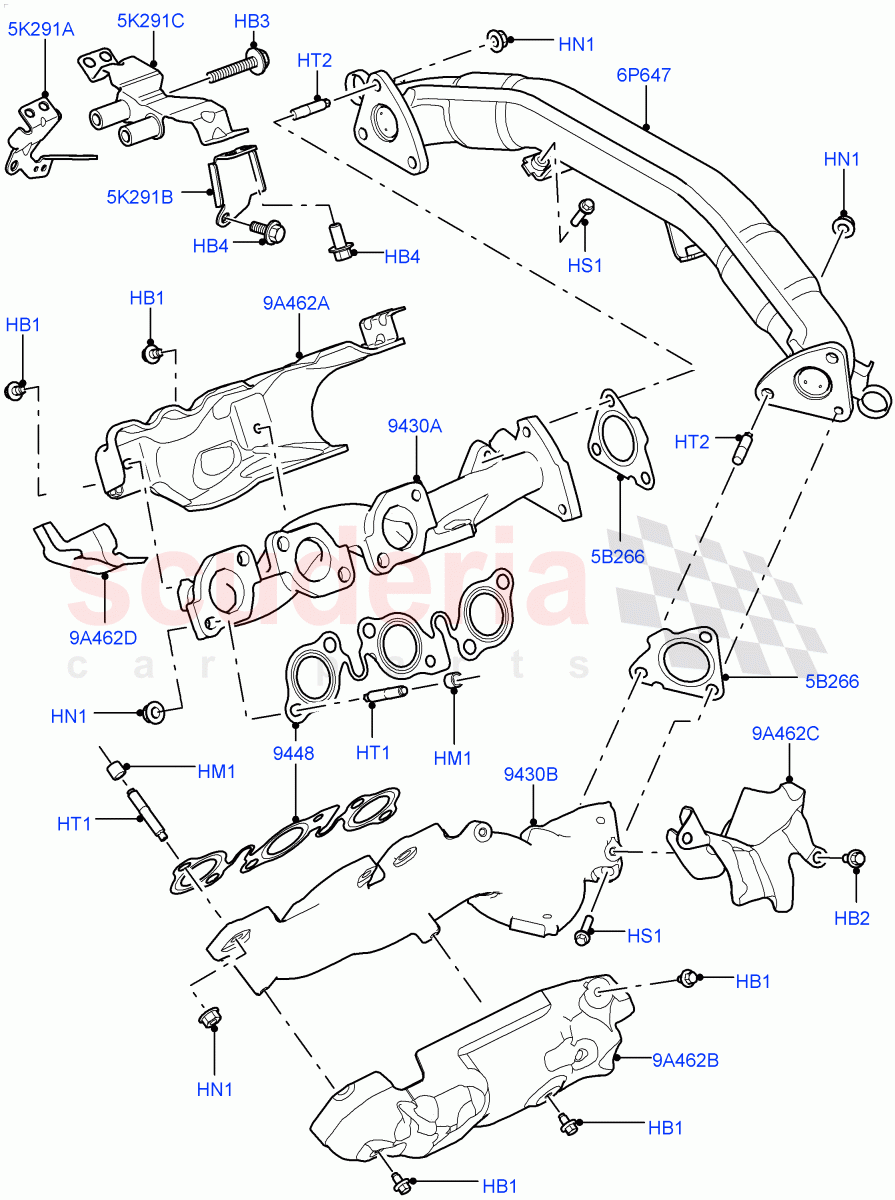

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LYG500210	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1316028	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LYG500220	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1003736	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122427	BOLT	Enquire	To Order
	LR122427	BOLT	Enquire	To Order
	LR122427	BOLT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1357627	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113358	STUD	Enquire	To Order
	LR113358	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1336543	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072304	GASKET - EXHAUST MANIFOLD	Enquire	To Order
	LR072304	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038751	PIPE - EXHAUST CROSSOVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066023	MANIFOLD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063059	MANIFOLD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029736	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR049170	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR080309	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029737	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR049168	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCU500130	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031387	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061963	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069682	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038672	HEAT SHIELD - EXHAUST MANIFOLD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LYG500210	BOLT - HEX.HEAD	LYG500210 BOLT - HEX.HEAD Heat Shield, M6 X 8MM	-	4	Enquire
HB2	1316028	BOLT	1316028 BOLT Heat Shield, M6 X 16MM	-	1	Enquire
HB3	LYG500220	BOLT	LYG500220 BOLT Hexagonal Head, M8 X 56MM	-	2	Enquire
HB4	FS108166	BOLT	FS108166 BOLT Hexagonal Head, M8 X 16MM	-	6	Enquire
HM1	1003736	SPACER	1003736 SPACER 8.5 x 10MM, Spacer For Exhaust Manifold Bolt	-	2	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8 / To: JA193550	-	18	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8 / From: JA193551	-	18	Enquire
HS1	LR122427	BOLT	LR122427 BOLT For Exhaust Crossover Pipe, Hi temp, M8 X 25MM / To: KA819146	-	4	Enquire
HS1	LR122427	BOLT	LR122427 BOLT From Crossover Tube, M8 X 25MM / To: KA819146	-	1	Enquire
HS1	LR122427	BOLT	LR122427 BOLT For Exhaust Crossover Pipe, Hi temp, M8 X 25MM / From: KA819147	-	4	Enquire
HS1	LR122427	BOLT	LR122427 BOLT From Crossover Tube, M8 X 25MM / From: KA819147	-	1	Enquire
HT1	1357627	STUD	1357627 STUD M8 X 17 + M8 X 19, Manifold To Cylinder Head	-	12	Enquire
HT2	LR113358	STUD	LR113358 STUD For Exhaust Crossover Pipe, M8 X 16MM, M8 x 8MM / To: GA999999	-	5	Enquire
HT2	LR113358	STUD	LR113358 STUD For Exhaust Crossover Pipe, M8 X 16MM, M8 x 8MM / From: HA000001	-	5	Enquire
5B266	LR072304	GASKET - EXHAUST MANIFOLD	LR072304 GASKET - EXHAUST MANIFOLD Cross Over Pipe To Exhaust Manifold / To: FA999999	-	2	Enquire
5B266	LR072304	GASKET - EXHAUST MANIFOLD	LR072304 GASKET - EXHAUST MANIFOLD Cross Over Pipe To Exhaust Manifold / From: GA000001	-	2	Enquire
5K291A	LR029736	BRACKET - EXHAUST PIPE MOUNTING	LR029736 BRACKET - EXHAUST PIPE MOUNTING 8 Speed Auto Trans ZF 8HP70 4WD / RH / To: FA999999	-	1	Enquire
5K291A	LR049170	BRACKET - EXHAUST PIPE MOUNTING	LR049170 BRACKET - EXHAUST PIPE MOUNTING 8 Speed Auto Trans ZF 8HP70 HEV 4WD / RH / From: GA000001	-	1	Enquire
5K291A	LR080309	BRACKET - EXHAUST PIPE MOUNTING	LR080309 BRACKET - EXHAUST PIPE MOUNTING 8 Speed Auto Trans ZF 8HP70 4WD / RH / From: GA000001	-	1	Enquire
5K291B	LR029737	BRACKET - EXHAUST PIPE MOUNTING	LR029737 BRACKET - EXHAUST PIPE MOUNTING 8 Speed Auto Trans ZF 8HP70 4WD / LH	-	1	Enquire
5K291B	LR049168	BRACKET - EXHAUST PIPE MOUNTING	LR049168 BRACKET - EXHAUST PIPE MOUNTING 8 Speed Auto Trans ZF 8HP70 HEV 4WD / LH / From: GA000001	-	1	Enquire
5K291C	WCU500130	BRACKET - EXHAUST PIPE MOUNTING	WCU500130 BRACKET - EXHAUST PIPE MOUNTING Centre, For Exhaust Crossover Pipe	-	1	Enquire
6P647	LR038751	PIPE - EXHAUST CROSSOVER	LR038751 PIPE - EXHAUST CROSSOVER Pipe - Exhaust Crossover	-	1	Enquire
9A462A	LR031387	HEAT SHIELD - EXHAUST MANIFOLD	LR031387 HEAT SHIELD - EXHAUST MANIFOLD RH, Exhaust Manifold	-	1	Enquire
9A462B	LR061963	HEAT SHIELD - EXHAUST MANIFOLD	LR061963 HEAT SHIELD - EXHAUST MANIFOLD LH, Exhaust Manifold	-	1	Enquire
9A462C	LR069682	HEAT SHIELD - EXHAUST MANIFOLD	LR069682 HEAT SHIELD - EXHAUST MANIFOLD LH, Cross Over Pipe To Exhaust Manifold	-	1	Enquire
9A462D	LR038672	HEAT SHIELD - EXHAUST MANIFOLD	LR038672 HEAT SHIELD - EXHAUST MANIFOLD Exhaust Manifold, RH Front	-	1	Enquire
9430A	LR066023	MANIFOLD - EXHAUST	LR066023 MANIFOLD - EXHAUST RH	-	1	Enquire
9430B	LR063059	MANIFOLD - EXHAUST	LR063059 MANIFOLD - EXHAUST LH	-	1	Enquire
9448	1336543	GASKET - EXHAUST MANIFOLD	1336543 GASKET - EXHAUST MANIFOLD Exhaust Manifold	-	2	Enquire
