View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR054947	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048528	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4408651	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025514	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025048	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024971	SENSOR - OIL LEVEL	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR054947	BOLT - HEX.HEAD	LR054947 BOLT - HEX.HEAD M8 x 92,5MM	-	2	Enquire
HS1	LR048528	SCREW	LR048528 SCREW M8 x 28MM	-	10	Enquire
HS2	4408651	SCREW	4408651 SCREW M6 X 14MM	-	1	Enquire
HT1	LR025514	STUD	LR025514 STUD M8X25 + M6X12	-	1	Enquire
6C624	LR024971	SENSOR - OIL LEVEL	LR024971 SENSOR - OIL LEVEL Sensor - Oil Temperature	-	1	Enquire
6675	LR057578	Pan - Engine Oil	LR057578 Pan - Engine Oil To: EA503730	-	1	Enquire
6675	LR076015	PAN - ENGINE OIL	LR076015 PAN - ENGINE OIL From: EA503731	-	1	Enquire
6730	LR025048	PLUG - OIL DRAIN	LR025048 PLUG - OIL DRAIN	-	1	Enquire
6750	LR057629	Indicator - Oil Level	LR057629 Indicator - Oil Level To: FA999999	-	1	Enquire
6750	LR076016	INDICATOR - OIL LEVEL	LR076016 INDICATOR - OIL LEVEL From: GA000001	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

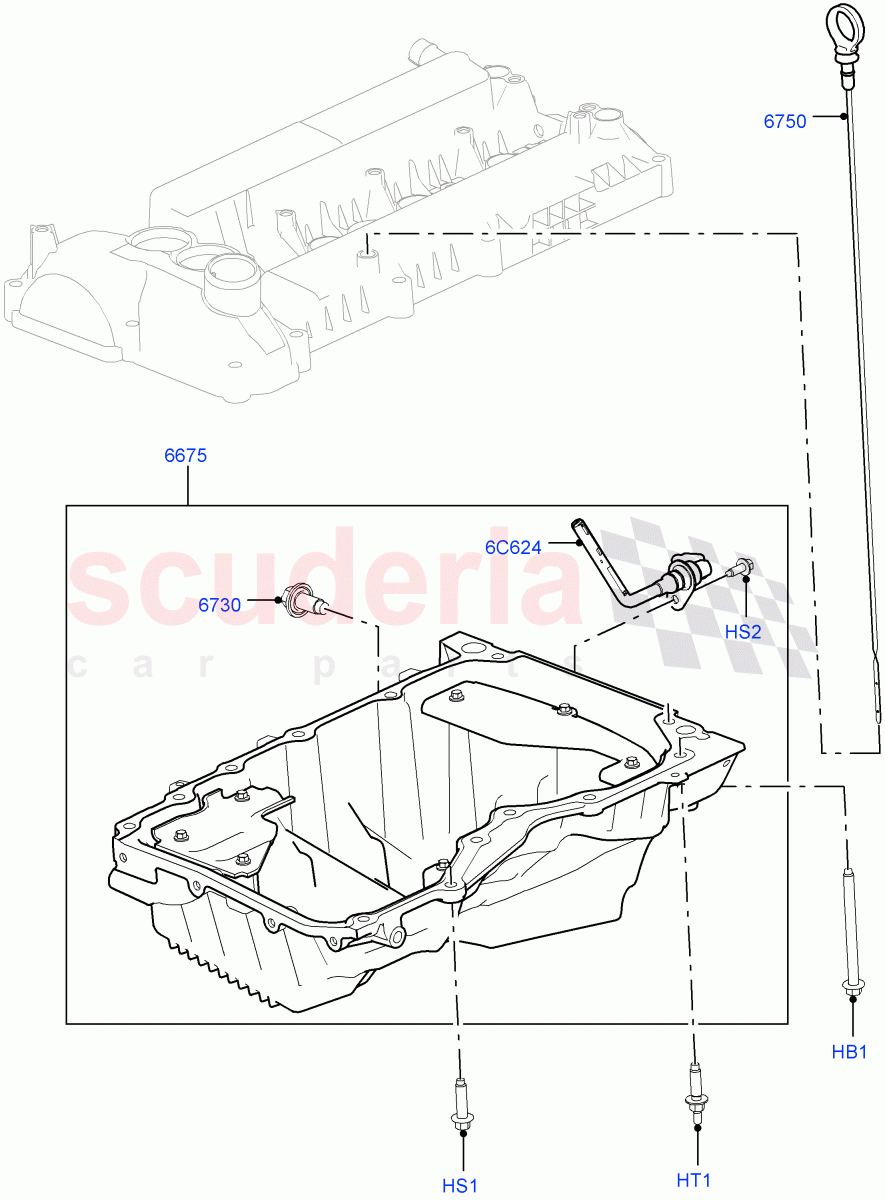

Oil Pan/Oil Level Indicator (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]
