View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4556038	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057763	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045645	BOOT - IGNITION WIRE PROTECTION	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	4556038	BOLT	4556038 BOLT M6 x 35MM	-	2	Enquire
HT1	LR057763	STUD	LR057763 STUD M6 x 10MM + M6 x 30MM	-	2	Enquire
12A402	LR045645	BOOT - IGNITION WIRE PROTECTION	LR045645 BOOT - IGNITION WIRE PROTECTION	-	4	Enquire
12029	LR030637	COIL - IGNITION	LR030637 COIL - IGNITION To: GA568546	-	4	Enquire
12029	LR084889	COIL - IGNITION	LR084889 COIL - IGNITION From: GA568547	-	4	Enquire
12405	LR025605	SPARK PLUG	LR025605 SPARK PLUG For All Markets Except China / To: GA568546	-	4	Enquire
12405	LR109396	SPARK PLUG	LR109396 SPARK PLUG For All Markets Except China / From: GA568547	-	4	Enquire
12405	LR123892	SPARK PLUG	LR123892 SPARK PLUG For All Markets	-	4	Enquire

Haven't found what you're looking for?

View Cart / Checkout

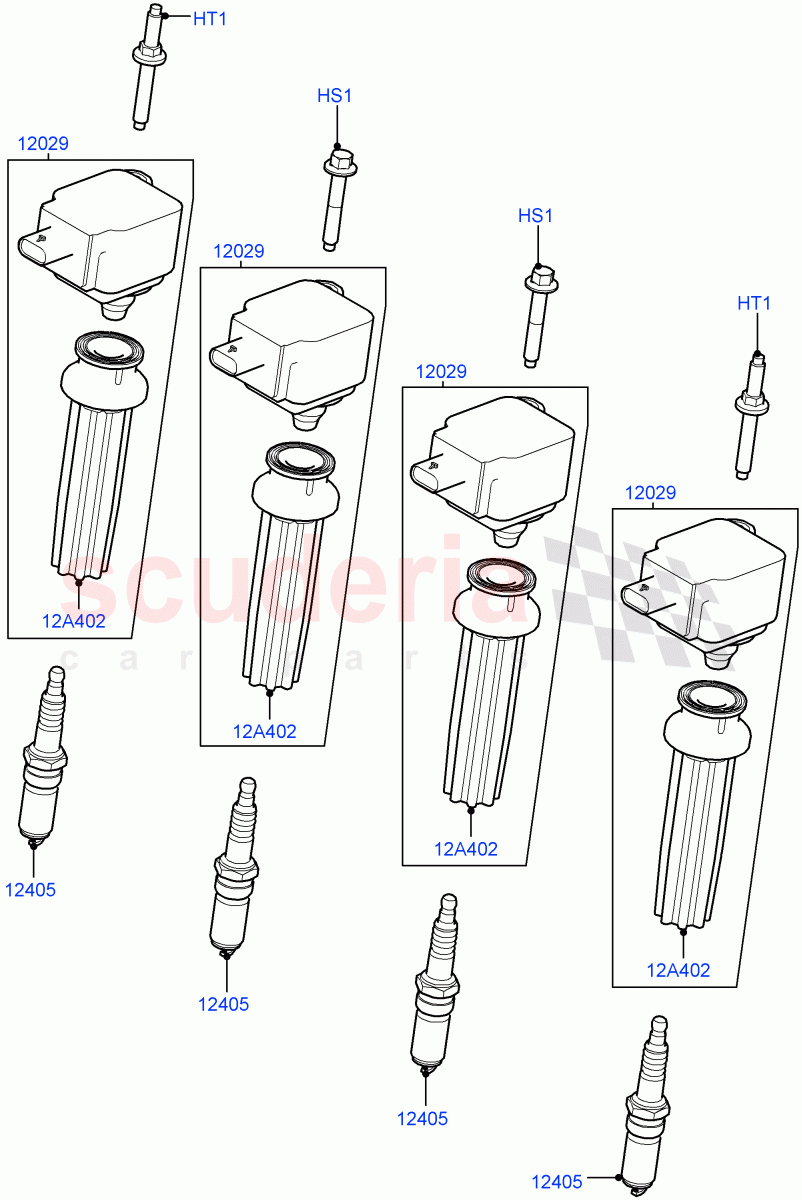

Ignition Coil And Wires/Spark Plugs (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]
