Name: Radiator/Coolant Overflow Container (2.0L 16V TIVCT T/C 240PS Petrol)
Rating: 4.9 (1 reviews)

Radiator/Coolant Overflow Container (2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Radiator/Coolant Overflow Container (2.0L 16V TIVCT T/C 240PS Petrol)

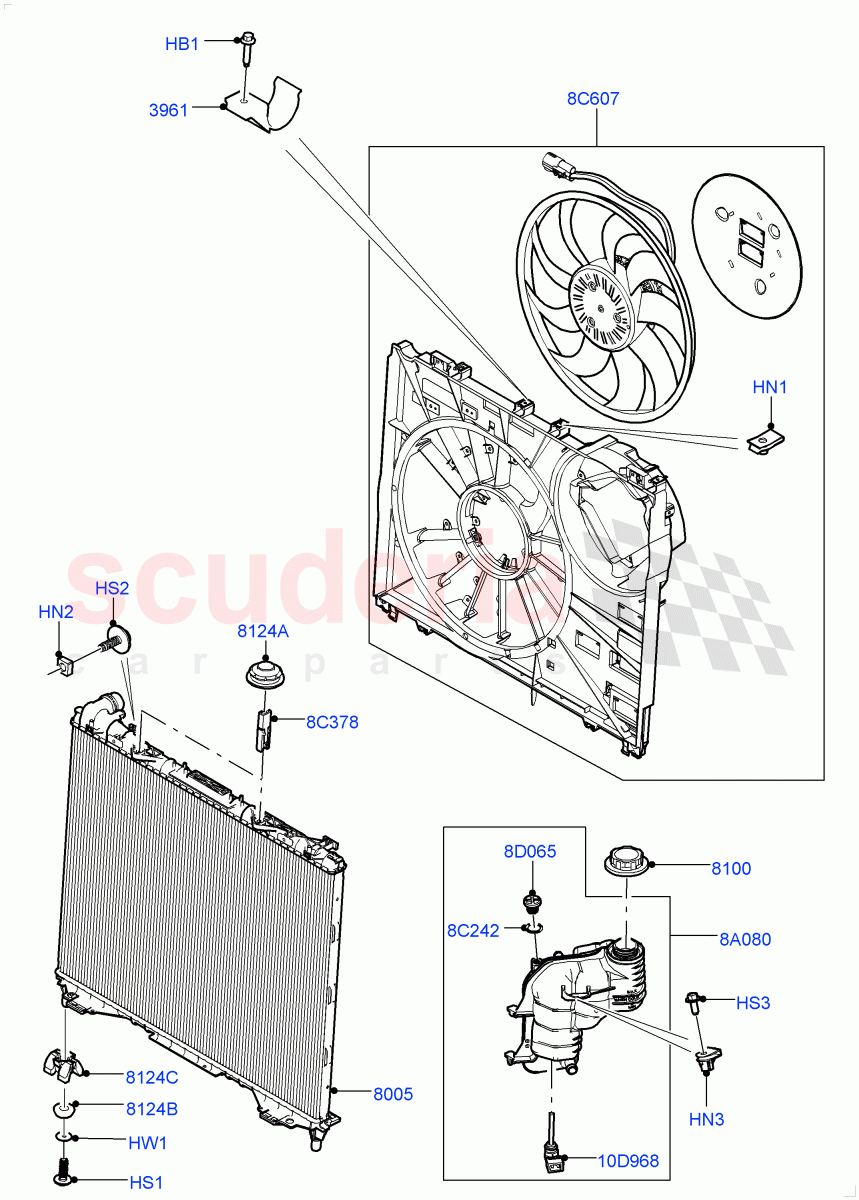

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500250	BOLT	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR040736	NUT - SQUARE	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038068	NUT - SPECIAL	$1.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038052	SCREW	$2.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033039	SCREW AND WASHER - HEX HEAD	$1.61	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500170	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	VYF500090	WASHER	$0.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057994	Support	$10.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162110	RADIATOR	$548.06	To Order
	LR162110	RADIATOR	$548.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176860	CAP - OVERFLOW CONTAINER	$16.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PDI500012	INSULATOR - RADIATOR MOUNTING	$2.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034569	INSULATOR - RADIATOR SUPPORT	$6.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034565	INSULATOR - RADIATOR SUPPORT	$5.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR181676	TANK - RADIATOR OVERFLOW	$132.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR007315	SEAL	$2.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034571	PIN - RADIATOR MOUNTING	$4.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062332	MOTOR AND FAN - ENGINE COOLING	$991.81	To Order
	LR084440	MOTOR AND FAN - ENGINE COOLING	$1,507.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055301	VALVE - BLEEDER SCREW	$8.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	$23.95	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500250	BOLT IN STOCK	RYG500250 BOLT M6 x 25MM IN STOCK	$1.19	1
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 IN STOCK	$1.57	7
HN2	LR040736	NUT - SQUARE IN STOCK	LR040736 NUT - SQUARE M6, Square IN STOCK	$1.23	2
HN3	LR038068	NUT - SPECIAL	LR038068 NUT - SPECIAL Expansion Tank, Nut U Spring M6 Push On	$1.66	1
HS1	LR038052	SCREW IN STOCK	LR038052 SCREW 8 x 24MM, Torx IN STOCK	$2.38	2
HS2	LR033039	SCREW AND WASHER - HEX HEAD	LR033039 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 x 19MM	$1.61	2
HS3	BYP500170	SCREW IN STOCK	BYP500170 SCREW Hexagonal Head, M6 x 14MM IN STOCK	$1.19	1
HW1	VYF500090	WASHER	VYF500090 WASHER 8.4 X 31 X 1.6	$0.82	2
8A080	LR181676	TANK - RADIATOR OVERFLOW IN STOCK	LR181676 TANK - RADIATOR OVERFLOW IN STOCK	$132.77	1
8C242	LR007315	SEAL IN STOCK	LR007315 SEAL Bleeder Screw IN STOCK	$2.16	1
8C378	LR034571	PIN - RADIATOR MOUNTING	LR034571 PIN - RADIATOR MOUNTING Top	$4.66	2
8C607	LR062332	MOTOR AND FAN - ENGINE COOLING	LR062332 MOTOR AND FAN - ENGINE COOLING With Standard Engine Cooling Fan / To: GA568679	$991.81	1
8C607	LR084440	MOTOR AND FAN - ENGINE COOLING	LR084440 MOTOR AND FAN - ENGINE COOLING With Standard Engine Cooling Fan / From: GA568680	$1,507.46	1
8D065	LR055301	VALVE - BLEEDER SCREW IN STOCK	LR055301 VALVE - BLEEDER SCREW IN STOCK	$8.64	1
10D968	PCJ500030	SENSOR - COOLANT LEVEL IN STOCK	PCJ500030 SENSOR - COOLANT LEVEL IN STOCK	$23.95	1
3961	LR057994	Support	LR057994 Support	$10.98	1
8005	LR162110	RADIATOR	LR162110 RADIATOR To: NA204561	$548.06	1
8005	LR162110	RADIATOR	LR162110 RADIATOR From: NA204562	$548.06	1
8100	LR176860	CAP - OVERFLOW CONTAINER IN STOCK	LR176860 CAP - OVERFLOW CONTAINER IN STOCK	$16.17	1
8124A	PDI500012	INSULATOR - RADIATOR MOUNTING IN STOCK	PDI500012 INSULATOR - RADIATOR MOUNTING Radiator Mounting, Top IN STOCK	$2.70	2
8124B	LR034569	INSULATOR - RADIATOR SUPPORT	LR034569 INSULATOR - RADIATOR SUPPORT Lower, Radiator Mounting	$6.12	2
8124C	LR034565	INSULATOR - RADIATOR SUPPORT	LR034565 INSULATOR - RADIATOR SUPPORT Radiator Support	$5.94	2

Radiator/Coolant Overflow Container (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Radiator/Coolant Overflow Container (2.0L 16V TIVCT T/C 240PS Petrol)
