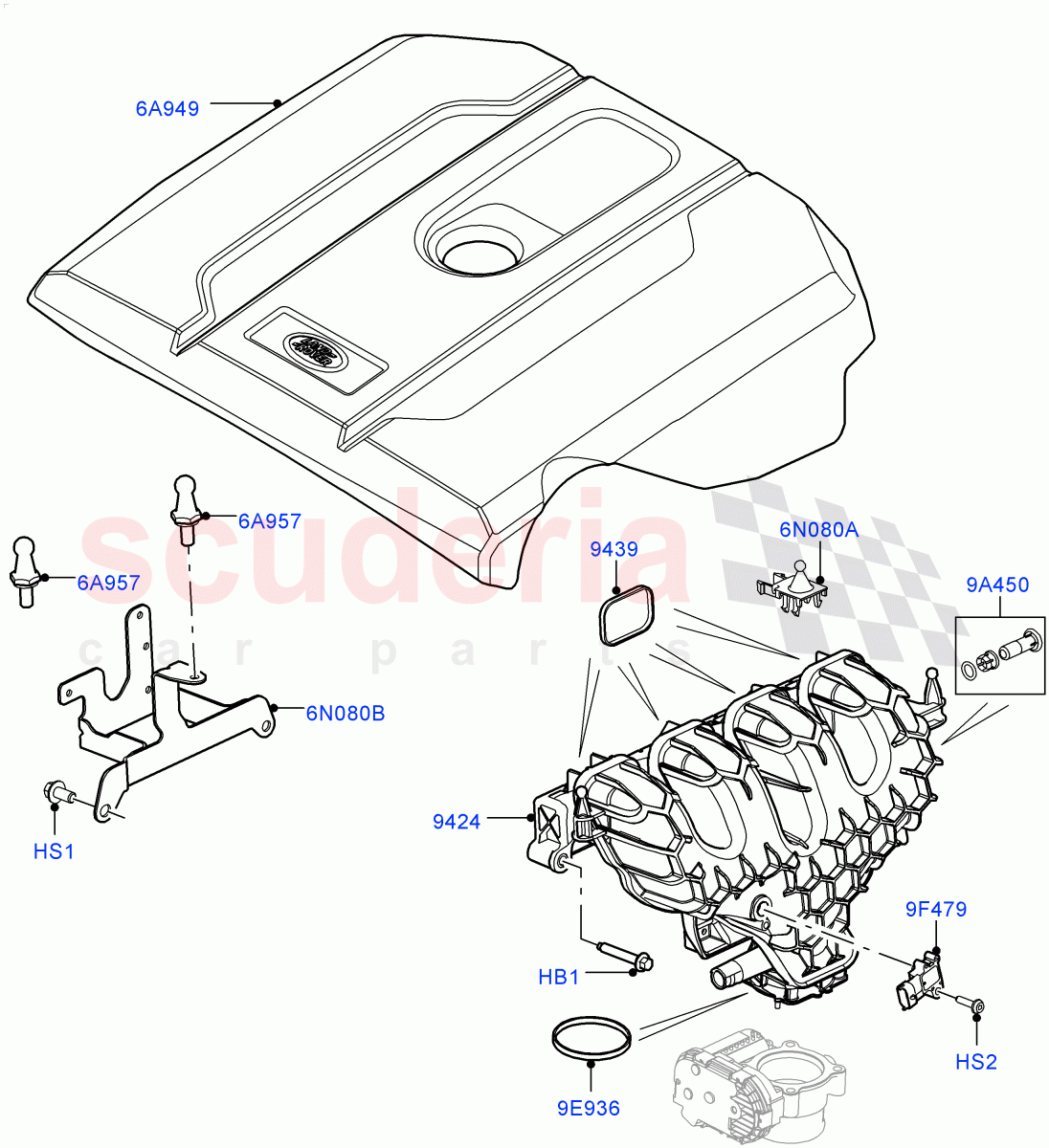

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR048504	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110206	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022159	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055363	MANIFOLD - INLET	Enquire	To Order
	LR088577	INLET MANIFOLD WITH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057234	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057449	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038978	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052965	KIT - INTAKE PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024989	GASKET - THROTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038762	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order
	LR075167	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057610	Bracket - Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057447	Bracket - Support	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR048504	BOLT	LR048504 BOLT M8 x 55MM, Manifold To Cylinder Head	-	5	Enquire
HS1	FS110206	BOLT - HEX.HEAD	FS110206 BOLT - HEX.HEAD Hexagonal Head, M10 X 20MM	-	2	Enquire
HS2	LR022159	SCREW	LR022159 SCREW M6 x 25MM, MAP Sensor	-	1	Enquire
6A949	LR057449	Cover	LR057449 Cover Engine, Top	-	1	Enquire
6A957	LR038978	STUD - BALL	LR038978 STUD - BALL Upper Engine Cover Support	-	2	Enquire
6N080A	LR057610	Bracket - Support	LR057610 Bracket - Support LH, Engine Cover	-	1	Enquire
6N080B	LR057447	Bracket - Support	LR057447 Bracket - Support RH, Engine Cover	-	1	Enquire
9A450	LR052965	KIT - INTAKE PLUG	LR052965 KIT - INTAKE PLUG	-	1	Enquire
9E936	LR024989	GASKET - THROTTLE	LR024989 GASKET - THROTTLE Throttle Body To Intake	-	1	Enquire
9F479	LR038762	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR038762 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / To: EA503730	-	1	Enquire
9F479	LR075167	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR075167 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: EA503731	-	1	Enquire
9424	LR055363	MANIFOLD - INLET	LR055363 MANIFOLD - INLET To: EA503853	-	1	Enquire
9424	LR088577	INLET MANIFOLD WITH INTERCOOLER	LR088577 INLET MANIFOLD WITH INTERCOOLER From: EA503854	-	1	Enquire
9439	LR057234	GASKET - INTAKE MANIFOLD	LR057234 GASKET - INTAKE MANIFOLD Manifold To Cylinder Head	-	4	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Inlet Manifold (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]
