Rear Seat Base (Row 3) (With 7 Seat Configuration) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Rear Seat Base (Row 3) (With 7 Seat Configuration)

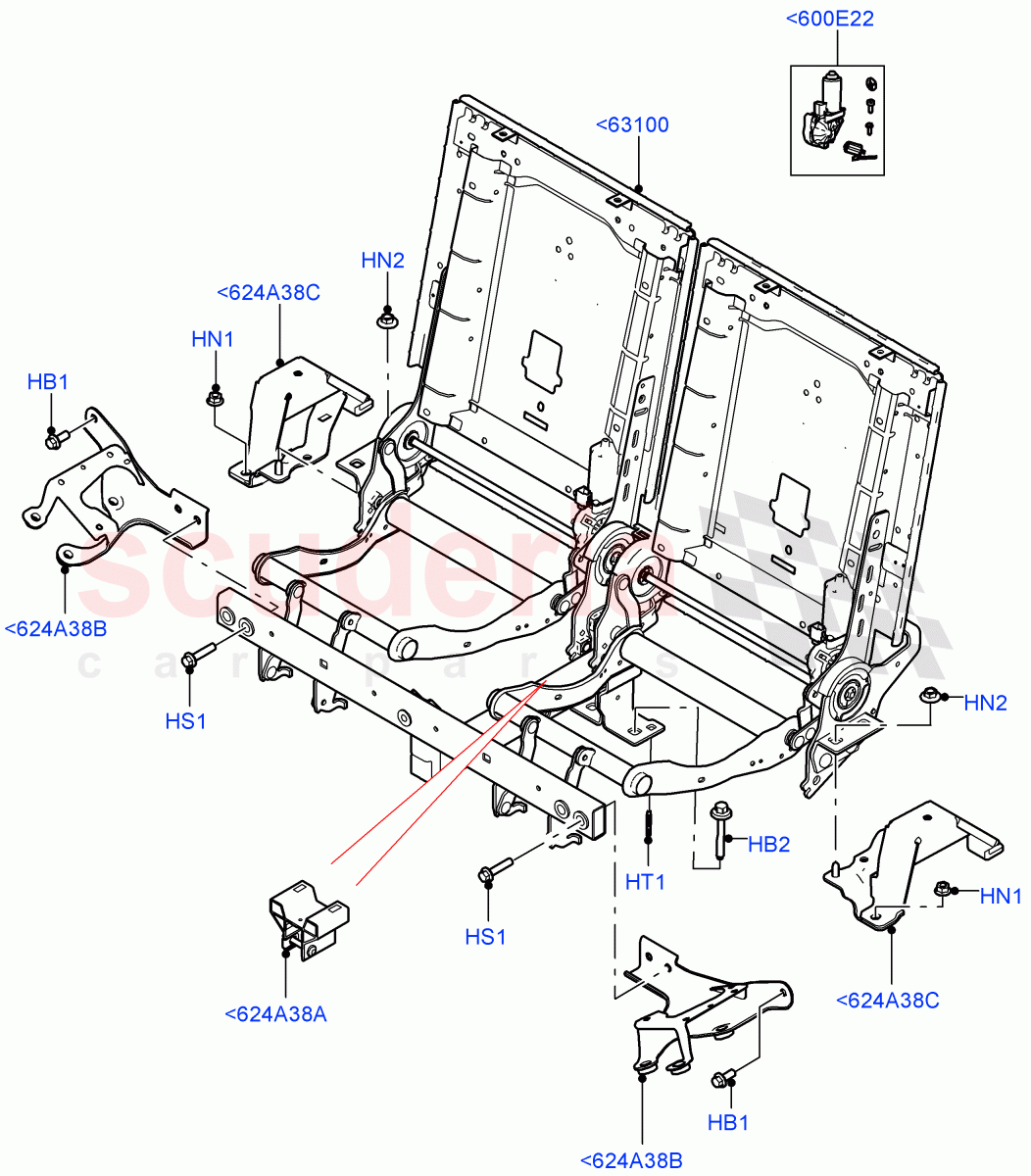

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS110256	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048609	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN110046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044876	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FB110096	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048608	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042923	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order
	LR052847	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order
	LR057978	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR159403	KIT - SEAT MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048479	BRACKET - SEAT MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042924	BRACKET - SEAT MOUNTING	Enquire	To Order
	LR042925	BRACKET - SEAT MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042926	BRACKET - SEAT MOUNTING	Enquire	To Order
	LR042927	BRACKET - SEAT MOUNTING	Enquire	To Order
	LR052845	BRACKET - SEAT MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<600E22	LR159403	KIT - SEAT MOTOR	LR159403 KIT - SEAT MOTOR Seat Folding, Squab Recliner	-	1	Enquire
<624A38A	LR048479	BRACKET - SEAT MOUNTING	LR048479 BRACKET - SEAT MOUNTING Support Bracket	-	1	Enquire
<624A38B	LR042924	BRACKET - SEAT MOUNTING	LR042924 BRACKET - SEAT MOUNTING RH	-	1	Enquire
<624A38B	LR042925	BRACKET - SEAT MOUNTING	LR042925 BRACKET - SEAT MOUNTING LH	-	1	Enquire
<624A38C	LR042926	BRACKET - SEAT MOUNTING	LR042926 BRACKET - SEAT MOUNTING RH / To: EA190812	-	1	Enquire
<624A38C	LR042927	BRACKET - SEAT MOUNTING	LR042927 BRACKET - SEAT MOUNTING LH / To: EA190812	-	1	Enquire
<624A38C	LR052845	BRACKET - SEAT MOUNTING	LR052845 BRACKET - SEAT MOUNTING RH / From: EA190813	-	1	Enquire
<624A38C	LR052846	BRACKET - SEAT MOUNTING	LR052846 BRACKET - SEAT MOUNTING LH / From: EA190813	-	1	Enquire
<63100	LR042923	FRAME - REAR SEAT BACK RETAINING	LR042923 FRAME - REAR SEAT BACK RETAINING Frame Assy / To: EA190812	-	1	Enquire
<63100	LR052847	FRAME - REAR SEAT BACK RETAINING	LR052847 FRAME - REAR SEAT BACK RETAINING Frame Assy / From: EA190813 / To: EA325046	-	1	Enquire
<63100	LR057978	FRAME - REAR SEAT BACK RETAINING	LR057978 FRAME - REAR SEAT BACK RETAINING Frame Assy / From: EA325047 / To: MA783915	-	1	Enquire
<63100	LR156806	FRAME - REAR SEAT BACK RETAINING	LR156806 FRAME - REAR SEAT BACK RETAINING Frame Assy / From: MA783916	-	1	Enquire
HB1	FS110256	BOLT - FLANGED HEX.	FS110256 BOLT - FLANGED HEX. M10 X 25MM	-	2	Enquire
HB2	LR048609	BOLT	LR048609 BOLT 3rd Row Seat Mounting, M10 x 72MM	-	2	Enquire
HN1	FN110046	NUT - HEX.	FN110046 NUT - HEX. M10	-	4	Enquire
HN2	LR044876	NUT AND WASHER - HEX.	LR044876 NUT AND WASHER - HEX. M10	-	2	Enquire
HS1	FB110096	SCREW	FB110096 SCREW Hexagonal Head, M10 X 45	-	4	Enquire
HT1	LR048608	STUD	LR048608 STUD 3rd Row Seat Mounting, M6	-	2	Enquire
