Name: Front Brake Discs And Calipers (Front Disc And Caliper Size 19, Disc And Caliper Size-Frt 19/RR 19) ((V) FROMJA000001)
Rating: 5.0 (1 reviews)

Front Brake Discs And Calipers (Front Disc And Caliper Size 19, Disc And Caliper Size-Frt 19/RR 19) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Front Brake Discs And Calipers (Front Disc And Caliper Size 19, Disc And Caliper Size-Frt 19/RR 19)...

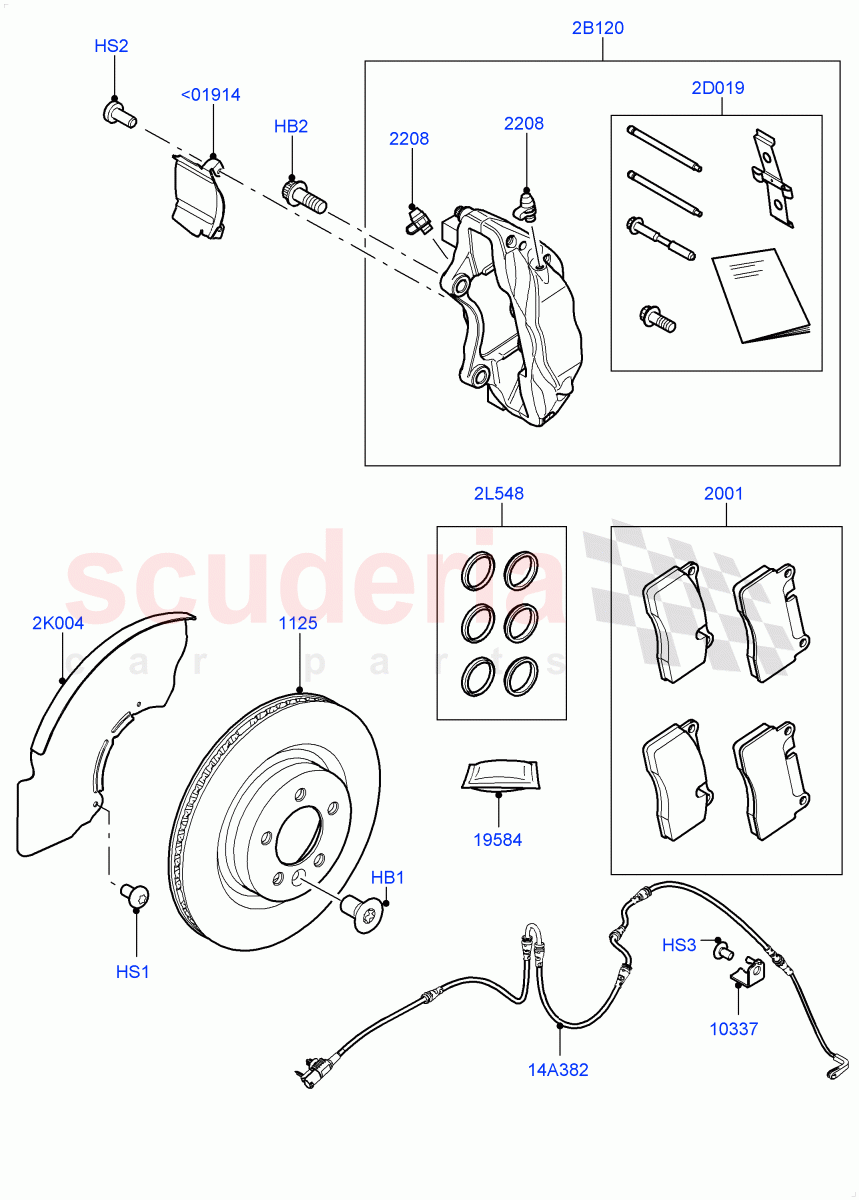

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	$3.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033274	BOLT	$7.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR043873	SCREW - PAN - TORX	$1.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500920	SCREW	$0.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR098967	DISC - BRAKE	$203.56	To Order
	LR098967	DISC - BRAKE	$203.56	To Order
	LR098967	DISC - BRAKE	$203.56	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR110084	KIT - CALIPER BRAKE PAD	$333.56	To Order
	LR138646	KIT - CALIPER BRAKE PAD	$333.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR039525	SCREW - BLEED	$15.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR102045	BRACKET - WIRING	$33.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020053	GREASE - CHASSIS LUBRICATION	$3.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR110097	CALIPER - BRAKE - LESS PADS	$635.79	To Order
	LR110108	CALIPER - BRAKE - LESS PADS	$605.51	To Order
	LR156210	CALIPER - BRAKE - LESS PADS	$615.47	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR110072	KIT - BRAKE CALIPER ATTACHMENT	$93.64	To Order
	LR149362	KIT - BRAKE CALIPER ATTACHMENT	$93.64	To Order
	LR156545	KIT - BRAKE CALIPER ATTACHMENT	$90.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099009	SHIELD - SPLASH	$82.05	To Order
	LR099008	SHIELD - SPLASH	$82.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110135	KIT - BOOT	$185.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039165	DUCT - BRAKE CALIPER COOLING	$11.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR098988	WIRE - BRAKE PAD WEAR WARNING	$39.56	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<01914	LR039165	DUCT - BRAKE CALIPER COOLING IN STOCK	LR039165 DUCT - BRAKE CALIPER COOLING Brake Caliper Cooling, RH/LH / From: JA000001 IN STOCK	$11.17	2
HB1	LR002080	BOLT IN STOCK	LR002080 BOLT M10 X 20MM, Torx / From: JA000001 IN STOCK	$3.05	2
HB2	LR033274	BOLT IN STOCK	LR033274 BOLT Hexagonal Head, M16 X 40 / From: JA000001 IN STOCK	$7.71	4
HS1	LR043873	SCREW - PAN - TORX IN STOCK	LR043873 SCREW - PAN - TORX M6 X 16MM, Torx / From: JA000001 IN STOCK	$1.05	4
HS2	RYP500920	SCREW IN STOCK	RYP500920 SCREW M6 X 14MM, Torx / From: JA000001 IN STOCK	$0.72	4
HS3	LR018509	SCREW IN STOCK	LR018509 SCREW M6 X 10MM, Torx / From: JA000001 IN STOCK	$1.19	1
2B120	LR110097	CALIPER - BRAKE - LESS PADS	LR110097 CALIPER - BRAKE - LESS PADS Brake Calipers - Dark Anodised / RH, Brembo / From: JA000001 / To: MA785103	$635.79	1
2B120	LR110108	CALIPER - BRAKE - LESS PADS	LR110108 CALIPER - BRAKE - LESS PADS Brake Calipers - Dark Anodised / LH, Brembo / From: JA000001 / To: MA785103	$605.51	1
2B120	LR156210	CALIPER - BRAKE - LESS PADS	LR156210 CALIPER - BRAKE - LESS PADS Brake Calipers - Dark Anodised / LH, Brembo / From: MA785104	$615.47	1
2B120	LR156209	CALIPER - BRAKE - LESS PADS	LR156209 CALIPER - BRAKE - LESS PADS Brake Calipers - Dark Anodised / RH, Brembo / From: MA785104	$942.00	1
2D019	LR110072	KIT - BRAKE CALIPER ATTACHMENT	LR110072 KIT - BRAKE CALIPER ATTACHMENT Pad Clip And Retaining Pins / From: JA000001 / To: MA760403	$93.64	2
2D019	LR149362	KIT - BRAKE CALIPER ATTACHMENT	LR149362 KIT - BRAKE CALIPER ATTACHMENT Pad Clip And Retaining Pins / From: MA760404 / To: MA783446	$93.64	2
2D019	LR156545	KIT - BRAKE CALIPER ATTACHMENT	LR156545 KIT - BRAKE CALIPER ATTACHMENT Pad Clip And Retaining Pins / From: MA783447	$90.66	2
2K004	LR099009	SHIELD - SPLASH	LR099009 SHIELD - SPLASH LH / From: JA000001	$82.05	1
2K004	LR099008	SHIELD - SPLASH	LR099008 SHIELD - SPLASH RH / From: JA000001	$82.05	1
2L548	LR110135	KIT - BOOT	LR110135 KIT - BOOT Brake Caliper / From: JA000001	$185.12	2
14A382	LR098988	WIRE - BRAKE PAD WEAR WARNING IN STOCK	LR098988 WIRE - BRAKE PAD WEAR WARNING From: JA000001 IN STOCK	$39.56	1
1125	LR098967	DISC - BRAKE	LR098967 DISC - BRAKE From: JA000001 / To: MA999999	$203.56	2
1125	LR098967	DISC - BRAKE	LR098967 DISC - BRAKE From: NA700000 / To: NA799999	$203.56	2
1125	LR098967	DISC - BRAKE	LR098967 DISC - BRAKE From: NA200000 / To: NA205230	$203.56	2
1125	LR161893	DISC - BRAKE	LR161893 DISC - BRAKE From: NA205231 / To: NA699999	$203.56	2
1125	LR161893	DISC - BRAKE	LR161893 DISC - BRAKE From: PA000001	$203.56	2
2001	LR110084	KIT - CALIPER BRAKE PAD	LR110084 KIT - CALIPER BRAKE PAD Axle Set / From: JA000001 / To: LA999999	$333.56	1
2001	LR138646	KIT - CALIPER BRAKE PAD IN STOCK	LR138646 KIT - CALIPER BRAKE PAD Axle Set / From: MA000001 IN STOCK	$333.56	1
2208	LR039525	SCREW - BLEED IN STOCK	LR039525 SCREW - BLEED From: JA000001 IN STOCK	$15.55	4
10337	LR102045	BRACKET - WIRING	LR102045 BRACKET - WIRING From: JA000001	$33.17	1
19584	LR020053	GREASE - CHASSIS LUBRICATION IN STOCK	LR020053 GREASE - CHASSIS LUBRICATION From: JA000001 IN STOCK	$3.48	1
