Luggage Compt/Tailgte Lock Controls of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Luggage Compt/Tailgte Lock Controls

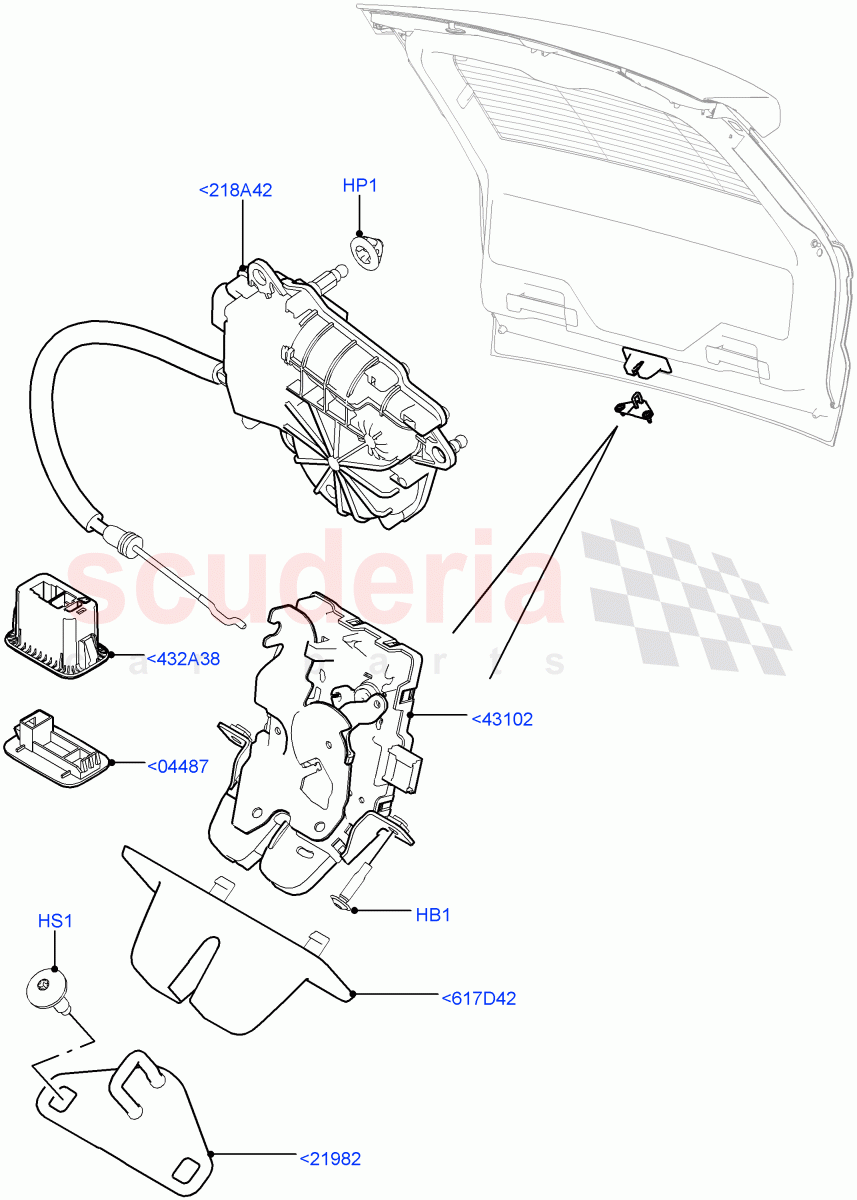

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034354	BOLT - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034344	PLUG - BODY SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028301	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028982	PLUG - BLANKING	Enquire	To Order
	LR028982	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174524	STRIKER - LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048039	LATCH - TAILGATE	Enquire	To Order
	LR070126	LATCH - TAILGATE	Enquire	To Order
	LR139929	LATCH - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051280	ACTUATOR - DOOR LATCH	Enquire	To Order
	LR090185	ACTUATOR - DOOR LATCH	Enquire	To Order
	LR095551	ACTUATOR - DOOR LATCH	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR040338	SWITCH - TAILGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034352	BEZEL - LATCH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<218A42	LR051280	ACTUATOR - DOOR LATCH	LR051280 ACTUATOR - DOOR LATCH To: FA514747	-	1	Enquire
<218A42	LR090185	ACTUATOR - DOOR LATCH	LR090185 ACTUATOR - DOOR LATCH Tailgate - Hands Free / From: GA598753 / To: HA699999	-	1	Enquire
<218A42	LR095551	ACTUATOR - DOOR LATCH	LR095551 ACTUATOR - DOOR LATCH Tailgate - Hands Free / From: HA700000 / To: JA999999	-	1	Enquire
<218A42	LR070124	ACTUATOR - DOOR LATCH	LR070124 ACTUATOR - DOOR LATCH From: FA514748 / To: FA516436	-	1	Enquire
<218A42	LR051280	ACTUATOR - DOOR LATCH	LR051280 ACTUATOR - DOOR LATCH From: FA516437 / To: FA537914	-	1	Enquire
<218A42	LR070125	ACTUATOR - DOOR LATCH	LR070125 ACTUATOR - DOOR LATCH Tailgate - Powered One Piece / From: FA537915 / To: GA598752	-	1	Enquire
<218A42	LR095551	ACTUATOR - DOOR LATCH	LR095551 ACTUATOR - DOOR LATCH Tailgate-Powered Upper / From: KA000001	-	1	Enquire
<432A38	LR040338	SWITCH - TAILGATE	LR040338 SWITCH - TAILGATE Tailgate - Hands Free / Power Tailgate Close Switch	-	1	Enquire
<617D42	LR034352	BEZEL - LATCH	LR034352 BEZEL - LATCH	-	1	Enquire
<04487	LR028982	PLUG - BLANKING	LR028982 PLUG - BLANKING Tailgate - Manual One Piece / To: JA999999	-	1	Enquire
<04487	LR028982	PLUG - BLANKING	LR028982 PLUG - BLANKING With Conventional Tailgate / From: KA000001	-	1	Enquire
<21982	LR174524	STRIKER - LATCH	LR174524 STRIKER - LATCH	-	1	Enquire
<43102	LR048039	LATCH - TAILGATE	LR048039 LATCH - TAILGATE To: FA514747	-	1	Enquire
<43102	LR070126	LATCH - TAILGATE	LR070126 LATCH - TAILGATE From: FA514748 / To: MA772548	-	1	Enquire
<43102	LR139929	LATCH - TAILGATE	LR139929 LATCH - TAILGATE From: MA772549	-	1	Enquire
HB1	LR034354	BOLT - PAN - TORX	LR034354 BOLT - PAN - TORX M6 x 19MM, Torx	-	2	Enquire
HP1	LR034344	PLUG - BODY SEALING	LR034344 PLUG - BODY SEALING 14 X 0.8-2 X 7, Cup Type	-	3	Enquire
HS1	LR028301	SCREW	LR028301 SCREW M8 X 21MM, Pan Head	-	2	Enquire
