Timing Gear (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Timing Gear (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV, 2.0L I4...

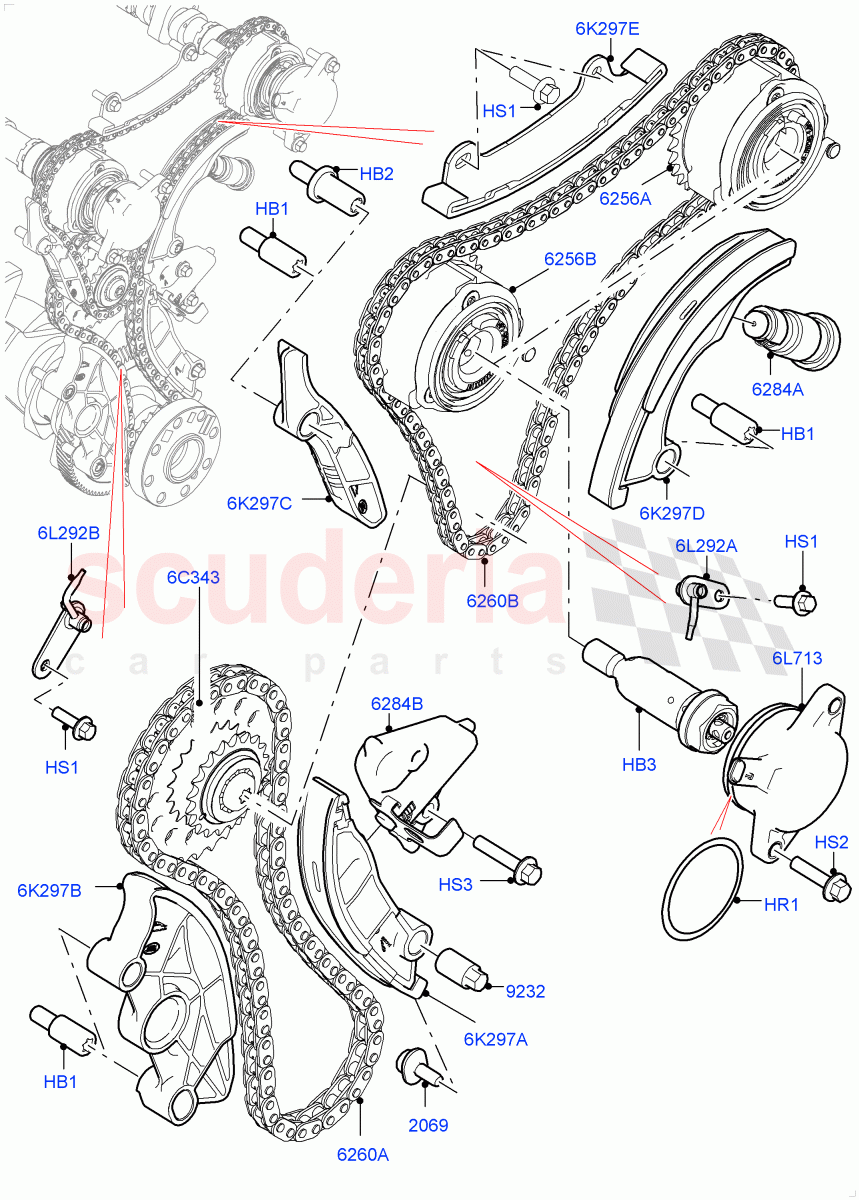

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR088515	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091750	BOLT - SPECIAL	Enquire	To Order
	LR127722	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095784	O-RING	Enquire	To Order
	LR154974	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073762	PIN - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073759	NUT - SPECIAL	Enquire	To Order
	LR120542	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142281	SPROCKET - CAMSHAFT	Enquire	To Order
	LR142281	SPROCKET - CAMSHAFT	Enquire	To Order
	LR142281	SPROCKET - CAMSHAFT	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR177463	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order
	LR177463	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order
	LR091759	SPROCKET - CAMSHAFT	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091740	CHAIN - TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091742	CHAIN - TIMING	Enquire	To Order
	LR091742	CHAIN - TIMING	Enquire	To Order
	LR091742	CHAIN - TIMING	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091743	TENSIONER - TIMING BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093825	TENSIONER - TIMING BELT	Enquire	To Order
	LR123811	TENSIONER - TIMING BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124261	IDLER - DRIVE CHAIN	Enquire	To Order
	LR124261	IDLER - DRIVE CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073778	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order
	LR177463	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order
	LR177463	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR124262	ARM - TIMING CHAIN TENSIONER	Enquire	To Order
	LR124262	ARM - TIMING CHAIN TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125215	GUIDE - TIMING CHAIN	Enquire	To Order
	LR125215	GUIDE - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091745	GUIDE - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091747	ARM - TIMING CHAIN TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091746	GUIDE - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091574	JET - CHAIN LUBRICATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091575	JET - CHAIN LUBRICATING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR088515	BOLT	LR088515 BOLT Chain Guide, M8 X 17MM, Primary / From: JA000001	-	2	Enquire
HB3	LR091750	BOLT - SPECIAL	LR091750 BOLT - SPECIAL Variable Valve Timing Unit / From: JA000001 / To: KA842692	-	2	Enquire
HB3	LR127722	BOLT - SPECIAL	LR127722 BOLT - SPECIAL Variable Valve Timing Unit / From: KA842693	-	2	Enquire
HR1	LR095784	O-RING	LR095784 O-RING	-	2	Enquire
HR1	LR154974	O-RING	LR154974 O-RING	-	2	Enquire
HS1	LR073655	SCREW	LR073655 SCREW Chain Guide, Hexagonal Head, M6 X 20MM / From: JA000001	-	2	Enquire
HS2	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: JA000001	-	4	Enquire
HS3	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM, Tensioner / From: JA000001	-	2	Enquire
6C343	LR124261	IDLER - DRIVE CHAIN	LR124261 IDLER - DRIVE CHAIN Intermediate / From: JA000001 / To: JA804412	-	1	Enquire
6C343	LR124261	IDLER - DRIVE CHAIN	LR124261 IDLER - DRIVE CHAIN Intermediate / From: JA804413	-	1	Enquire
6K297A	LR124262	ARM - TIMING CHAIN TENSIONER	LR124262 ARM - TIMING CHAIN TENSIONER RH, Primary / From: JA000001 / To: JA804412	-	1	Enquire
6K297A	LR124262	ARM - TIMING CHAIN TENSIONER	LR124262 ARM - TIMING CHAIN TENSIONER RH, Primary / From: JA804413	-	1	Enquire
6K297B	LR125215	GUIDE - TIMING CHAIN	LR125215 GUIDE - TIMING CHAIN LH, Primary / From: JA000001 / To: KA839936	-	1	Enquire
6K297B	LR125215	GUIDE - TIMING CHAIN	LR125215 GUIDE - TIMING CHAIN LH, Primary / From: KA839937	-	1	Enquire
6K297C	LR091745	GUIDE - TIMING CHAIN	LR091745 GUIDE - TIMING CHAIN LH, Secondary / From: JA000001	-	1	Enquire
6K297D	LR091747	ARM - TIMING CHAIN TENSIONER	LR091747 ARM - TIMING CHAIN TENSIONER RH, Secondary / From: JA000001	-	1	Enquire
6K297E	LR091746	GUIDE - TIMING CHAIN	LR091746 GUIDE - TIMING CHAIN Secondary, Upper / From: JA000001	-	1	Enquire
6L292A	LR091574	JET - CHAIN LUBRICATING	LR091574 JET - CHAIN LUBRICATING Upper / From: JA000001	-	1	Enquire
6L292B	LR091575	JET - CHAIN LUBRICATING	LR091575 JET - CHAIN LUBRICATING Lower / From: JA000001	-	1	Enquire
6L713	LR073778	SOLENOID - ENGINE VARIABLE TIMING	LR073778 SOLENOID - ENGINE VARIABLE TIMING From: JA000001 / To: KA423211	-	2	Enquire
6L713	LR177463	SOLENOID - ENGINE VARIABLE TIMING	LR177463 SOLENOID - ENGINE VARIABLE TIMING From: KA423212 / To: MA999999	-	2	Enquire
6L713	LR177463	SOLENOID - ENGINE VARIABLE TIMING	LR177463 SOLENOID - ENGINE VARIABLE TIMING From: NA700000 / To: NA799999	-	2	Enquire
6L713	LR177463	SOLENOID - ENGINE VARIABLE TIMING	LR177463 SOLENOID - ENGINE VARIABLE TIMING From: NA200000 / To: NA207990	-	2	Enquire
6L713	LR162948	SOLENOID - ENGINE VARIABLE TIMING	LR162948 SOLENOID - ENGINE VARIABLE TIMING From: NA207991 / To: NA208038	-	2	Enquire
6L713	LR177463	SOLENOID - ENGINE VARIABLE TIMING	LR177463 SOLENOID - ENGINE VARIABLE TIMING From: NA208039 / To: NA699999	-	2	Enquire
6L713	LR177463	SOLENOID - ENGINE VARIABLE TIMING	LR177463 SOLENOID - ENGINE VARIABLE TIMING From: PA000001	-	2	Enquire
2069	LR073762	PIN - SPECIAL	LR073762 PIN - SPECIAL PIVOT / From: JA000001	-	1	Enquire
6256A	LR142281	SPROCKET - CAMSHAFT	LR142281 SPROCKET - CAMSHAFT Exhaust, Variable Valve Timing Unit / From: LA739604 / To: LA799999	-	1	Enquire
6256A	LR142281	SPROCKET - CAMSHAFT	LR142281 SPROCKET - CAMSHAFT Exhaust, Variable Valve Timing Unit / From: MA000001	-	1	Enquire
6256A	LR142281	SPROCKET - CAMSHAFT	LR142281 SPROCKET - CAMSHAFT Exhaust, Variable Valve Timing Unit / From: JA000001 / To: KA999999	-	1	Enquire
6256A	LR142281	SPROCKET - CAMSHAFT	LR142281 SPROCKET - CAMSHAFT Exhaust, Variable Valve Timing Unit / From: LA800000 / To: LA899999	-	1	Enquire
6256A	LR142281	SPROCKET - CAMSHAFT	LR142281 SPROCKET - CAMSHAFT Exhaust, Variable Valve Timing Unit / From: LA700000 / To: LA739603	-	1	Enquire
6256B	LR177463	SOLENOID - ENGINE VARIABLE TIMING	LR177463 SOLENOID - ENGINE VARIABLE TIMING Inlet, Variable Valve Timing Unit / From: LA739604 / To: LA799999	-	1	Enquire
6256B	LR177463	SOLENOID - ENGINE VARIABLE TIMING	LR177463 SOLENOID - ENGINE VARIABLE TIMING Inlet, Variable Valve Timing Unit / From: MA000001	-	1	Enquire
6256B	LR091759	SPROCKET - CAMSHAFT	LR091759 SPROCKET - CAMSHAFT Inlet, Variable Valve Timing Unit / From: JA000001 / To: KA999999	-	1	Enquire
6256B	LR091759	SPROCKET - CAMSHAFT	LR091759 SPROCKET - CAMSHAFT Inlet, Variable Valve Timing Unit / From: LA800000 / To: LA899999	-	1	Enquire
6256B	LR091759	SPROCKET - CAMSHAFT	LR091759 SPROCKET - CAMSHAFT Inlet, Variable Valve Timing Unit / From: LA700000 / To: LA739603	-	1	Enquire
6260A	LR091740	CHAIN - TIMING	LR091740 CHAIN - TIMING Lower, Primary / From: JA000001	-	1	Enquire
6260B	LR091742	CHAIN - TIMING	LR091742 CHAIN - TIMING Secondary, Upper / From: JA000001 / To: KA999999	-	1	Enquire
6260B	LR091742	CHAIN - TIMING	LR091742 CHAIN - TIMING Secondary, Upper / From: LA800000 / To: LA899999	-	1	Enquire
6260B	LR091742	CHAIN - TIMING	LR091742 CHAIN - TIMING Secondary, Upper / From: LA700000 / To: LA719102	-	1	Enquire
6260B	LR139321	CHAIN - DRIVE	LR139321 CHAIN - DRIVE Secondary, Upper / From: LA719103 / To: LA799999	-	1	Enquire
6260B	LR139321	CHAIN - DRIVE	LR139321 CHAIN - DRIVE Secondary, Upper / From: MA000001	-	1	Enquire
6284A	LR091743	TENSIONER - TIMING BELT	LR091743 TENSIONER - TIMING BELT Secondary / From: JA000001	-	1	Enquire
6284B	LR093825	TENSIONER - TIMING BELT	LR093825 TENSIONER - TIMING BELT Primary / From: JA000001 / To: KA817907	-	1	Enquire
6284B	LR123811	TENSIONER - TIMING BELT	LR123811 TENSIONER - TIMING BELT Primary / From: KA817908	-	1	Enquire
9232	LR073759	NUT - SPECIAL	LR073759 NUT - SPECIAL From: JA000001 / To: JA806825	-	1	Enquire
9232	LR120542	NUT - SPECIAL	LR120542 NUT - SPECIAL From: JA806826	-	1	Enquire
