Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMHA000001, (V) TOLA999999) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L...

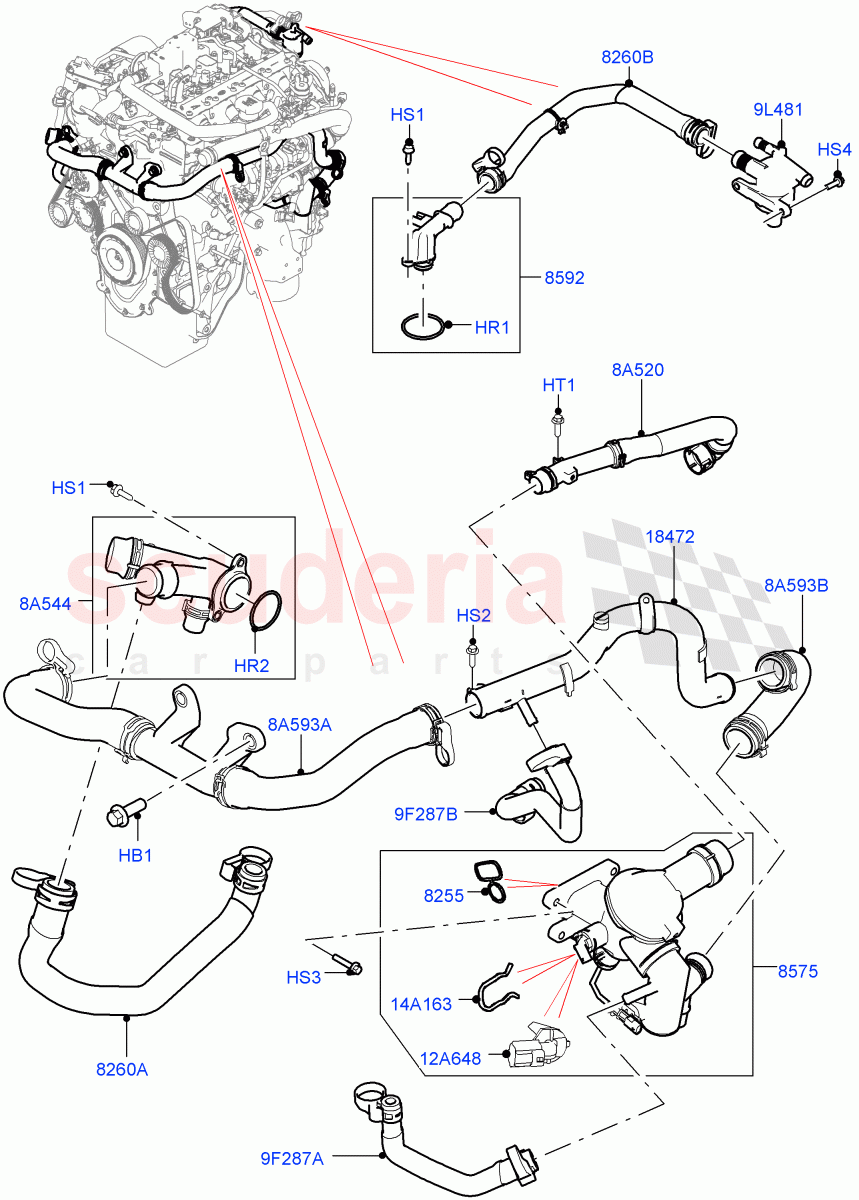

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR082795	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123819	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123822	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073689	SCREW	Enquire	To Order
	LR073689	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133081	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105592	SEAL - THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106640	THERMOSTAT AND HOUSING	Enquire	To Order
	LR106640	THERMOSTAT AND HOUSING	Enquire	To Order
	LR106640	THERMOSTAT AND HOUSING	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR171244	TUBE - WATER OUTLET	Enquire	To Order
	LR122821	TUBE - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111133	TUBE - BY-PASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110295	HOSE - WATER INLET	Enquire	To Order
	LR092094	HOSE - WATER INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108956	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093671	TUBE - OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR181890	TUBE - CONNECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093489	SEPARATOR - COOLANT DEGAS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105610	RETAINER - SENSOR CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100356	TUBE - BY-PASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092095	HOSE - WATER BY-PASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093484	HOSE - BYPASS VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093483	HOSE - AIR	Enquire	To Order
	LR115232	HOSE - BY-PASS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR082795	BOLT - HEX.HEAD	LR082795 BOLT - HEX.HEAD Hexagonal Head, M12 X 35MM / From: JA000001	-	1	Enquire
HR1	LR123819	O-RING	LR123819 O-RING Between Cylinder Head And Coolant Inlet Pipe / From: JA000001	-	1	Enquire
HR2	LR123822	O-RING	LR123822 O-RING EGR Cooler / From: JA000001	-	1	Enquire
HS1	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM, Outlet pipe / From: JA000001	-	1	Enquire
HS1	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM / From: JA000001	-	2	Enquire
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: JA000001	-	3	Enquire
HS3	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM, Thermostat To Engine / From: JA000001	-	4	Enquire
HS4	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM, Separator / From: JA000001	-	2	Enquire
HT1	LR133081	STUD	LR133081 STUD M6 X 26MM / From: JA000001	-	2	Enquire
8A520	LR093671	TUBE - OUTLET	LR093671 TUBE - OUTLET Outlet / From: JA000001	-	1	Enquire
8A544	LR181890	TUBE - CONNECTING	LR181890 TUBE - CONNECTING EGR Cooler / From: JA000001	-	1	Enquire
8A593A	LR100356	TUBE - BY-PASS	LR100356 TUBE - BY-PASS From: JA000001	-	1	Enquire
8A593B	LR092095	HOSE - WATER BY-PASS	LR092095 HOSE - WATER BY-PASS From: JA000001	-	1	Enquire
9F287A	LR093484	HOSE - BYPASS VALVE	LR093484 HOSE - BYPASS VALVE From: JA000001	-	1	Enquire
9F287B	LR093483	HOSE - AIR	LR093483 HOSE - AIR For Engine Serial Number Earlier Than ESN 180117Y0140PT204 / From: JA000001	-	1	Enquire
9F287B	LR115232	HOSE - BY-PASS	LR115232 HOSE - BY-PASS For Engine Serial Number Later Than ESN 180117Y0140PT204 / From: JA000001	-	1	Enquire
9L481	LR093489	SEPARATOR - COOLANT DEGAS	LR093489 SEPARATOR - COOLANT DEGAS From: JA000001	-	1	Enquire
12A648	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	LR105595 SENSOR - ENGINE COOLANT TEMPERATURE From: JA000001	-	1	Enquire
14A163	LR105610	RETAINER - SENSOR CLIP	LR105610 RETAINER - SENSOR CLIP From: JA000001	-	1	Enquire
8255	LR105592	SEAL - THERMOSTAT	LR105592 SEAL - THERMOSTAT Thermostat And Housing Assy / From: JA000001	-	1	Enquire
8260A	LR110295	HOSE - WATER INLET	LR110295 HOSE - WATER INLET From: JA810558	-	1	Enquire
8260A	LR092094	HOSE - WATER INLET	LR092094 HOSE - WATER INLET From: JA000001 / To: JA810557	-	1	Enquire
8260B	LR108956	HOSE	LR108956 HOSE Tube Water By-Pass / From: JA000001	-	1	Enquire
8575	LR106640	THERMOSTAT AND HOUSING	LR106640 THERMOSTAT AND HOUSING From: JA000001 / To: KA999999	-	1	Enquire
8575	LR106640	THERMOSTAT AND HOUSING	LR106640 THERMOSTAT AND HOUSING From: LA800000 / To: LA899999	-	1	Enquire
8575	LR106640	THERMOSTAT AND HOUSING	LR106640 THERMOSTAT AND HOUSING From: LA700000 / To: LA725020	-	1	Enquire
8575	LR106640	THERMOSTAT AND HOUSING	LR106640 THERMOSTAT AND HOUSING From: LA725021 / To: LA799999	-	1	Enquire
8575	LR106640	THERMOSTAT AND HOUSING	LR106640 THERMOSTAT AND HOUSING From: MA000001	-	1	Enquire
8592	LR171244	TUBE - WATER OUTLET	LR171244 TUBE - WATER OUTLET From: JA000001 / To: KA418301	-	1	Enquire
8592	LR122821	TUBE - WATER OUTLET	LR122821 TUBE - WATER OUTLET From: KA418302 / To: MA999999	-	1	Enquire
18472	LR111133	TUBE - BY-PASS	LR111133 TUBE - BY-PASS From: JA000001	-	1	Enquire
