Air Cleaner (2.0L Aj200P Hi Phev, 2.0L I4 High Dohc Aj200 Petrol) ((V) Fromja000001)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Air Cleaner (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR008793 SCREW $0.95 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
LR100411 CLEANER - AIR $468.93 To Order
Photo Part No Description Price (each) Stock
LR161843 FILTER - AIR CLEANER $59.29 IN STOCK
Photo Part No Description Price (each) Stock
LR100560 DUCT - AIR INTAKE $148.45 To Order
LR140965 TUBE - OUTLET $271.17 To Order
Photo Part No Description Price (each) Stock
LR111065 GUIDE - DIRTY AIR DUCT $22.52 To Order
Photo Part No Description Price (each) Stock
LR100435 DUCT - DIRTY AIR $136.03 To Order
Photo Part No Description Price (each) Stock
LR113348 GRILLE - DIRTY AIR DUCT $10.94 To Order
LR057623 GRILLE - DIRTY AIR DUCT $15.60 To Order
Photo Part No Description Price (each) Stock
LR100559 DUCT - AIR INTAKE $105.57 To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING $4.74 IN STOCK
Photo Part No Description Price (each) Stock
LR093998 SENSOR - MASS AIR FLOW $187.37 To Order
View All

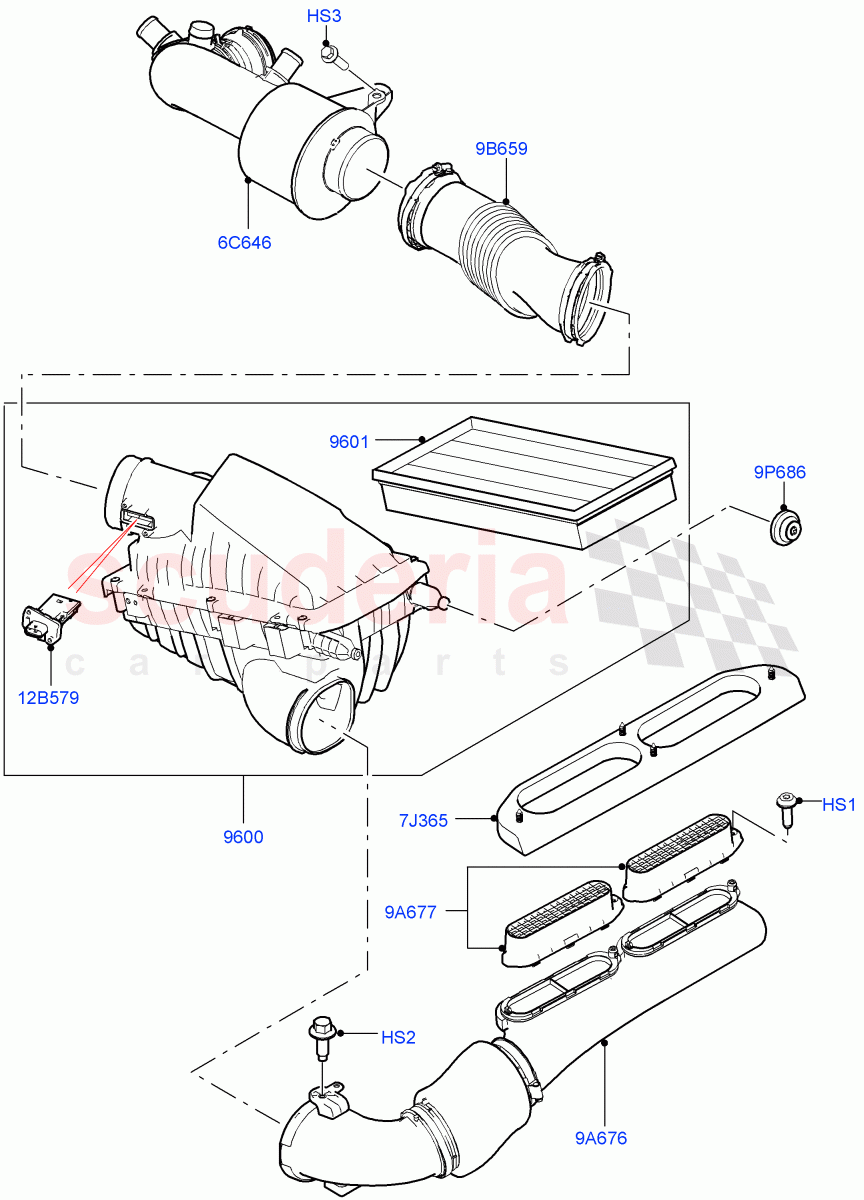

Air Cleaner (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR008793
SCREW
M5 X 16MM, Torx / From: JA000001 		$0.95 2
HS2 RYG500160
SCREW
Dirty Air Duct, Hexagonal Head, M6 X 14MM / From: JA000001 		$0.59 1
HS3 FS106256
SCREW
Air Duct, M6 x 25MM / From: JA000001 		$0.42 1
6C646 LR100560
DUCT - AIR INTAKE
From: JA000001 / To: LA999999 		$148.45 1
6C646 LR140965
TUBE - OUTLET
From: MA000001 		$271.17 1
7J365 LR111065
GUIDE - DIRTY AIR DUCT
Dirty Air Duct, Mounted To Hood / From: JA000001 		$22.52 1
9A676 LR100435
DUCT - DIRTY AIR
From: JA000001 		$136.03 1
9A677 LR113348
GRILLE - DIRTY AIR DUCT
LH Side Only, Open Type / From: JA000001 		$10.94 2
9A677 LR057623
GRILLE - DIRTY AIR DUCT
Blanked, RH Side Only / From: JA000001 		$15.60 2
9B659 LR100559
DUCT - AIR INTAKE
From: JA000001 		$105.57 1
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown / From: JA000001
IN STOCK 		$4.74 3
12B579 LR093998
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor / From: JA000001 		$187.37 1
9600 LR100411
CLEANER - AIR
From: JA000001 		$468.93 1
9601 LR161843
FILTER - AIR CLEANER
From: JA000001
IN STOCK 		$59.29 1
