Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Windscreen Washer

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR064186 CLIP Enquire To Order
LR085632 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR085574 GROMMET - WINDSHIELD WASHER PUMP Enquire To Order
LR085574 GROMMET - WINDSHIELD WASHER PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR038068 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR043545 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
LR080265 PLUG - BLANKING Enquire To Order
LR107637 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR080264 PLUG - BLANKING Enquire To Order
LR107638 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR001101 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR045321 JET - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR037583 FILLER NECK - WASHER RESERVOIR Enquire To Order
Photo Part No Description Price (each) Stock
LR037588 TUBE - FILLER NECK Enquire To Order
Photo Part No Description Price (each) Stock
LR037586 HOSE - WINDSHIELD WASHER Enquire To Order
LR137702 HOSE - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR054932 HOSE - WINDSHIELD WASHER Enquire To Order
LR054932 HOSE - WINDSHIELD WASHER Enquire To Order
LR070655 HOSE - WINDSHIELD WASHER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR054933 HOSE - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR045384 HOSE - REAR WASHER Enquire To Order
LR052992 HOSE - REAR WASHER Enquire To Order
LR056517 HOSE - REAR WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR044122 RESERVOIR - WINDSHIELD WASHER Enquire To Order
LR050572 RESERVOIR - WINDSHIELD WASHER Enquire To Order
LR050573 RESERVOIR - WINDSHIELD WASHER Enquire To Order
...and 14 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR037566 RESERVOIR - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR037573 MOTOR AND PUMP - FRONT/REAR WASHER Enquire To Order
LR079622 MOTOR AND PUMP - FRONT/REAR WASHER Enquire To Order
LR079904 MOTOR AND PUMP Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR037592 MOTOR AND PUMP - HEADLAMP WASHER Enquire To Order
LR089443 MOTOR AND PUMP - HEADLAMP WASHER Enquire To Order
LR089443 MOTOR AND PUMP - HEADLAMP WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR037584 CAP - FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR037568 SENSOR - WASHER FLUID LEVEL Enquire To Order
LR110605 SENSOR - WASHER FLUID LEVEL Enquire To Order
LR110605 SENSOR - WASHER FLUID LEVEL Enquire To Order
Photo Part No Description Price (each) Stock
LR063669 BRACKET - WASHER HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR037585 HOSE - WINDSHIELD WASHER Enquire To Order
LR070662 HOSE - WINDSHIELD WASHER Enquire To Order
LR098279 HOSE - WINDSHIELD WASHER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR048129 HOSE - WINDSHIELD WASHER Enquire To Order
LR063668 HOSE - WINDSHIELD WASHER Enquire To Order
View All

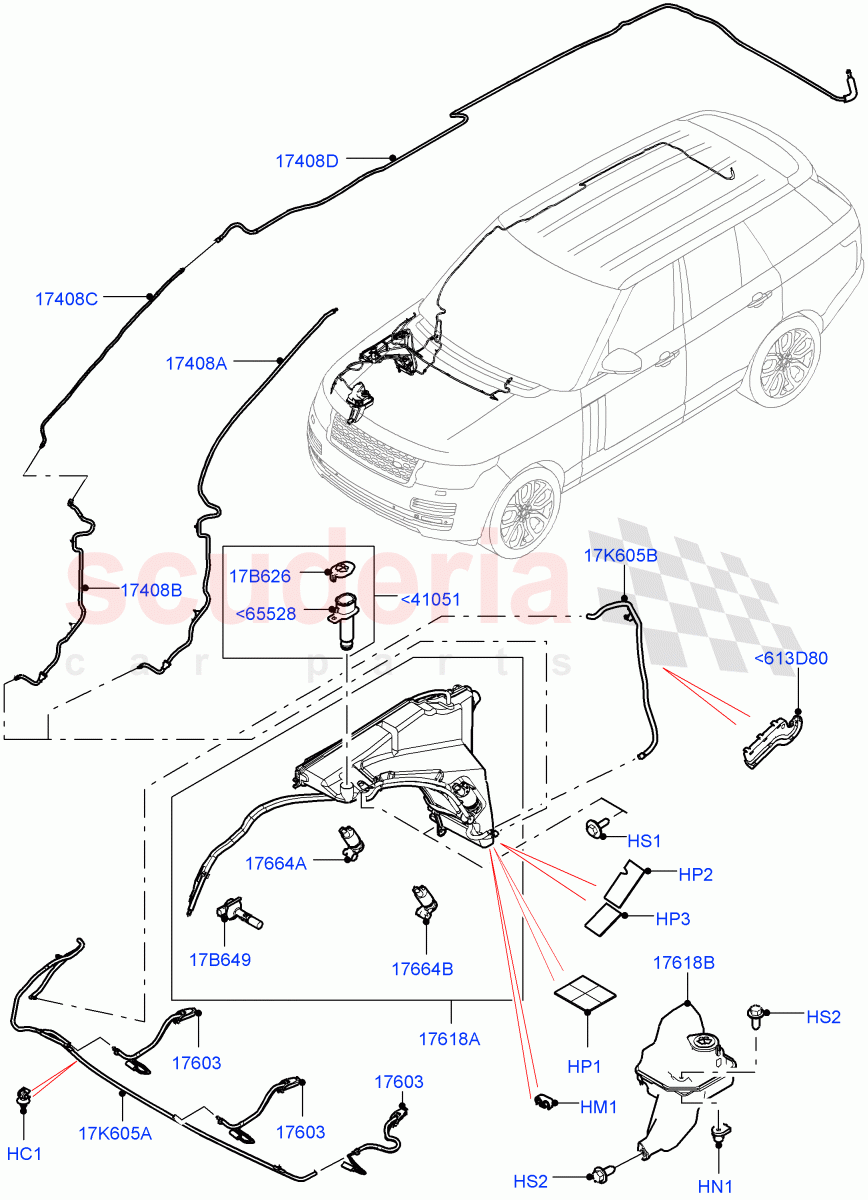

Windscreen Washer of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<613D80 LR063669
BRACKET - WASHER HOSE
From: FA000001 		- 1 Enquire
<41051 LR037583
FILLER NECK - WASHER RESERVOIR 		- 1 Enquire
<65528 LR037588
TUBE - FILLER NECK
Filler Neck 		- 1 Enquire
HC1 LR064186
CLIP
Support / From: FA000001 / To: GA999999 		- 2 Enquire
HC1 LR085632
CLIP
Support / From: HA000001 		- 2 Enquire
HM1 LR085574
GROMMET - WINDSHIELD WASHER PUMP
Regular Size Washer Tank, With Headlamp Power Wash / From: JA181794 / To: KA999999 		- 1 Enquire
HM1 LR085574
GROMMET - WINDSHIELD WASHER PUMP
With Headlamp Power Wash / From: LA000001 		- 1 Enquire
HN1 LR038068
NUT - SPECIAL
Large Size Washer Tank / Nut U Spring M6 Push On / To: KA999999 		- 1 Enquire
HP1 LR043545
PLUG
Reservoir - Windshield Washer / To: GA555294 		- 1 Enquire
HP2 LR080265
PLUG - BLANKING
Reservoir - Windshield Washer / From: GA555295 / To: HA999999 		- 1 Enquire
HP2 LR107637
PLUG - BLANKING
Reservoir - Windshield Washer / From: JA000001 		- 1 Enquire
HP3 LR080264
PLUG - BLANKING
Reservoir - Windshield Washer / From: GA555295 / To: HA162931 		- 1 Enquire
HP3 LR107638
PLUG - BLANKING
Reservoir - Windshield Washer / From: HA162932 		- 1 Enquire
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM, Reservoir - Windshield Washer 		- 2 Enquire
HS2 LR001101
SCREW
Large Size Washer Tank / 6X20, Hexagonal Head, Reservoir - Windshield Washer / To: KA999999 		- 2 Enquire
17B626 LR037584
CAP - FILLER
Filler Neck 		- 1 Enquire
17B649 LR037568
SENSOR - WASHER FLUID LEVEL
Regular Size Washer Tank, With Headlamp Power Wash / Sensor - Washer Fluid Level / To: HA181267 		- 1 Enquire
17B649 LR110605
SENSOR - WASHER FLUID LEVEL
Sensor - Washer Fluid Level / From: HA181268 / To: KA999999 		- 1 Enquire
17B649 LR110605
SENSOR - WASHER FLUID LEVEL
With Headlamp Power Wash / Sensor - Washer Fluid Level / From: LA000001 		- 1 Enquire
17K605A LR037585
HOSE - WINDSHIELD WASHER
To: FA999999 		- 1 Enquire
17K605A LR070662
HOSE - WINDSHIELD WASHER
From: GA000001 / To: GA541878 		- 1 Enquire
17K605A LR098279
HOSE - WINDSHIELD WASHER
From: JA000001 		- 1 Enquire
17K605A LR076478
HOSE - WINDSHIELD WASHER
From: GA541879 / To: HA999999 		- 1 Enquire
17K605B LR048129
HOSE - WINDSHIELD WASHER
Hose To Motor And Pump / To: EA999999 		- 1 Enquire
17K605B LR063668
HOSE - WINDSHIELD WASHER
Hose To Motor And Pump / From: FA000001 		- 1 Enquire
17408A LR037586
HOSE - WINDSHIELD WASHER
To: EA339832 		- 1 Enquire
17408A LR137702
HOSE - WINDSHIELD WASHER
Super Premium Audio 2500 W / From: LA000001 		- 1 Enquire
17408B LR054932
HOSE - WINDSHIELD WASHER
Lower / From: EA339833 / To: FA999999 		- 1 Enquire
17408B LR054932
HOSE - WINDSHIELD WASHER
RHD / Lower / From: GA000001 		- 1 Enquire
17408B LR070655
HOSE - WINDSHIELD WASHER
LHD / Lower / From: GA000001 / To: HA134078 		- 1 Enquire
17408B LR096447
HOSE - WINDSHIELD WASHER
LHD / Lower / From: HA134079 		- 1 Enquire
17408C LR054933
HOSE - WINDSHIELD WASHER
Upper / From: EA339833 		- 1 Enquire
17408D LR045384
HOSE - REAR WASHER
Headliner / To: EA300730 		- 1 Enquire
17408D LR052992
HOSE - REAR WASHER
Headliner / From: EA300731 / To: EA327588 		- 1 Enquire
17408D LR056517
HOSE - REAR WASHER
Headliner / From: EA327589 		- 1 Enquire
17603 LR045321
JET - WINDSHIELD WASHER 		- 3 Enquire
17618A LR044122
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer, Regular Size Washer Tank / To: FA512128 		- 1 Enquire
17618A LR050572
RESERVOIR - WINDSHIELD WASHER
Regular Size Washer Tank, With Headlamp Power Wash / To: FA512128 		- 1 Enquire
17618A LR050573
RESERVOIR - WINDSHIELD WASHER
Large Size Washer Tank / To: FA512128 		- 1 Enquire
17618A LR076504
RESERVOIR - WINDSHIELD WASHER
Large Size Washer Tank / From: FA512129 / To: FA999999 		- 1 Enquire
17618A LR075624
RESERVOIR - WINDSHIELD WASHER
Regular Size Washer Tank, With Headlamp Power Wash / From: FA512129 / To: FA999999 		- 1 Enquire
17618A LR070882
RESERVOIR - WINDSHIELD WASHER
Regular Size Washer Tank, With Headlamp Power Wash / From: GA000001 / To: HA170451 		- 1 Enquire
17618A LR070884
RESERVOIR - WINDSHIELD WASHER
Large Size Washer Tank / From: GA000001 / To: GA784311 		- 1 Enquire
17618A LR076509
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer, Regular Size Washer Tank / From: FA512129 / To: FA999999 		- 1 Enquire
17618A LR070883
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer, Regular Size Washer Tank / From: GA000001 / To: HA170451 		- 1 Enquire
17618A LR108238
RESERVOIR - WINDSHIELD WASHER
Regular Size Washer Tank, With Headlamp Power Wash / From: HA170452 / To: HA671351 		- 1 Enquire
17618A LR108239
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer, Regular Size Washer Tank / From: HA170452 / To: HA671351 		- 1 Enquire
17618A LR098278
RESERVOIR - WINDSHIELD WASHER
Large Size Washer Tank / From: JA000001 / To: KA999999 		- 1 Enquire
17618A LR110607
RESERVOIR - WINDSHIELD WASHER
Regular Size Washer Tank, With Headlamp Power Wash / From: HA671352 / To: HA999999 		- 1 Enquire
17618A LR110608
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer, Regular Size Washer Tank / From: HA671352 		- 1 Enquire
17618A LR118191
RESERVOIR - WINDSHIELD WASHER
Large Size Washer Tank / From: GA784312 / To: HA999999 		- 1 Enquire
17618A LR110609
RESERVOIR - WINDSHIELD WASHER
Regular Size Washer Tank, With Headlamp Power Wash / From: JA000001 / To: KA999999 		- 1 Enquire
17618A LR110609
RESERVOIR - WINDSHIELD WASHER
With Headlamp Power Wash / From: LA000001 		- 1 Enquire
17618B LR037566
RESERVOIR - WINDSHIELD WASHER
Large Size Washer Tank / To: KA999999 		- 1 Enquire
17664A LR037573
MOTOR AND PUMP - FRONT/REAR WASHER
Front And Rear, Windshield / To: FA999999 		- 1 Enquire
17664A LR079622
MOTOR AND PUMP - FRONT/REAR WASHER
Regular Size Washer Tank, With Headlamp Power Wash / From: GA000001 / To: HA999999 		- 1 Enquire
17664A LR079904
MOTOR AND PUMP
Less Headlamp Washer, Regular Size Washer Tank / From: GA000001 / To: HA999999 		- 1 Enquire
17664A LR079904
MOTOR AND PUMP
Less Headlamp Washer, Regular Size Washer Tank / From: JA000001 / To: KA999999 		- 1 Enquire
17664A LR079904
MOTOR AND PUMP
With Headlamp Power Wash / From: LA000001 		- 1 Enquire
17664B LR037592
MOTOR AND PUMP - HEADLAMP WASHER
Regular Size Washer Tank, With Headlamp Power Wash / Headlamp / To: HA999999 		- 1 Enquire
17664B LR089443
MOTOR AND PUMP - HEADLAMP WASHER
Regular Size Washer Tank, With Headlamp Power Wash / Headlamp / From: JA000001 / To: KA999999 		- 1 Enquire
17664B LR089443
MOTOR AND PUMP - HEADLAMP WASHER
With Headlamp Power Wash / Headlamp / From: LA000001 		- 1 Enquire
