Active Anti-Roll Bar System (ARC Pipes, Rear) (With ACE Suspension) ((V) TOJA999999) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Active Anti-Roll Bar System (ARC Pipes, Rear) (With ACE Suspension) ((V) TOJA999999)

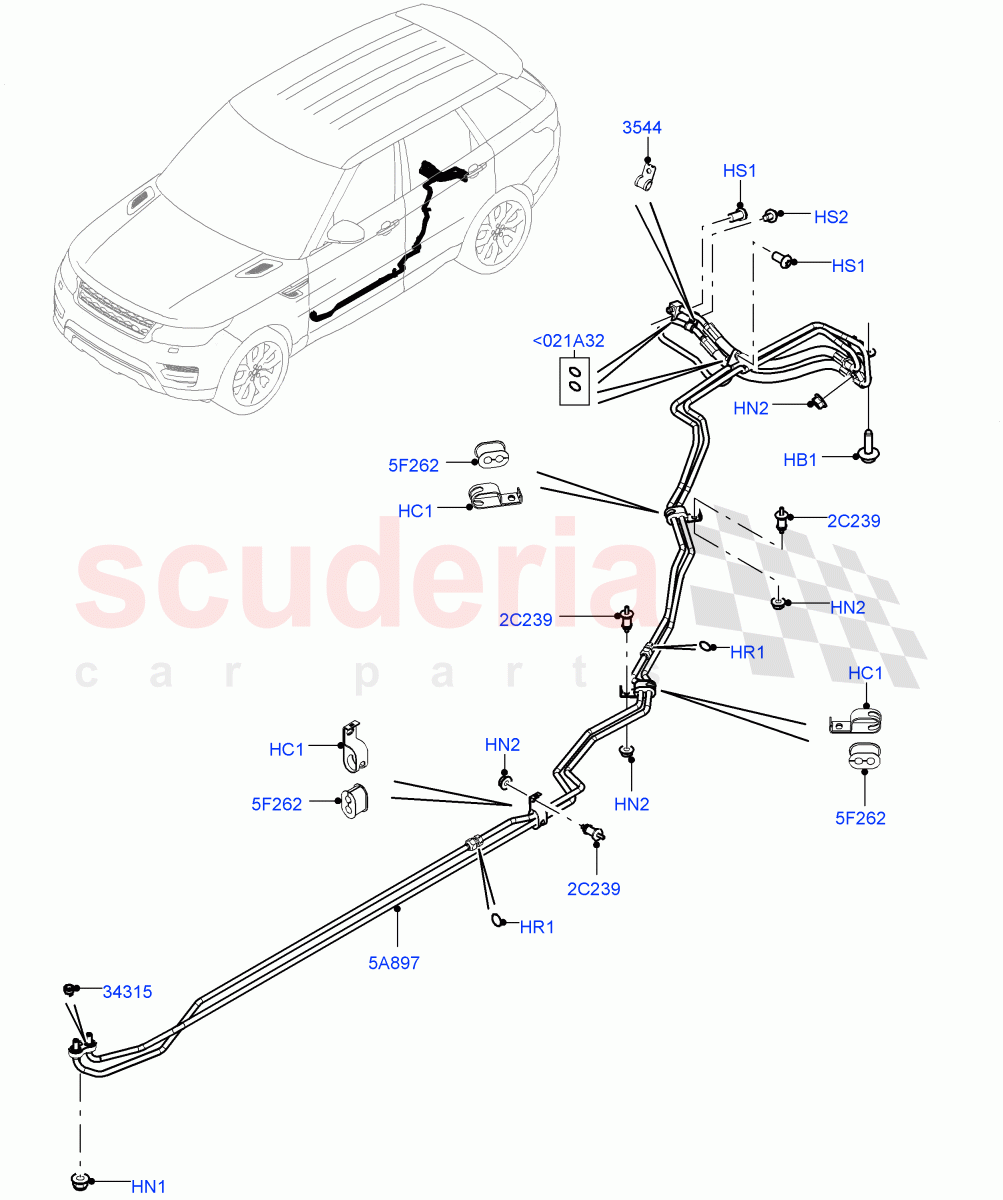

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR025399	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR6702	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY108046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052806	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500060	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FA106126	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052695	CLAMP - TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038632	INSULATOR - ARB PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQR500010	COLLET - ARB PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085489	TUBE - ACTIVE ROLL BAR SYSTEM	Enquire	To Order
	LR085489	TUBE - ACTIVE ROLL BAR SYSTEM	Enquire	To Order
	LR085489	TUBE - ACTIVE ROLL BAR SYSTEM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ANR6704	MOUNTING - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085487	KIT - SEAL	Enquire	To Order
	LR085487	KIT - SEAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<021A32	LR085487	KIT - SEAL	LR085487 KIT - SEAL Includes Backup Ring / To: GA568679	-	2	Enquire
<021A32	LR085487	KIT - SEAL	LR085487 KIT - SEAL Includes Backup Ring / From: GA568680	-	2	Enquire
HB1	LR025399	BOLT	LR025399 BOLT HEX Flange, M8 X 25MM	-	1	Enquire
HC1	ANR6702	CLIP	ANR6702 CLIP Double	-	3	Enquire
HN1	FY108046	NUT - HEX.	FY108046 NUT - HEX. HEX Flange, M8	-	1	Enquire
HN2	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6	-	4	Enquire
HR1	LR052806	O-RING	LR052806 O-RING ARC Pipes	-	2	Enquire
HS1	RYP500060	SCREW	RYP500060 SCREW M8 X 16MM, Torx	-	2	Enquire
HS2	FA106126	SCREW	FA106126 SCREW HEX Flange, Hexagonal Head, M6 x 12MM	-	1	Enquire
2C239	LR038632	INSULATOR - ARB PIPE	LR038632 INSULATOR - ARB PIPE	-	3	Enquire
5A897	LR085489	TUBE - ACTIVE ROLL BAR SYSTEM	LR085489 TUBE - ACTIVE ROLL BAR SYSTEM ARC Pipes / To: EA305340	-	1	Enquire
5A897	LR085489	TUBE - ACTIVE ROLL BAR SYSTEM	LR085489 TUBE - ACTIVE ROLL BAR SYSTEM ARC Pipes / From: EA305341 / To: EA369634	-	1	Enquire
5A897	LR085489	TUBE - ACTIVE ROLL BAR SYSTEM	LR085489 TUBE - ACTIVE ROLL BAR SYSTEM ARC Pipes / From: EA369635 / To: GA569191	-	1	Enquire
5A897	LR085489	TUBE - ACTIVE ROLL BAR SYSTEM	LR085489 TUBE - ACTIVE ROLL BAR SYSTEM ARC Pipes / From: GA569192	-	1	Enquire
5F262	ANR6704	MOUNTING - RUBBER	ANR6704 MOUNTING - RUBBER Double	-	3	Enquire
3544	LR052695	CLAMP - TUBE	LR052695 CLAMP - TUBE Includes Bush	-	1	Enquire
34315	RQR500010	COLLET - ARB PIPE	RQR500010 COLLET - ARB PIPE	-	2	Enquire
