Gear Change-Automatic Transmission (4.4L Dohc Ditc V8 Diesel, 8 Speed Auto Trans Zf 8Hp76) ((V)...

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Gear Change-Automatic Transmission (4.4L DOHC DITC V8 Diesel, 8 Speed Auto Trans ZF 8HP76) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR047810 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR011519 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
VYH500020 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYG501590 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR022943 LEVER - GEAR SHIFT Enquire To Order
Photo Part No Description Price (each) Stock
LR106994 BRACKET - CABLE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR113155 MODULE - TRANSFER SHIFT CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR106795 CABLE - SELECTOR LEVER CONTROL Enquire To Order
View All

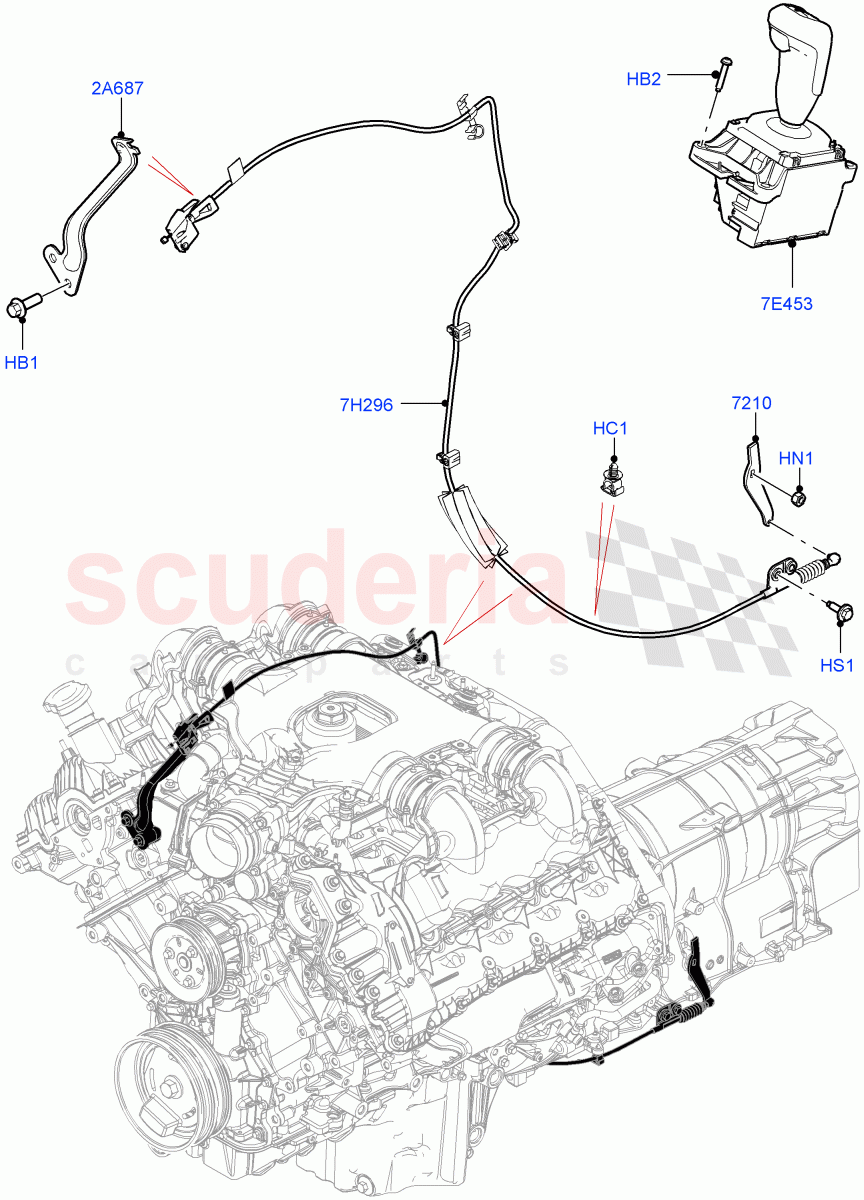

Gear Change-Automatic Transmission (4.4L DOHC DITC V8 Diesel, 8 Speed Auto Trans ZF 8HP76) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108256
BOLT
Bracket, Hexagonal Head, M8 X 25MM / From: KA000001 		- 2 Enquire
HB2 LR047810
BOLT
M5 x 25 / From: KA000001 		- 4 Enquire
HC1 LR011519
CLIP
9.5 X 6 X 2 / From: KA000001 		- 3 Enquire
HN1 VYH500020
NUT - HEX.
M8 x 1.0MM / From: KA000001 		- 1 Enquire
HS1 RYG501590
SCREW
Hexagonal Head, M6 X 20MM, To Transmission / From: KA000001 		- 2 Enquire
2A687 LR106994
BRACKET - CABLE SUPPORT
From: KA000001 		- 1 Enquire
7E453 LR113155
MODULE - TRANSFER SHIFT CONTROL
For "P" Button Delamination / Peeling See LTB 00898, For "Trigger" Button Breaking Use LR117072 / From: KA000001 		- 1 Enquire
7H296 LR106795
CABLE - SELECTOR LEVER CONTROL
From: KA000001 		- 1 Enquire
7210 LR022943
LEVER - GEAR SHIFT
From: KA000001 		- 1 Enquire
