Name: Oil Pan/Oil Level Indicator (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

Oil Pan/Oil Level Indicator (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Oil Pan/Oil Level Indicator (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID...

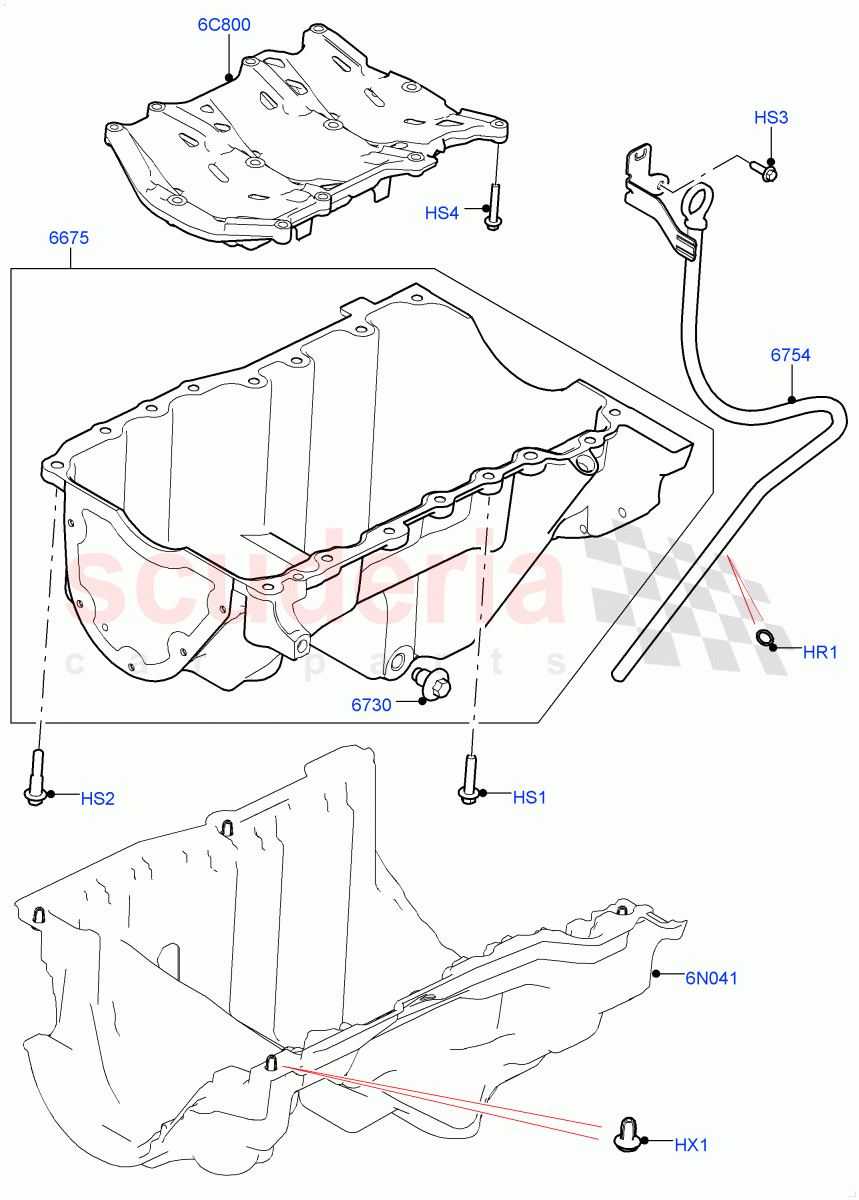

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR074127	O-RING	$4.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	$2.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085937	PAN - ENGINE OIL	$745.68	To Order
	LR154108	PAN - ENGINE OIL	$745.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154091	PLUG - OIL DRAIN	$13.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085936	TUBE - OIL LEVEL INDICATOR	$62.55	To Order
	LR112100	TUBE - OIL LEVEL INDICATOR	$55.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085474	TRAY - WINDAGE	$423.31	To Order
	LR130052	TRAY - WINDAGE	$356.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082530	INSULATOR - ENGINE COMPARTMENT	$57.19	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR074127	O-RING	LR074127 O-RING 11.5 x 2 mm, Tube Indicator / From: HA000001	$4.96	1
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm / From: HA000001	$2.26	14
HS2	LR073677	SCREW	LR073677 SCREW M8 x 42mm / From: HA000001	$3.30	2
HS3	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: HA000001	$2.23	1
HS4	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray / From: HA000001	$2.20	12
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5 / From: HA000001	$2.92	4
6C800	LR085474	TRAY - WINDAGE	LR085474 TRAY - WINDAGE From: HA000001 / To: LA894830	$423.31	1
6C800	LR130052	TRAY - WINDAGE	LR130052 TRAY - WINDAGE From: LA894831	$356.36	1
6N041	LR082530	INSULATOR - ENGINE COMPARTMENT	LR082530 INSULATOR - ENGINE COMPARTMENT Oil Pan / From: HA000001	$57.19	1
6675	LR085937	PAN - ENGINE OIL	LR085937 PAN - ENGINE OIL From: HA000001 / To: MA768684	$745.68	1
6675	LR154108	PAN - ENGINE OIL	LR154108 PAN - ENGINE OIL From: MA768685	$745.68	1
6730	LR154091	PLUG - OIL DRAIN	LR154091 PLUG - OIL DRAIN From: HA000001	$13.95	1
6754	LR085936	TUBE - OIL LEVEL INDICATOR	LR085936 TUBE - OIL LEVEL INDICATOR From: HA000001 / To: JA174256	$62.55	1
6754	LR112100	TUBE - OIL LEVEL INDICATOR	LR112100 TUBE - OIL LEVEL INDICATOR From: JA174257	$55.57	1
