Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 Dsl High Dohc Aj200, Rhd) ((V)...

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, RHD) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR049402 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
LR087667 CLIP - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR073649 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073666 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR087668 PUMP - OIL & VACUUM Enquire To Order
LR110501 PUMP - OIL & VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR081604 GROMMET - BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR082320 HOSE - VACUUM CONTROL HARNESS Enquire To Order
LR100558 HOSE - VACUUM CONTROL HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
LR081631 SENSOR - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR087512 HOSE - VACUUM Enquire To Order
LR099159 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR082299 RESERVOIR - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR073665 CONNECTOR - VACUUM TUBE Enquire To Order
LR148195 CONNECTOR - VACUUM TUBE Enquire To Order
View All

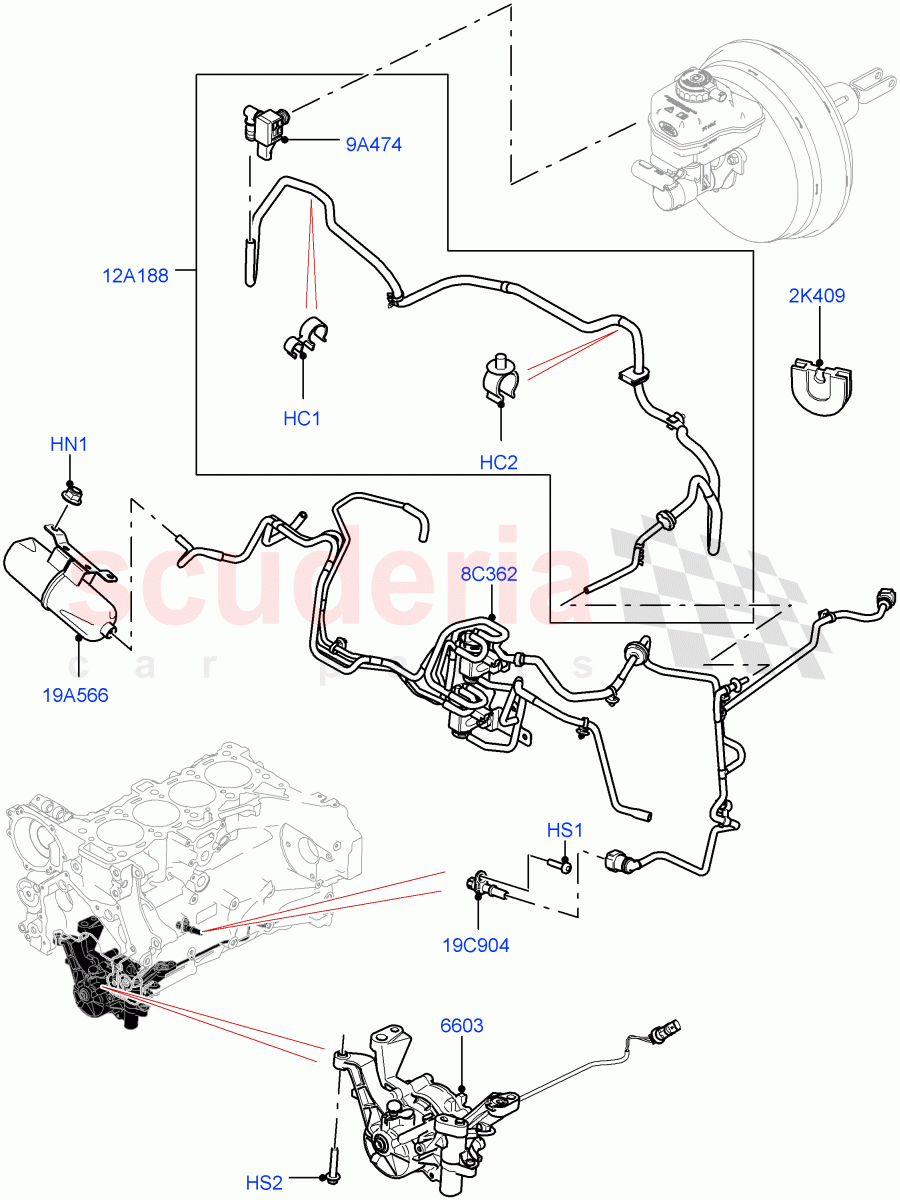

Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, RHD) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR049402
CLIP - DOUBLE
Double, To Vacuum Hose / From: HA000001 		- 1 Enquire
HC2 LR087667
CLIP - SPECIAL
To Vacuum Hose / From: HA000001 		- 1 Enquire
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6, Reservoir / From: HA000001 		- 2 Enquire
HS1 LR073649
SCREW
M8 x 40MM, Pump - Vacuum / From: HA000001 		- 4 Enquire
HS2 LR073666
SCREW
M5 x 20MM, Vacuum Connector / From: HA000001 		- 1 Enquire
2K409 LR081604
GROMMET - BRAKE PIPE
Blanking / From: HA000001 		- 1 Enquire
8C362 LR082320
HOSE - VACUUM CONTROL HARNESS
EU6 + DPF Emissions / Vacuum Control Harness / From: HA000001 		- 1 Enquire
8C362 LR100558
HOSE - VACUUM CONTROL HARNESS
EU6D Diesel + DPF Emissions / Vacuum Control Harness / From: JA000001 		- 1 Enquire
9A474 LR081631
SENSOR - VACUUM
From: HA000001 		- 1 Enquire
12A188 LR087512
HOSE - VACUUM
To Brake Booster / From: HA000001 / To: HA999999 		- 1 Enquire
12A188 LR099159
HOSE - VACUUM
To Brake Booster / From: JA000001 		- 1 Enquire
19A566 LR082299
RESERVOIR - VACUUM
From: HA000001 		- 1 Enquire
19C904 LR073665
CONNECTOR - VACUUM TUBE
From: HA000001 / To: MA759114 		- 1 Enquire
19C904 LR148195
CONNECTOR - VACUUM TUBE
From: MA759115 		- 1 Enquire
6603 LR087668
PUMP - OIL & VACUUM
From: HA000001 / To: JA183342 		- 1 Enquire
6603 LR110501
PUMP - OIL & VACUUM
From: JA183343 		- 1 Enquire
