Name: Crankshaft/Pistons And Bearings (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

Crankshaft/Pistons And Bearings (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Crankshaft/Pistons And Bearings (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL...

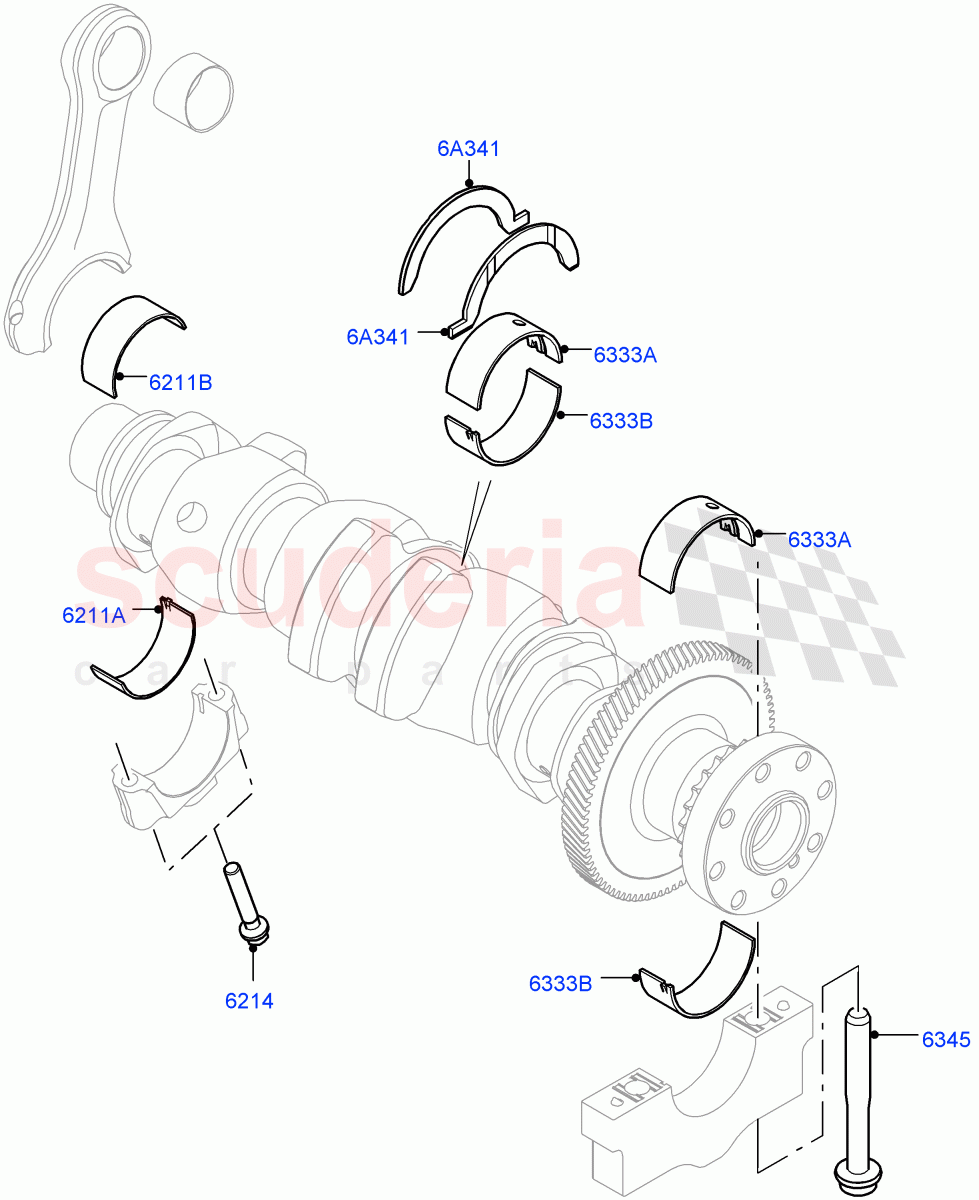

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR092624	BOLT - CONNECTING ROD	$4.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR083619	BOLT - BEARING CAP - HEX. HEAD	$8.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082377	BEARING - CONNECTING ROD	$25.23	To Order
	LR082378	BEARING - CONNECTING ROD	$25.23	To Order
	LR082379	BEARING - CONNECTING ROD	$25.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082380	BEARING - CONNECTING ROD	$25.23	To Order
	LR082381	BEARING - CONNECTING ROD	$25.23	To Order
	LR082382	BEARING - CONNECTING ROD	$25.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082363	BEARING - CRANKSHAFT MAIN	$14.10	To Order
	LR082365	BEARING - CRANKSHAFT MAIN	$14.37	To Order
	LR082367	BEARING - CRANKSHAFT MAIN	$14.37	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082356	BEARING - CRANKSHAFT MAIN	$14.10	To Order
	LR082358	BEARING - CRANKSHAFT MAIN	$14.10	To Order
	LR082359	BEARING - CRANKSHAFT MAIN	$13.83	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082353	WASHER - CRANKSHAFT MAIN BRG THRUST	$4.61	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6A341	LR082353	WASHER - CRANKSHAFT MAIN BRG THRUST	LR082353 WASHER - CRANKSHAFT MAIN BRG THRUST 2.0L I4 DSL HIGH DOHC AJ200 / From: HA000001	$4.61	2
6211A	LR082377	BEARING - CONNECTING ROD	LR082377 BEARING - CONNECTING ROD 2.0L I4 DSL HIGH DOHC AJ200 / Lower, Red / From: HA000001	$25.23	4
6211A	LR082378	BEARING - CONNECTING ROD	LR082378 BEARING - CONNECTING ROD 2.0L I4 DSL HIGH DOHC AJ200 / Lower, Yellow / From: HA000001	$25.23	4
6211A	LR082379	BEARING - CONNECTING ROD	LR082379 BEARING - CONNECTING ROD 2.0L I4 DSL HIGH DOHC AJ200 / Blue, Lower / From: HA000001	$25.23	4
6211B	LR082380	BEARING - CONNECTING ROD	LR082380 BEARING - CONNECTING ROD 2.0L I4 DSL HIGH DOHC AJ200 / Red, Upper / From: HA000001	$25.23	4
6211B	LR082381	BEARING - CONNECTING ROD	LR082381 BEARING - CONNECTING ROD 2.0L I4 DSL HIGH DOHC AJ200 / Upper, Yellow / From: HA000001	$25.23	4
6211B	LR082382	BEARING - CONNECTING ROD	LR082382 BEARING - CONNECTING ROD 2.0L I4 DSL HIGH DOHC AJ200 / Blue, Upper / From: HA000001	$25.23	4
6214	LR092624	BOLT - CONNECTING ROD IN STOCK	LR092624 BOLT - CONNECTING ROD From: HA000001 IN STOCK	$4.04	8
6333A	LR082363	BEARING - CRANKSHAFT MAIN	LR082363 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Red, Upper / From: HA000001 / To: JA183342	$14.10	5
6333A	LR082365	BEARING - CRANKSHAFT MAIN	LR082365 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Upper, Yellow / From: HA000001 / To: JA183342	$14.37	5
6333A	LR082367	BEARING - CRANKSHAFT MAIN	LR082367 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Blue, Upper / From: HA000001 / To: JA183342	$14.37	5
6333A	LR082369	BEARING - CRANKSHAFT MAIN	LR082369 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Green, Upper / From: HA000001 / To: JA183342	$14.37	5
6333A	LR111072	BEARING - CRANKSHAFT MAIN	LR111072 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Red, Upper / From: JA183343	$14.10	5
6333A	LR111073	BEARING - CRANKSHAFT MAIN	LR111073 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Upper, Yellow / From: JA183343	$14.37	5
6333A	LR111074	BEARING - CRANKSHAFT MAIN	LR111074 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Blue, Upper / From: JA183343	$14.37	5
6333B	LR082356	BEARING - CRANKSHAFT MAIN	LR082356 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Lower, Red / From: HA000001 / To: JA183342	$14.10	5
6333B	LR082358	BEARING - CRANKSHAFT MAIN	LR082358 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Lower, Yellow / From: HA000001 / To: JA183342	$14.10	5
6333B	LR082359	BEARING - CRANKSHAFT MAIN	LR082359 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Blue, Lower / From: HA000001 / To: JA183342	$13.83	5
6333B	LR082361	BEARING - CRANKSHAFT MAIN	LR082361 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Green, Lower / From: HA000001 / To: JA183342	$14.10	5
6333B	LR111062	BEARING - CRANKSHAFT MAIN	LR111062 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Lower, Red / From: JA183343	$14.10	5
6333B	LR111063	BEARING - CRANKSHAFT MAIN	LR111063 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Lower, Yellow / From: JA183343	$14.10	5
6333B	LR111064	BEARING - CRANKSHAFT MAIN	LR111064 BEARING - CRANKSHAFT MAIN 2.0L I4 DSL HIGH DOHC AJ200 / Blue, Lower / From: JA183343	$13.83	5
6345	LR083619	BOLT - BEARING CAP - HEX. HEAD	LR083619 BOLT - BEARING CAP - HEX. HEAD From: HA000001	$8.40	10
