Steering Gear ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

View All

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Steering Gear ((V) TO9A999999)

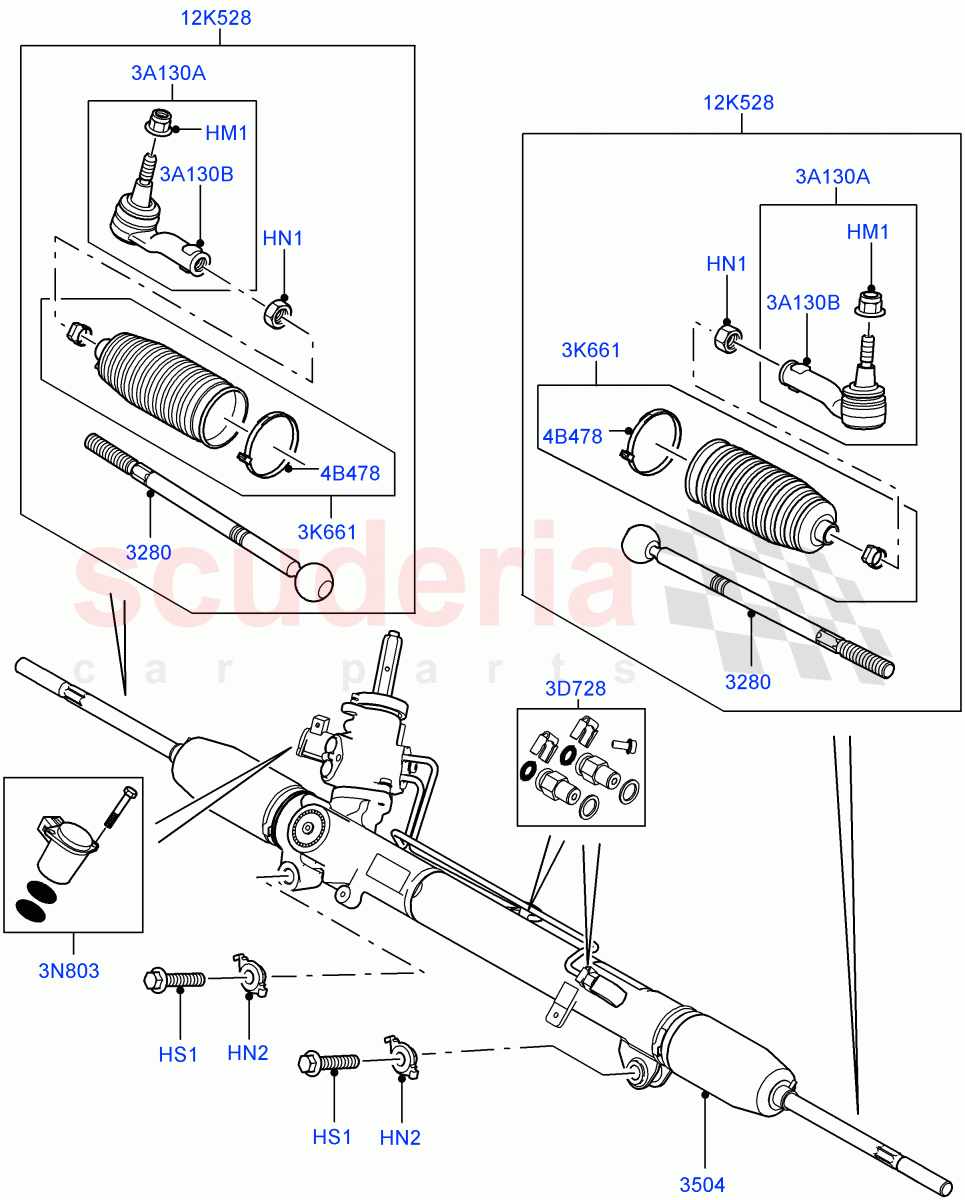

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	Enquire	To Order
	QYH500160	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QYH500040	NUT	Enquire	To Order
	QYH000021	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500012	NUT - FLANGED	Enquire	To Order
	LR017002	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FC114137	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QFK500030	ROD - SPINDLE CONNECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QEB500414	GEAR - STEERING	Enquire	To Order
	QEB500424	GEAR - STEERING	Enquire	To Order
	QEB500425	GEAR - STEERING	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	QFW500030	KIT - STEERING GEAR REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QFW500020	BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010373	ACTUATOR	Enquire	To Order
	LR010372	ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032372	CLAMP - BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010673	KIT - STEERING GEAR TIE ROD REPAIR	Enquire	To Order
	LR010674	KIT - STEERING GEAR TIE ROD REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010676	JOINT - BALL	Enquire	To Order
	LR010675	JOINT - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QJB500040	SPINDLE ROD CONNECTING	Enquire	To Order
	QJB500070	END - SPINDLE ROD CONNECTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HM1	FY112056	NUT - HEX.	FY112056 NUT - HEX. Hex Nut Type, M12 X 1.75MM, Vehicle With M12 Outer Ball Joint / To: 9A191791	-	2	Enquire
HM1	QYH500160	NUT - FLANGED	QYH500160 NUT - FLANGED M14, Vehicle With M14 Outer Ball Joint / From: 9A191792	-	2	Enquire
HN1	QYH500040	NUT	QYH500040 NUT Locking / To: 9A201616	-	2	Enquire
HN1	QYH000021	NUT	QYH000021 NUT Locking, M16 / From: 9A201617	-	2	Enquire
HN2	RYH500012	NUT - FLANGED	RYH500012 NUT - FLANGED M14 / To: 8A999999	-	2	Enquire
HN2	LR017002	NUT	LR017002 NUT M14 / From: 9A000001	-	2	Enquire
HS1	FC114137	BOLT	FC114137 BOLT M14	-	2	Enquire
3A130A	LR010676	JOINT - BALL	LR010676 JOINT - BALL Includes attaching nut, Vehicle With M14 Outer Ball Joint / From: 9A191792	-	2	Enquire
3A130A	LR010675	JOINT - BALL	LR010675 JOINT - BALL Includes attaching nut, Vehicle With M12 Outer Ball Joint / To: 9A191791	-	2	Enquire
3A130B	QJB500040	SPINDLE ROD CONNECTING	QJB500040 SPINDLE ROD CONNECTING Vehicle With M12 Outer Ball Joint / To: 9A191791	-	2	Enquire
3A130B	QJB500070	END - SPINDLE ROD CONNECTING	QJB500070 END - SPINDLE ROD CONNECTING Vehicle With M14 Outer Ball Joint / From: 9A191792	-	2	Enquire
3D728	QFW500030	KIT - STEERING GEAR REPAIR	QFW500030 KIT - STEERING GEAR REPAIR Kit Contains: 2 X Clip, 2 X Wagner Valve, 2 X Sealing Washer, 4 X O-Ring, 1 X Locking Screw, Please Refer To TOPIx - SSM49497 Or LTB00021, Service Kit For Wagner Valves On Steering Rack	-	1	Enquire
3K661	QFW500020	BOOT	QFW500020 BOOT	-	1	Enquire
3N803	LR010373	ACTUATOR	LR010373 ACTUATOR LHD	-	1	Enquire
3N803	LR010372	ACTUATOR	LR010372 ACTUATOR RHD	-	1	Enquire
4B478	LR032372	CLAMP - BOOT	LR032372 CLAMP - BOOT BIG	-	2	Enquire
12K528	LR010673	KIT - STEERING GEAR TIE ROD REPAIR	LR010673 KIT - STEERING GEAR TIE ROD REPAIR Vehicle With M14 Outer Ball Joint / From: 9A191792	-	2	Enquire
12K528	LR010674	KIT - STEERING GEAR TIE ROD REPAIR	LR010674 KIT - STEERING GEAR TIE ROD REPAIR Vehicle With M12 Outer Ball Joint / To: 9A191791	-	2	Enquire
3280	QFK500030	ROD - SPINDLE CONNECTING	QFK500030 ROD - SPINDLE CONNECTING	-	2	Enquire
3504	QEB500414	GEAR - STEERING	QEB500414 GEAR - STEERING RHD / New Part-Please Check For Reman Version, Vehicle With M12 Outer Ball Joint / To: 5A905181	-	1	Enquire
3504	QEB500424	GEAR - STEERING	QEB500424 GEAR - STEERING LHD / New Part-Please Check For Reman Version, Vehicle With M12 Outer Ball Joint / To: 5A905181	-	1	Enquire
3504	QEB500425	GEAR - STEERING	QEB500425 GEAR - STEERING LHD / New Part-Please Check For Reman Version, Vehicle With M12 Outer Ball Joint / From: 5A905182 / To: 6A916356	-	1	Enquire
3504	QEB500415	GEAR - STEERING	QEB500415 GEAR - STEERING RHD / New Part-Please Check For Reman Version, Vehicle With M12 Outer Ball Joint / From: 5A905182 / To: 6A916356	-	1	Enquire
3504	QEB500416	GEAR - STEERING	QEB500416 GEAR - STEERING RHD / New Part-Please Check For Reman Version, Vehicle With M12 Outer Ball Joint / From: 6A916357 / To: 6A999999	-	1	Enquire
3504	QEB500426	GEAR - STEERING	QEB500426 GEAR - STEERING LHD / New Part-Please Check For Reman Version, Vehicle With M12 Outer Ball Joint / From: 6A916357 / To: 6A999999	-	1	Enquire
3504	QEB500417	RACK - STEERING GEAR	QEB500417 RACK - STEERING GEAR RHD / New Part-Please Check For Reman Version, Vehicle With M12 Outer Ball Joint / From: 7A000001 / To: 8A999999	-	1	Enquire
3504	QEB500427	RACK - STEERING GEAR	QEB500427 RACK - STEERING GEAR LHD / New Part-Please Check For Reman Version, Vehicle With M12 Outer Ball Joint / From: 7A000001 / To: 8A999999	-	1	Enquire
3504	LR005936	RACK - STEERING GEAR	LR005936 RACK - STEERING GEAR RHD / Remanufactured Part, Vehicle With M12 Outer Ball Joint / From: 7A000001 / To: 8A999999	-	1	Enquire
3504	LR005937	GEAR - STEERING	LR005937 GEAR - STEERING LHD / Remanufactured Part, Vehicle With M12 Outer Ball Joint / From: 7A000001 / To: 8A999999	-	1	Enquire
3504	LR010886	RACK - STEERING GEAR	LR010886 RACK - STEERING GEAR RHD / Remanufactured Part, Vehicle With M12 Outer Ball Joint / To: 6A999999	-	1	Enquire
3504	LR011307	RACK - STEERING GEAR	LR011307 RACK - STEERING GEAR LHD / Remanufactured Part, Vehicle With M12 Outer Ball Joint / To: 6A999999	-	1	Enquire
3504	QEB500630	RACK - STEERING GEAR	QEB500630 RACK - STEERING GEAR RHD / New Part-Please Check For Reman Version, Vehicle With M14 Outer Ball Joint / From: 9A191792	-	1	Enquire
3504	QEB500640	RACK - STEERING GEAR	QEB500640 RACK - STEERING GEAR LHD / New Part-Please Check For Reman Version, Vehicle With M14 Outer Ball Joint / From: 9A191792	-	1	Enquire
3504	QEB500590	RACK - STEERING GEAR	QEB500590 RACK - STEERING GEAR RHD / New Part-Please Check For Reman Version, Vehicle With M12 Outer Ball Joint / From: 9A000001 / To: 9A191791	-	1	Enquire
3504	QEB500620	GEAR - STEERING	QEB500620 GEAR - STEERING LHD / New Part-Please Check For Reman Version, Vehicle With M12 Outer Ball Joint / From: 9A000001 / To: 9A191791	-	1	Enquire
3504	LR017783	RACK - STEERING GEAR	LR017783 RACK - STEERING GEAR RHD / Remanufactured Part, Vehicle With M12 Outer Ball Joint / From: 9A000001 / To: 9A191791	-	1	Enquire
3504	LR017784	RACK - STEERING GEAR	LR017784 RACK - STEERING GEAR LHD / Remanufactured Part, Vehicle With M12 Outer Ball Joint / From: 9A000001 / To: 9A191791	-	1	Enquire
3504	LR019433	RACK - STEERING GEAR	LR019433 RACK - STEERING GEAR RHD / Remanufactured Part, Vehicle With M14 Outer Ball Joint / From: 9A191792	-	1	Enquire
3504	LR019434	RACK - STEERING GEAR	LR019434 RACK - STEERING GEAR LHD / Remanufactured Part, Vehicle With M14 Outer Ball Joint / From: 9A191792	-	1	Enquire
