Air Vents, Louvres And Ducts ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Air Vents, Louvres And Ducts ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FYP500260 SCREW $0.74 To Order
Photo Part No Description Price (each) Stock
ETD500550 INSULATOR - SENSOR $11.13 To Order
Photo Part No Description Price (each) Stock
JKB500300 DUCT - FOOT ROOM AIR $54.07 To Order
Photo Part No Description Price (each) Stock
JDD000051 VENT $35.32 To Order
LR002951 VENT - DOOR $64.28 To Order
Photo Part No Description Price (each) Stock
JQY000011 SEAL - COVER $13.12 To Order
Photo Part No Description Price (each) Stock
JKV500020 DUCT - AIR CONDITIONER $48.54 To Order
JKV500030 DUCT - AIR CONDITIONER $42.98 To Order
Photo Part No Description Price (each) Stock
JVE000060LUM VENT $76.88 To Order
Photo Part No Description Price (each) Stock
FJW500100PVJ BEZEL - LOUVRE AIR VENT NOZZLE $94.49 To Order
Photo Part No Description Price (each) Stock
FHR500030PVJ HOUSING $87.67 To Order
FHR500140PVJ HOUSING $87.67 To Order
Photo Part No Description Price (each) Stock
JKB000072 DUCT - AIR $68.37 To Order
JKB500340 DUCT - AIR $54.43 To Order
JKB500450 DUCT - AIR $68.37 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
JKB000132 DUCT - AIR $68.37 To Order
JKB500350 DUCT - AIR $54.43 To Order
JKB500420 HOSE - AIR $43.34 To Order
Photo Part No Description Price (each) Stock
JKB500062 DUCT - AIR $55.15 To Order
Photo Part No Description Price (each) Stock
JKB500072 DUCT - AIR $55.15 To Order
Photo Part No Description Price (each) Stock
JBB500022 DUCT - AIR $56.96 To Order
Photo Part No Description Price (each) Stock
JBD500062PVJ DUCT - HEATER AIR INLET $90.25 To Order
Photo Part No Description Price (each) Stock
JKB500320 DUCT - AIR CONDITIONER $56.03 To Order
JKB500310 DUCT - AIR CONDITIONER $56.03 To Order
JKB500460 DUCT - HEATER OUTLET $56.03 To Order
Photo Part No Description Price (each) Stock
JVE500052PVJ VENT $38.48 To Order
JVE500052SMS VENT $38.06 To Order
JVE500052NUG VENT $30.19 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
JBD500030PVJ DUCT - HEATER AIR INLET $54.18 To Order
JBD500030SMS VENT - INSTRUMENT PANEL $51.60 To Order
JBD500030NUG DUCT - HEATER AIR INLET $49.69 To Order
Photo Part No Description Price (each) Stock
JBD500160WCQ LOUVRE - VENT AIR $147.47 To Order
JBD500160LQV LOUVRE - VENT AIR $67.74 To Order
LR008388 LOUVRE - VENT AIR $136.22 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
JBD500170WCQ LOUVRE - VENT AIR $147.47 To Order
JBD500170LQV LOUVRE - VENT AIR $67.74 To Order
LR008390 LOUVRE - VENT AIR $136.22 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
JBD500180WCQ LOUVRE - VENT AIR $187.20 To Order
JBD500180LQV LOUVRE - VENT AIR $53.86 To Order
LR008393 LOUVRE - VENT AIR $96.41 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
JBD500190WCQ LOUVRE - VENT AIR $118.83 To Order
JBD500190LQV LOUVRE - VENT AIR $269.16 To Order
LR008395 LOUVRE - VENT AIR $102.02 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
JCC500022HPQ LOUVRE - VENT AIR $24.85 To Order
JCC500022LUP LOUVRE - VENT AIR $18.03 To Order
JCC500022PVJ LOUVRE - VENT AIR $24.85 To Order
Photo Part No Description Price (each) Stock
JCC500032HPQ LOUVRE - VENT AIR $24.85 To Order
JCC500032LUP LOUVRE - VENT AIR $18.03 To Order
JCC500032PVJ LOUVRE - VENT AIR $24.85 To Order
View All

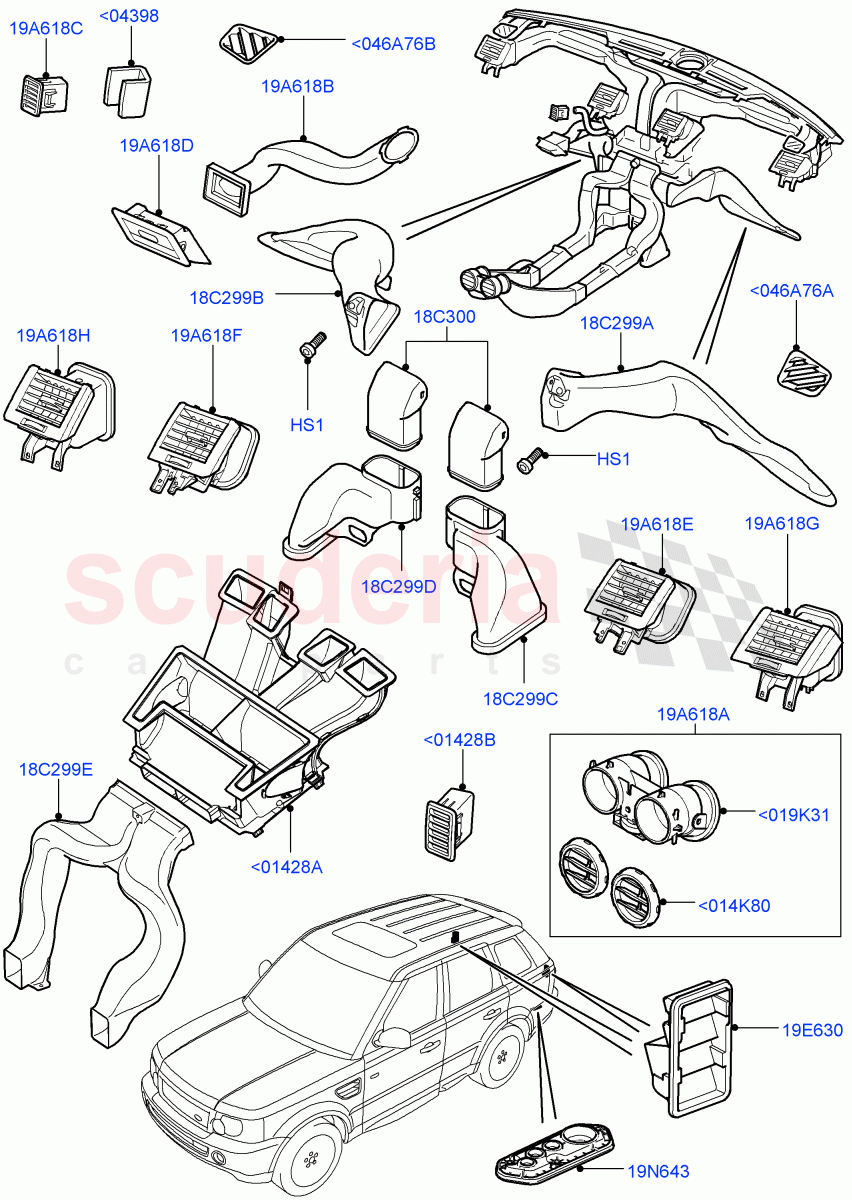

Air Vents, Louvres And Ducts ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<014K80 FJW500100PVJ
BEZEL - LOUVRE AIR VENT NOZZLE
Ebony Black, Set Of 2 Pieces 		$94.49 1
<019K31 FHR500030PVJ
HOUSING
To: 8A125931 		$87.67 1
<019K31 FHR500140PVJ
HOUSING
From: 8A125932 		$87.67 1
<046A76A JCC500022HPQ
LOUVRE - VENT AIR
Dark Tundra, RH Upper 		$24.85 1
<046A76A JCC500022LUP
LOUVRE - VENT AIR
Aspen, RH Upper 		$18.03 1
<046A76A JCC500022PVJ
LOUVRE - VENT AIR
Ebony Black, RH Upper 		$24.85 1
<046A76B JCC500032HPQ
LOUVRE - VENT AIR
Dark Tundra, LH Upper 		$24.85 1
<046A76B JCC500032LUP
LOUVRE - VENT AIR
Aspen, LH Upper 		$18.03 1
<046A76B JCC500032PVJ
LOUVRE - VENT AIR
Ebony Black, LH Upper 		$24.85 1
<01428A JKV500020
DUCT - AIR CONDITIONER
LHD / Heater and air conditioner air outlet, Upper 		$48.54 1
<01428A JKV500030
DUCT - AIR CONDITIONER
RHD / Heater and air conditioner air outlet, Upper 		$42.98 1
<01428B JVE000060LUM
VENT 		$76.88 2
<04398 ETD500550
INSULATOR - SENSOR
VENT 		$11.13 1
HS1 FYP500260
SCREW
Screw 4X14.5MM 		$0.74 2
18C299A JKB000072
DUCT - AIR
RHD / RH / To: 6A999999 		$68.37 1
18C299A JKB500340
DUCT - AIR
LHD / RH / To: 6A999999 		$54.43 1
18C299A JKB500450
DUCT - AIR
RHD / RH / From: 7A000001 		$68.37 1
18C299A JKB500410
HOSE - AIR
LHD / RH / From: 7A000001 		$54.03 1
18C299B JKB000132
DUCT - AIR
LHD / LH 		$68.37 1
18C299B JKB500350
DUCT - AIR
RHD / LH / To: 6A999999 		$54.43 1
18C299B JKB500420
HOSE - AIR
RHD / LH / From: 7A000001 		$43.34 1
18C299C JKB500062
DUCT - AIR
RH 		$55.15 1
18C299D JKB500072
DUCT - AIR
LH 		$55.15 1
18C299E JBB500022
DUCT - AIR 		$56.96 1
18C300 JKB500300
DUCT - FOOT ROOM AIR 		$54.07 2
19A618A JBD500062PVJ
DUCT - HEATER AIR INLET
Ebony Black 		$90.25 1
19A618B JKB500320
DUCT - AIR CONDITIONER
LHD / To: 5A912925 		$56.03 1
19A618B JKB500310
DUCT - AIR CONDITIONER
RHD 		$56.03 1
19A618B JKB500460
DUCT - HEATER OUTLET
LHD / From: 5A912926 		$56.03 1
19A618C JVE500052PVJ
VENT
Ebony Black, Steering Column Cover 		$38.48 1
19A618C JVE500052SMS
VENT
Alpaca, Steering Column Cover / To: 8A999999 		$38.06 1
19A618C JVE500052NUG
VENT
Ivory, Steering Column Cover 		$30.19 1
19A618C LR008745
DUCT - AIR CONDITIONER
I/P Facia Cntr-Ebony Black/Almond / Almond, Steering Column Cover / From: 9A000001 		$48.65 1
19A618D JBD500030PVJ
DUCT - HEATER AIR INLET
I/P Facia Contrast - Ebony Black / Ebony Black 		$54.18 1
19A618D JBD500030SMS
VENT - INSTRUMENT PANEL
I/P Facia Contrast - Alpaca / Alpaca / To: 8A999999 		$51.60 1
19A618D JBD500030NUG
DUCT - HEATER AIR INLET
I/P Facia Contrast - Aspen/Ivory / Ivory 		$49.69 1
19A618E JBD500160WCQ
LOUVRE - VENT AIR
RH, Ebony Black/Pewter Chrome / To: 7A999999 		$147.47 1
19A618E JBD500160LQV
LOUVRE - VENT AIR
RH, Brunel Metallic / From: 8A000001 / To: 8A999999 		$67.74 1
19A618E LR008388
LOUVRE - VENT AIR
With Interior Leather Pack / RH / From: 9A000001 		$136.22 1
19A618E LR008389
LOUVRE - VENT AIR
Interior Noble/Walnut Trim / RH, Chrome / From: 9A000001 		$32.15 1
19A618F JBD500170WCQ
LOUVRE - VENT AIR
LH, Ebony Black/Pewter Chrome / To: 7A999999 		$147.47 1
19A618F JBD500170LQV
LOUVRE - VENT AIR
LH, Brunel Metallic / From: 8A000001 / To: 8A999999 		$67.74 1
19A618F LR008390
LOUVRE - VENT AIR
With Interior Leather Pack / LH / From: 9A000001 		$136.22 1
19A618F LR008391
LOUVRE - VENT AIR
Interior Noble/Walnut Trim / LH, Chrome / From: 9A000001 		$99.49 1
19A618G JBD500180WCQ
LOUVRE - VENT AIR
RH, Ebony Black/Pewter Chrome / To: 7A999999 		$187.20 1
19A618G JBD500180LQV
LOUVRE - VENT AIR
RH, Brunel Metallic / From: 8A000001 / To: 8A999999 		$53.86 1
19A618G LR008393
LOUVRE - VENT AIR
With Interior Leather Pack / RH / From: 9A000001 		$96.41 1
19A618G LR008394
LOUVRE - VENT AIR
Interior Noble/Walnut Trim / RH, Chrome / From: 9A000001 		$25.91 1
19A618H JBD500190WCQ
LOUVRE - VENT AIR
LH, Ebony Black/Pewter Chrome / To: 7A999999 		$118.83 1
19A618H JBD500190LQV
LOUVRE - VENT AIR
LH, Brunel Metallic / From: 8A000001 / To: 8A999999 		$269.16 1
19A618H LR008395
LOUVRE - VENT AIR
With Interior Leather Pack / LH / From: 9A000001 		$102.02 1
19A618H LR008396
LOUVRE - VENT AIR
Interior Noble/Walnut Trim / LH, Chrome / From: 9A000001 		$62.94 1
19E630 JDD000051
VENT
Rear / To: 6A999999 		$35.32 2
19E630 LR002951
VENT - DOOR
Rear / From: 7A000001 		$64.28 2
19N643 JQY000011
SEAL - COVER 		$13.12 1
