Name: Fuses, Holders And Circuit Breakers (Engine Compartment) ((V) TO9A999999)
Rating: 5.0 (1 reviews)

Fuses, Holders And Circuit Breakers (Engine Compartment) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

View All

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Fuses, Holders And Circuit Breakers (Engine Compartment) ((V) TO9A999999)

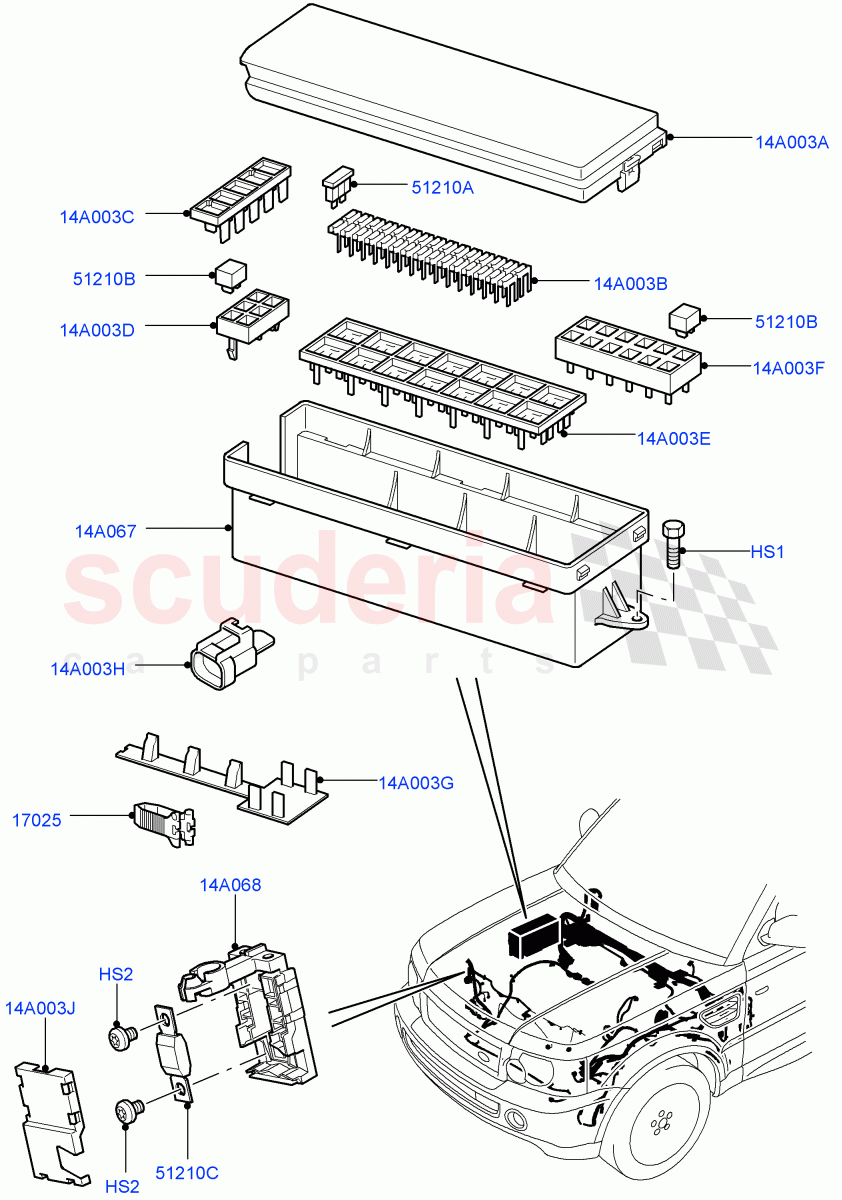

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106127L	SCREW	$2.04	To Order

Photo	Part No	Description	Price (each)	Stock
	YYP500060	SCREW	$4.84	To Order

Photo	Part No	Description	Price (each)	Stock
	YQT500010	PLIERS - FUSE	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	YPP500080	REINFORCEMENT - HOUSING	$25.84	To Order

Photo	Part No	Description	Price (each)	Stock
	YQE500310	FUSE	$117.71	To Order

Photo	Part No	Description	Price (each)	Stock
	YQF100490	FUSE	$0.55	To Order
	YQF100510	FUSE	$0.58	To Order
	YQF100520	FUSE	$0.99	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	YQG100430	FUSE	$2.49	To Order
	YQG100440	FUSE	$2.30	To Order
	YQG100420L	FUSE	$2.22	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	YQG500010	FUSE	$6.90	To Order

Photo	Part No	Description	Price (each)	Stock
	YQH500130	COVER - FUSE PANEL	$18.92	To Order

Photo	Part No	Description	Price (each)	Stock
	YPW500090	COVER - FUSE PANEL	$3.71	To Order

Photo	Part No	Description	Price (each)	Stock
	YPW500060	COVER - FUSE PANEL	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	YPW500080	COVER - FUSE PANEL	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	YPW500050	COVER - OPENING	$5.63	To Order

Photo	Part No	Description	Price (each)	Stock
	YPW500070	COVER - FUSE PANEL	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	YPW500100	COVER - FUSE PANEL	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	IPS500060	CONNECTOR	$8.13	To Order

Photo	Part No	Description	Price (each)	Stock
	YQH500220	COVER - OPENING	$5.62	To Order
	YQH500230	COVER - OPENING	$5.70	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	FS106127L	SCREW	FS106127L SCREW M6 x 12MM, Retains Fuse Box In Engine Compartment	$2.04	2
HS2	YYP500060	SCREW	YYP500060 SCREW M8 Torx, Mega Fuse	$4.84	2
14A003A	YQH500130	COVER - FUSE PANEL	YQH500130 COVER - FUSE PANEL Engine Compartment	$18.92	1
14A003B	YPW500090	COVER - FUSE PANEL	YPW500090 COVER - FUSE PANEL Fuses	$3.71	1
14A003C	YPW500060	COVER - FUSE PANEL	YPW500060 COVER - FUSE PANEL Cover For Relay, Micro	$1.63	1
14A003D	YPW500080	COVER - FUSE PANEL	YPW500080 COVER - FUSE PANEL 6 Way	$1.63	1
14A003E	YPW500050	COVER - OPENING	YPW500050 COVER - OPENING Cover For Relay, Mini	$5.63	1
14A003F	YPW500070	COVER - FUSE PANEL	YPW500070 COVER - FUSE PANEL 12 Way	$1.63	1
14A003G	YPW500100	COVER - FUSE PANEL	YPW500100 COVER - FUSE PANEL Lower	$1.63	1
14A003H	IPS500060	CONNECTOR	IPS500060 CONNECTOR Lion Diesel 2.7 V6 (140KW) / 2 Pin, Black / From: 7A000001	$8.13	1
14A003J	YQH500220	COVER - OPENING	YQH500220 COVER - OPENING RHD / Mega Fuse, Positive Battery Cable	$5.62	1
14A003J	YQH500230	COVER - OPENING	YQH500230 COVER - OPENING LHD / Mega Fuse, Positive Battery Cable	$5.70	1
14A067	YPP500080	REINFORCEMENT - HOUSING	YPP500080 REINFORCEMENT - HOUSING Engine Compartment, Fuse Box Assy Only Supplied With Engine Compartment Wiring, Housing Only	$25.84	1
14A068	YQE500310	FUSE	YQE500310 FUSE Mega Fuse, Positive Battery Cable	$117.71	1
17025	YQT500010	PLIERS - FUSE	YQT500010 PLIERS - FUSE	$0.58	1
51210A	YQF100490	FUSE	YQF100490 FUSE Mini 5 Amp, Tan Minifuse	$0.55	4
51210A	YQF100510	FUSE	YQF100510 FUSE MINI 10 AMP, Red Minifuse	$0.58	6
51210A	YQF100520	FUSE	YQF100520 FUSE Blue Minifuse, MINI 15 AMP	$0.99	6
51210A	YQF100530	FUSE	YQF100530 FUSE 20 AMP, Yellow Minifuse	$0.53	4
51210A	YQF100540	FUSE	YQF100540 FUSE 25 AMP, Natural Minifuse	$0.55	5
51210A	YQF100550	FUSE	YQF100550 FUSE Green Minifuse, MINI 30 AMP	$0.54	4
51210B	YQG100430	FUSE	YQG100430 FUSE 50 AMP, Female, Square	$2.49	4
51210B	YQG100440	FUSE	YQG100440 FUSE 60 AMP, Fuseable Link	$2.30	1
51210B	YQG100420L	FUSE	YQG100420L FUSE 40 AMP, Female, Green, Square	$2.22	6
51210B	YQG100410L	FUSE	YQG100410L FUSE 30 AMP, Female, Pink, Square	$3.71	6
51210C	YQG500010	FUSE	YQG500010 FUSE 400 AMP, Mega Fuse, Positive Battery Cable	$6.90	1
