Tyre Pressure Monitor System ((V) FROM6A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

View All

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Tyre Pressure Monitor System ((V) FROM6A000001, (V) TO9A999999)

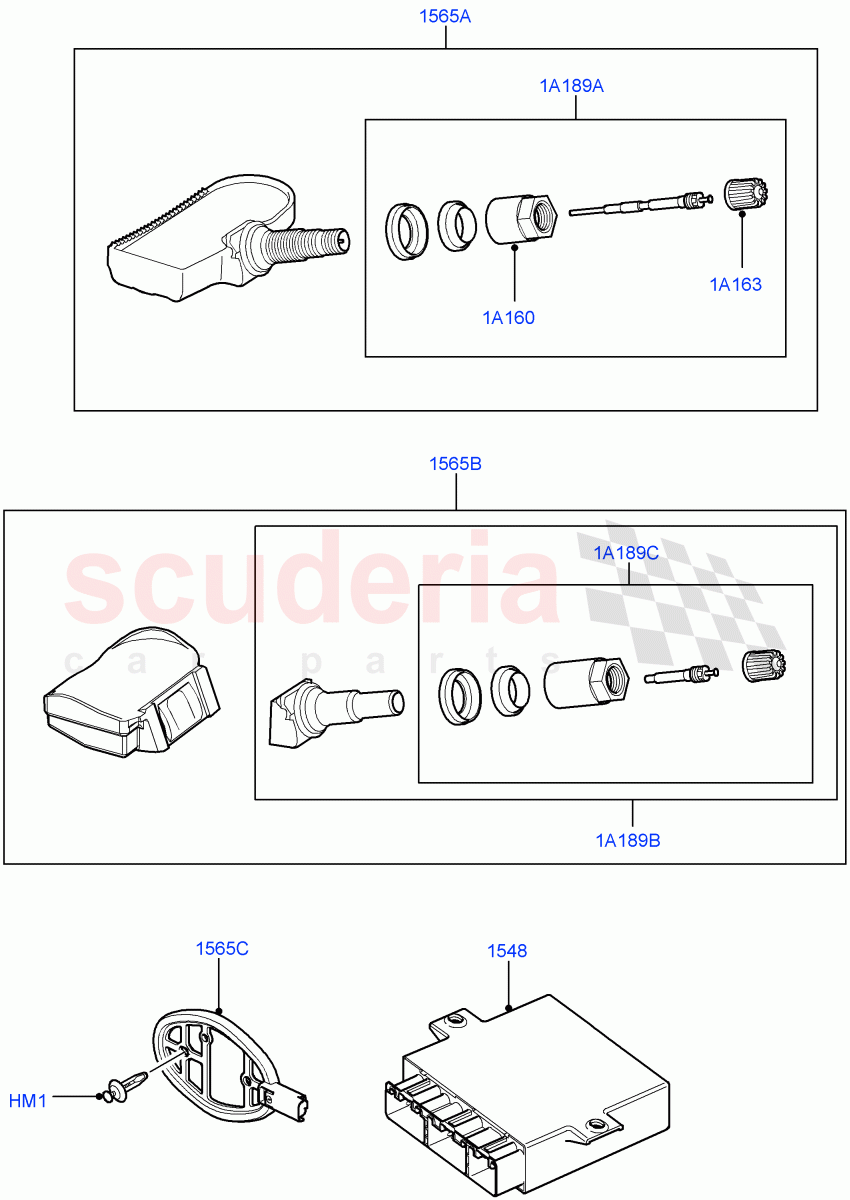

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	EAP4830PMA	RIVET - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NNW501985	MODULE	Enquire	To Order
	NNW501995	MODULE	Enquire	To Order
	NNW501996	MODULE	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	RQH500460	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order
	RQH500470	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order
	RQH500471	KIT - TPMS SENSOR	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR086928	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order
	LR086929	KIT - TPMS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RRE000010	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RRD500280	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RRF500030	CAP - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQH500481	KIT - TYRE PRESSURE MONITORING SENS	Enquire	To Order
	RQH500480	KIT - TYRE PRESSURE MONITORING SENS	Enquire	To Order
	LR032879	KIT - TYRE PRESSURE MONITORING SENS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR043162	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043163	SENSOR - TYRE PRESSURE MONITORING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HM1	EAP4830PMA	RIVET - SPECIAL	EAP4830PMA RIVET - SPECIAL Push Pin	-	8	Enquire
1A160	RRD500280	NUT - LOCKING	RRD500280 NUT - LOCKING	-	4	Enquire
1A163	RRF500030	CAP - VALVE	RRF500030 CAP - VALVE	-	4	Enquire
1A189A	RQH500481	KIT - TYRE PRESSURE MONITORING SENS	RQH500481 KIT - TYRE PRESSURE MONITORING SENS Includes Valve Core, Nut, Seal, Washer And Cap / From: 7A000001 / To: 9A215614	-	4	Enquire
1A189A	RQH500480	KIT - TYRE PRESSURE MONITORING SENS	RQH500480 KIT - TYRE PRESSURE MONITORING SENS Includes Valve Core, Nut, Seal, Washer And Cap / To: 6A999999	-	4	Enquire
1A189A	LR032879	KIT - TYRE PRESSURE MONITORING SENS	LR032879 KIT - TYRE PRESSURE MONITORING SENS Includes 1 Set, Includes Valve Core, Nut, Seal, Washer And Cap / From: 9A215615 / To: 9A500000	-	4	Enquire
1A189A	LR043161	SENSOR - TYRE PRESSURE MONITORING	LR043161 SENSOR - TYRE PRESSURE MONITORING Includes 5 sets, Includes Valve Core, Nut, Seal, Washer And Cap, Type TG1B / From: 9A500001 / To: 9A599999	-	1	Enquire
1A189B	LR043162	SENSOR - TYRE PRESSURE MONITORING	LR043162 SENSOR - TYRE PRESSURE MONITORING Includes 5 sets, Less Sensor, Service Kit, Type TG1C / From: 9A600000	-	1	Enquire
1A189C	LR043163	SENSOR - TYRE PRESSURE MONITORING	LR043163 SENSOR - TYRE PRESSURE MONITORING Includes 5 sets, Includes Valve Core, Nut, Seal, Washer And Cap, Type TG1C / From: 9A600000	-	1	Enquire
1548	NNW501985	MODULE	NNW501985 MODULE Tyre Pressure Sensors - 315 MHZ / To: 6A999999	-	1	Enquire
1548	NNW501995	MODULE	NNW501995 MODULE Tyre Pressure Sensors - 433 MHZ / To: 6A999999	-	1	Enquire
1548	NNW501996	MODULE	NNW501996 MODULE Tyre Pressure Sensors - 433 MHZ / From: 7A000001 / To: 7A999536	-	1	Enquire
1548	NNW501986	MODULE	NNW501986 MODULE Tyre Pressure Sensors - 315 MHZ / From: 7A000001 / To: 7A999536	-	1	Enquire
1548	NNW501997	MODULE	NNW501997 MODULE Tyre Pressure Sensors - 433 MHZ / From: 7A999537 / To: 8A999999	-	1	Enquire
1548	NNW501987	MODULE - TYRE PRESSURE	NNW501987 MODULE - TYRE PRESSURE Tyre Pressure Sensors - 315 MHZ / From: 7A999537 / To: 8A999999	-	1	Enquire
1548	LR023427	MODULE - TYRE PRESSURE	LR023427 MODULE - TYRE PRESSURE Tyre Pressure Sensors - 433 MHZ / From: 9A000001	-	1	Enquire
1548	LR023428	MODULE - TYRE PRESSURE	LR023428 MODULE - TYRE PRESSURE Tyre Pressure Sensors - 315 MHZ / From: 9A000001	-	1	Enquire
1565A	RQH500460	SENSOR - TYRE PRESSURE MONITORING	RQH500460 SENSOR - TYRE PRESSURE MONITORING Tyre Pressure Sensors - 315 MHZ / To: 6A974356	-	4	Enquire
1565A	RQH500470	SENSOR - TYRE PRESSURE MONITORING	RQH500470 SENSOR - TYRE PRESSURE MONITORING Tyre Pressure Sensors - 433 MHZ / To: 6A974356	-	4	Enquire
1565A	RQH500471	KIT - TPMS SENSOR	RQH500471 KIT - TPMS SENSOR Tyre Pressure Sensors - 433 MHZ / From: 6A974357 / To: 7A999999	-	4	Enquire
1565A	RQH500461	KIT - TPMS SENSOR	RQH500461 KIT - TPMS SENSOR Tyre Pressure Sensors - 315 MHZ / From: 6A974357 / To: 7A999999	-	4	Enquire
1565A	LR010532	KIT - TPMS SENSOR	LR010532 KIT - TPMS SENSOR Tyre Pressure Sensors - 433 MHZ / From: 8A000001 / To: 8A999999	-	4	Enquire
1565A	LR010533	SENSOR - TYRE PRESSURE MONITORING	LR010533 SENSOR - TYRE PRESSURE MONITORING Tyre Pressure Sensors - 315 MHZ / From: 8A000001 / To: 8A999999	-	4	Enquire
1565A	LR018861	KIT - TPMS SENSOR	LR018861 KIT - TPMS SENSOR Tyre Pressure Sensors - 433 MHZ / From: 9A000001 / To: 9A215614	-	4	Enquire
1565A	LR018860	SENSOR - TYRE PRESSURE MONITORING	LR018860 SENSOR - TYRE PRESSURE MONITORING Tyre Pressure Sensors - 315 MHZ / From: 9A000001 / To: 9A215614	-	4	Enquire
1565A	LR032836	SENSOR - TIRE PRESSURE MONITORING	LR032836 SENSOR - TIRE PRESSURE MONITORING Tyre Pressure Sensors - 315 MHZ / Type TG1B / From: 9A215615 / To: 9A599999	-	4	Enquire
1565A	LR032835	SENSOR - TYRE PRESSURE MONITORING	LR032835 SENSOR - TYRE PRESSURE MONITORING Tyre Pressure Sensors - 433 MHZ / From: 9A215615 / To: 9A599999	-	4	Enquire
1565B	LR086928	SENSOR - TYRE PRESSURE MONITORING	LR086928 SENSOR - TYRE PRESSURE MONITORING Tyre Pressure Sensors - 433 MHZ / Complete Kit, Includes 1 Set, Type TG1C / From: 9A600000	-	-	Enquire
1565B	LR086929	KIT - TPMS SENSOR	LR086929 KIT - TPMS SENSOR Tyre Pressure Sensors - 315 MHZ / Complete Kit, Includes 1 Set, Type TG1C / From: 9A600000	-	-	Enquire
1565C	RRE000010	SENSOR - TYRE PRESSURE MONITORING	RRE000010 SENSOR - TYRE PRESSURE MONITORING	-	4	Enquire
