Name: Heat Shields - Exhaust System (AJ Petrol 4.4 V8 EFI (220KW))
Rating: 5.0 (1 reviews)

View All

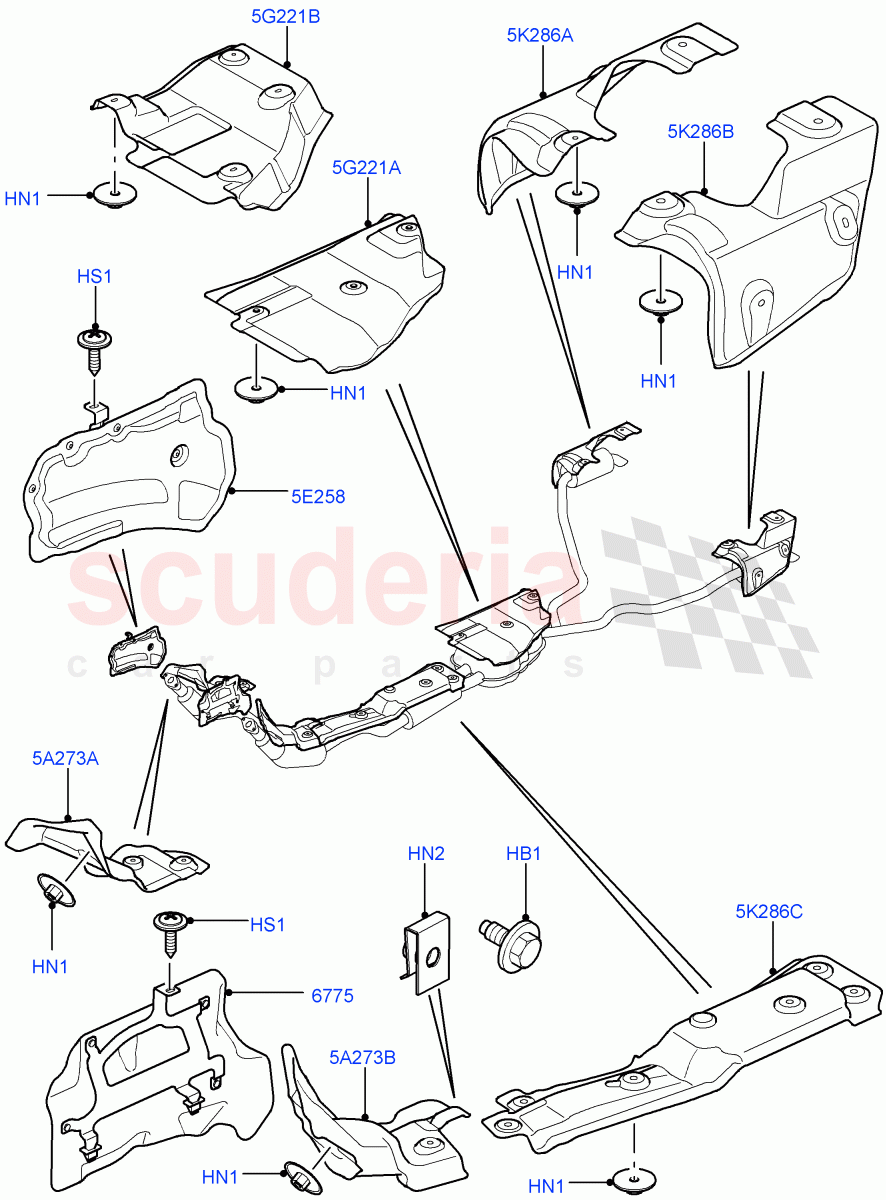

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP10022	SCREW AND WASHER	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500410	HEAT SHIELD	$95.14	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500123	HEAT SHIELD	$27.36	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500133	HEAT SHIELD	$29.57	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500012	HEAT SHIELD	$149.86	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500580	HEAT SHIELD	$73.94	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500590	HEAT SHIELD	$73.94	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500073	HEAT SHIELD	$54.86	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	KYG500380	SCREW AND WASHER - HEX HEAD IN STOCK	KYG500380 SCREW AND WASHER - HEX HEAD M6 X 16MM IN STOCK	$0.35	3
HN1	WYH500050	NUT - LOCKING IN STOCK	WYH500050 NUT - LOCKING M5 / To: 6A999999 IN STOCK	$2.57	25
HN1	WYH500050	NUT - LOCKING IN STOCK	WYH500050 NUT - LOCKING M5 / From: 7A000001 IN STOCK	$2.57	25
HN2	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring	$1.19	3
HS1	DYP10022	SCREW AND WASHER	DYP10022 SCREW AND WASHER 5 x 20MM	$0.74	2
5A273A	WEB500123	HEAT SHIELD	WEB500123 HEAT SHIELD RH	$27.36	1
5A273B	WEB500133	HEAT SHIELD	WEB500133 HEAT SHIELD LH	$29.57	1
5E258	WEB500410	HEAT SHIELD	WEB500410 HEAT SHIELD RH	$95.14	1
5G221B	WEB500012	HEAT SHIELD	WEB500012 HEAT SHIELD Rear	$149.86	1
5K286A	WEB500580	HEAT SHIELD	WEB500580 HEAT SHIELD Rear RH	$73.94	1
5K286B	WEB500590	HEAT SHIELD	WEB500590 HEAT SHIELD Rear LH	$73.94	1
5K286C	WEB500073	HEAT SHIELD	WEB500073 HEAT SHIELD Intermediate	$54.86	1
6775	WEB500420	HEAT SHIELD	WEB500420 HEAT SHIELD LH / To: 5A915545	$84.73	1
6775	WEB500421	HEAT SHIELD	WEB500421 HEAT SHIELD LH / From: 5A915546	$96.57	1

Heat Shields - Exhaust System (Aj Petrol 4.4 V8 Efi (220Kw))

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]
