Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Fuel Tank & Related Parts (With 2 Vent Pipes, This Section Refers To TSB LTB00293, Vehicles Fitted...

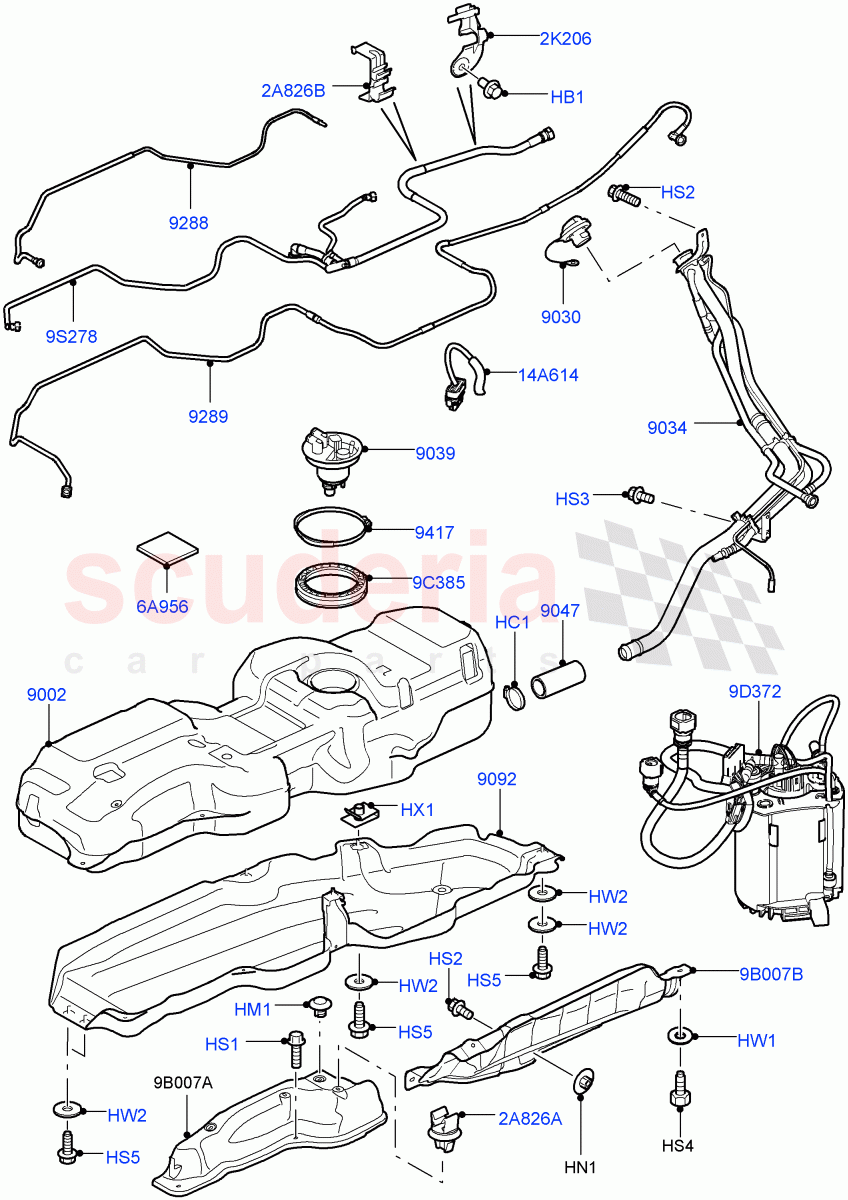

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SN106127L	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CN100509	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYQ000010	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500050	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108126	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106167L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500270	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJ600041L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJ110006	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYH500100	NUT - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016241	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR181511	CAP - FUEL TANK FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013825	FILLER - FUEL TANK	Enquire	To Order
	LR013826	FILLER - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013753	COVER - DUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010621	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFN000014	FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015975	HOSE - FUEL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016266	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFU500020	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025789	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013771	RING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016845	SENDER AND PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016260	TUBE - BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020971	JUMPER WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SPV500020	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014156	CLIP - PARKING BRAKE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFZ500034	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WFZ500130	SHIELD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	SN106127L	BOLT	SN106127L BOLT M6	-	2	Enquire
HC1	CN100509	CLIP	CN100509 CLIP Hose Clamp	-	1	Enquire
HM1	WYQ000010	RIVET - PLASTIC	WYQ000010 RIVET - PLASTIC Plastic, Rivet Type	-	2	Enquire
HN1	WYH500050	NUT - LOCKING	WYH500050 NUT - LOCKING M5	-	2	Enquire
HS1	FS106206	SCREW	FS106206 SCREW Hexagonal Head, M6 X 20MM	-	1	Enquire
HS2	RYP500190	SCREW	RYP500190 SCREW Hexagonal Head, M6 x 12MM	-	1	Enquire
HS3	FS108126	SCREW	FS108126 SCREW M8 x 12MM	-	1	Enquire
HS4	FS106167L	SCREW	FS106167L SCREW M6 X 16MM	-	2	Enquire
HS5	RYG500270	SCREW	RYG500270 SCREW Hexagonal Head, M10 X 25MM	-	6	Enquire
HW1	WJ600041L	WASHER	WJ600041L WASHER M6	-	2	Enquire
HW2	WJ110006	WASHER	WJ110006 WASHER 10 MM	-	7	Enquire
HX1	KYH500100	NUT - SPRING	KYH500100 NUT - SPRING Fuel Tank Attaching, M10, Nut "U" Spring	-	2	Enquire
2A826A	SPV500020	CLIP	SPV500020 CLIP For	-	2	Enquire
2A826B	LR014156	CLIP - PARKING BRAKE CABLE	LR014156 CLIP - PARKING BRAKE CABLE	-	3	Enquire
2K206	WFU500020	BRACKET	WFU500020 BRACKET	-	1	Enquire
6A956	LR025789	FOAM PAD - ENERGY ABSORBING	LR025789 FOAM PAD - ENERGY ABSORBING	-	1	Enquire
9B007A	WFZ500034	SHIELD	WFZ500034 SHIELD	-	1	Enquire
9B007B	WFZ500130	SHIELD	WFZ500130 SHIELD	-	1	Enquire
9C385	LR013771	RING - RETAINING	LR013771 RING - RETAINING	-	1	Enquire
9D372	LR016845	SENDER AND PUMP	LR016845 SENDER AND PUMP Vehicles Fitted With 10MY Fuel Tank	-	1	Enquire
9S278	LR016260	TUBE - BREATHER	LR016260 TUBE - BREATHER Breather Pipe	-	1	Enquire
14A614	LR020971	JUMPER WIRING	LR020971 JUMPER WIRING	-	1	Enquire
9002	LR016241	TANK - FUEL	LR016241 TANK - FUEL	-	1	Enquire
9030	LR181511	CAP - FUEL TANK FILLER	LR181511 CAP - FUEL TANK FILLER	-	1	Enquire
9034	LR013825	FILLER - FUEL TANK	LR013825 FILLER - FUEL TANK (+)"CDN/MEX/USA"	-	1	Enquire
9034	LR013826	FILLER - FUEL TANK	LR013826 FILLER - FUEL TANK (-)"CDN/MEX/USA"	-	1	Enquire
9039	LR013753	COVER - DUST	LR013753 COVER - DUST	-	1	Enquire
9047	LR010621	HOSE - FILLER PIPE	LR010621 HOSE - FILLER PIPE	-	1	Enquire
9092	WFN000014	FUEL TANK	WFN000014 FUEL TANK	-	1	Enquire
9288	LR015975	HOSE - FUEL FEED	LR015975 HOSE - FUEL FEED	-	1	Enquire
9289	LR016266	TUBE - FUEL	LR016266 TUBE - FUEL Vapour Line	-	1	Enquire
9417	LR117476	GASKET	LR117476 GASKET O-Ring	-	1	Enquire
