Fuel Injectors And Pipes (Aj Petrol 4.4 V8 Efi (220Kw))

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Fuel Injectors And Pipes (AJ Petrol 4.4 V8 EFI (220KW))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS105087 BOLT $0.74 To Order
Photo Part No Description Price (each) Stock
TYP500030 SCREW $1.01 To Order
Photo Part No Description Price (each) Stock
4636643 MANIFOLD - FUEL SUPPLY $1,174.26 To Order
4741277 MANIFOLD - FUEL SUPPLY $1,122.98 To Order
LR002489 MANIFOLD - FUEL SUPPLY $2,762.79 To Order
Photo Part No Description Price (each) Stock
MLH500180 PIPE - FUEL $366.19 To Order
MLH500023 PIPE - FUEL $76.45 To Order
Photo Part No Description Price (each) Stock
4526563 INJECTOR $176.41 To Order
Photo Part No Description Price (each) Stock
MHU500060 BRACKET $2.09 To Order
Photo Part No Description Price (each) Stock
MAP500100 TUBE - FUEL SUPPLY $482.85 To Order
Photo Part No Description Price (each) Stock
LR000291 SENDER $52.81 To Order
Photo Part No Description Price (each) Stock
4484930 CLIP $6.40 To Order
Photo Part No Description Price (each) Stock
LR012785 SEAL $7.33 To Order
Photo Part No Description Price (each) Stock
LR012827 SEAL $6.19 To Order
View All

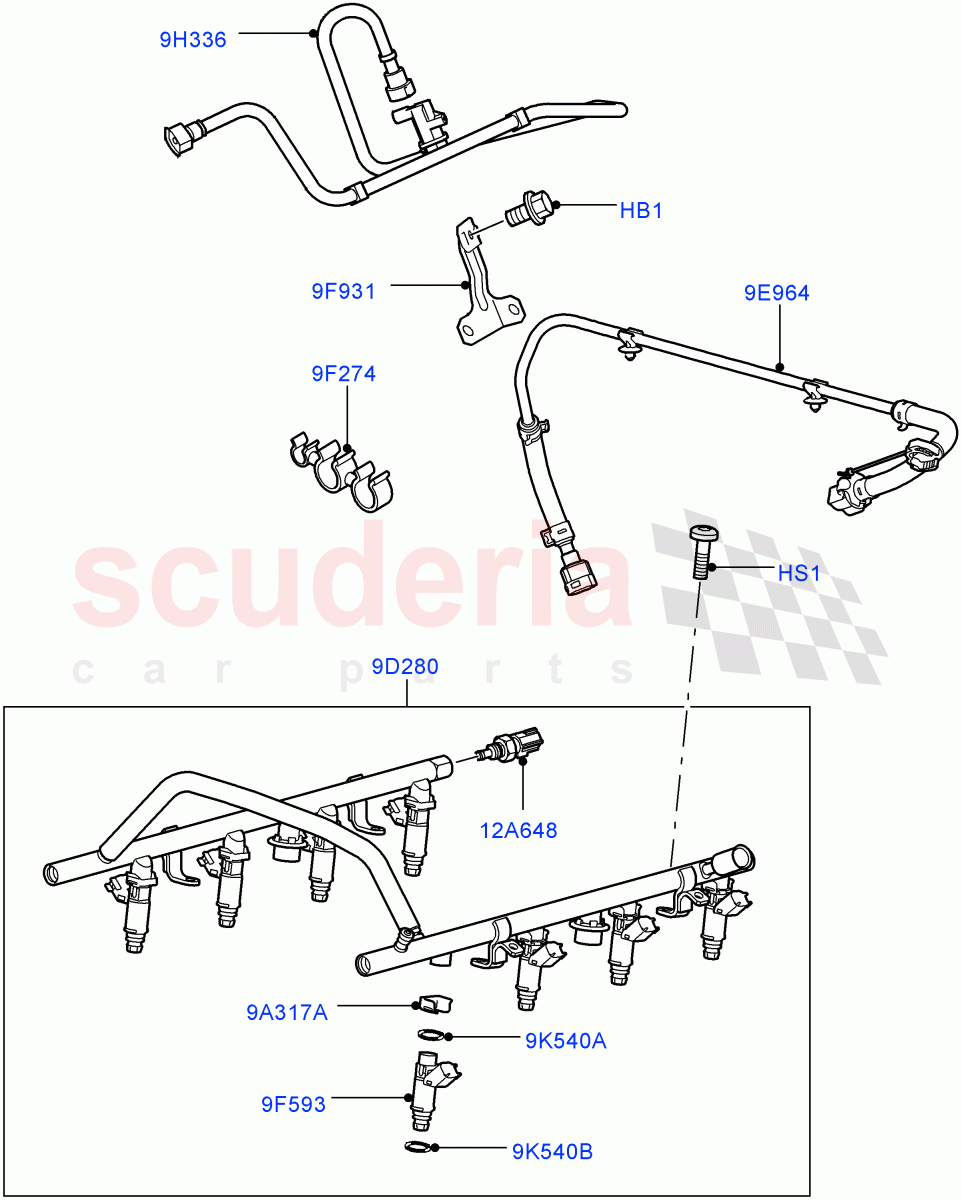

Fuel Injectors And Pipes (AJ Petrol 4.4 V8 EFI (220KW)) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS105087
BOLT
M5 x 8MM 		$0.74 1
HS1 TYP500030
SCREW
M6 X 16MM, Torx 		$1.01 4
9A317A 4484930
CLIP 		$6.40 8
9D280 4636643
MANIFOLD - FUEL SUPPLY
To: 5A910671 		$1,174.26 1
9D280 4741277
MANIFOLD - FUEL SUPPLY
From: 5A910672 / To: 8A999999 		$1,122.98 1
9D280 LR002489
MANIFOLD - FUEL SUPPLY
From: 9A000001 		$2,762.79 1
9E964 MLH500180
PIPE - FUEL
Supply / From: 5A348163 		$366.19 1
9E964 MLH500023
PIPE - FUEL
Supply / To: 5A348162 		$76.45 1
9F593 4526563
INJECTOR 		$176.41 8
9F931 MHU500060
BRACKET
Valve Assembly 		$2.09 1
9H336 MAP500100
TUBE - FUEL SUPPLY
Fuel Vapor Cannister Purge - Outlet, Valve Assembly 		$482.85 1
9K540A LR012785
SEAL
Fuel Injector, Upper 		$7.33 8
9K540B LR012827
SEAL
Fuel Injector, Lower 		$6.19 8
12A648 LR000291
SENDER
Fuel Rail 		$52.81 1
