Name: Cylinder Head Cover (AJ Petrol 4.4 V8 EFI (220KW))
Rating: 5.0 (1 reviews)

Cylinder Head Cover (AJ Petrol 4.4 V8 EFI (220KW)) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

View All

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Cylinder Head Cover (AJ Petrol 4.4 V8 EFI (220KW))

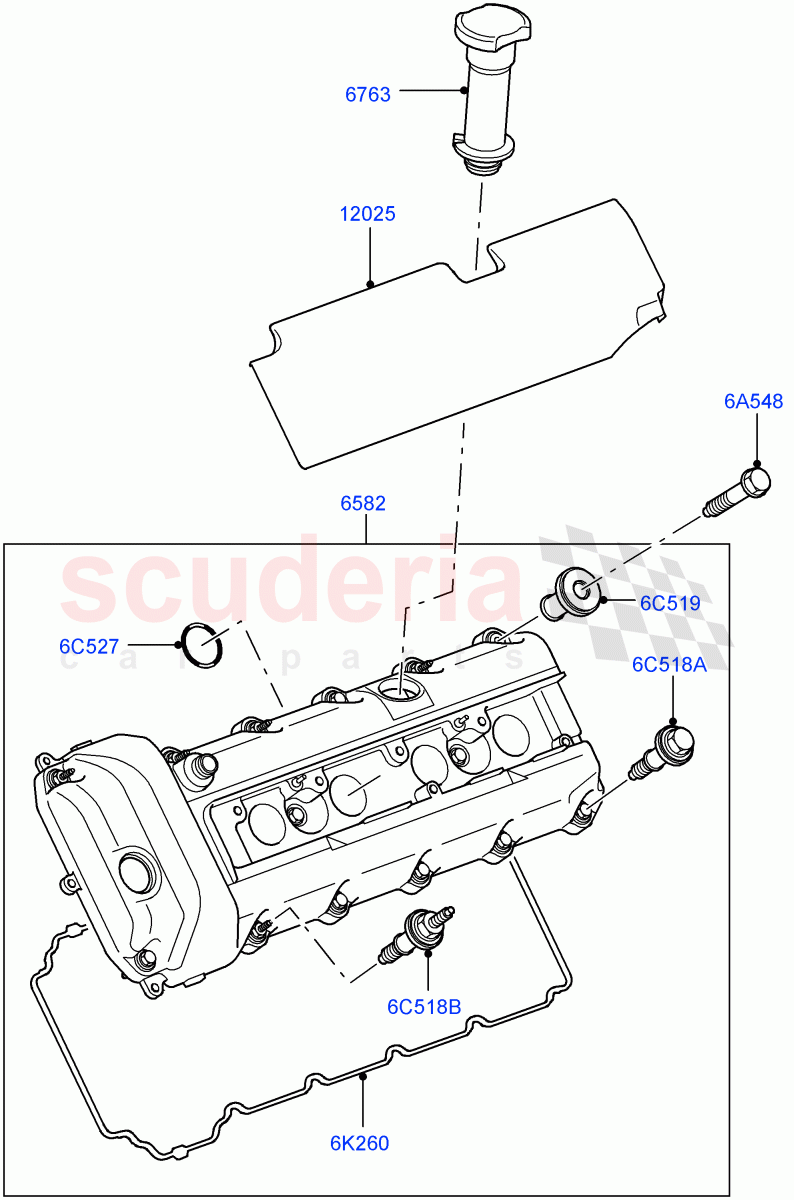

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4597586	COVER - CYLINDER HEAD FRONT	$137.08	To Order
	4585174	COVER - CAMSHAFT	$147.39	To Order
	4729496	COVER - CAMSHAFT	$132.88	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4527568	PIPE	$21.18	To Order

Photo	Part No	Description	Price (each)	Stock
	4602266	COVER - IGNITION COIL	$43.09	To Order
	4527537	COVER - IGNITION COIL	$23.06	To Order
	4744205	COVER - IGNITION COIL	$22.35	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1069116	BOLT - HEX.HEAD	$0.69	To Order
	LR000337	BOLT - HEX.HEAD	$9.71	To Order

Photo	Part No	Description	Price (each)	Stock
	4568726	GROMMET	$1.31	To Order
	4728387	GROMMET	$1.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LDR500180	SEAL	$6.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LVP500010	GASKET	$41.90	To Order
	LDR500150	GASKET	$34.90	To Order
	LR007652	GASKET	$56.49	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4536846	GROMMET - VALVE COVER	$1.73	To Order
	4728385	GROMMET - VALVE COVER	$3.77	To Order

Photo	Part No	Description	Price (each)	Stock
	4536847	GROMMET - VALVE COVER	$1.96	To Order
	4728386	GROMMET - VALVE COVER	$2.58	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6A548	1069116	BOLT - HEX.HEAD	1069116 BOLT - HEX.HEAD M6 x 1.0 / To: 6A999999	$0.69	2
6A548	LR000337	BOLT - HEX.HEAD	LR000337 BOLT - HEX.HEAD M6 x 1.0 / From: 7A000001	$9.71	2
6C518A	4536846	GROMMET - VALVE COVER	4536846 GROMMET - VALVE COVER To: 5A910671	$1.73	14
6C518A	4728385	GROMMET - VALVE COVER	4728385 GROMMET - VALVE COVER From: 5A910672	$3.77	14
6C518B	4536847	GROMMET - VALVE COVER	4536847 GROMMET - VALVE COVER To: 5A910671	$1.96	8
6C518B	4728386	GROMMET - VALVE COVER	4728386 GROMMET - VALVE COVER From: 5A910672	$2.58	8
6C519	4568726	GROMMET	4568726 GROMMET To: 5A910671	$1.31	2
6C519	4728387	GROMMET	4728387 GROMMET From: 5A910672	$1.72	2
6C527	LDR500180	SEAL	LDR500180 SEAL	$6.77	8
6K260	LVP500010	GASKET	LVP500010 GASKET RH / To: 7A117358	$41.90	1
6K260	LDR500150	GASKET	LDR500150 GASKET LH / To: 7A117358	$34.90	1
6K260	LR007652	GASKET	LR007652 GASKET RH / From: 7A117359	$56.49	1
6K260	LR007657	GASKET	LR007657 GASKET LH / From: 7A117359	$62.17	1
6582	4597586	COVER - CYLINDER HEAD FRONT	4597586 COVER - CYLINDER HEAD FRONT RH / To: 5A910671	$137.08	1
6582	4585174	COVER - CAMSHAFT	4585174 COVER - CAMSHAFT LH / To: 5A910671	$147.39	1
6582	4729496	COVER - CAMSHAFT	4729496 COVER - CAMSHAFT LH / From: 5A910672 / To: 6A999999	$132.88	1
6582	4728473	COVER - CYLINDER HEAD FRONT	4728473 COVER - CYLINDER HEAD FRONT RH / From: 5A910372 / To: 6A999999	$124.69	1
6582	LR007653	COVER - CYLINDER HEAD FRONT	LR007653 COVER - CYLINDER HEAD FRONT RH / From: 7A000001	$359.99	1
6582	LR007655	COVER - CYLINDER HEAD	LR007655 COVER - CYLINDER HEAD LH / From: 7A000001	$416.86	1
6763	4527568	PIPE	4527568 PIPE	$21.18	1
12025	4602266	COVER - IGNITION COIL	4602266 COVER - IGNITION COIL RH / To: 6A916350	$43.09	1
12025	4527537	COVER - IGNITION COIL	4527537 COVER - IGNITION COIL LH / To: 6A916350	$23.06	1
12025	4744205	COVER - IGNITION COIL	4744205 COVER - IGNITION COIL From: 6A916351 / To: 6A999999	$22.35	2
12025	LR003882	COVER - IGNITION COIL	LR003882 COVER - IGNITION COIL From: 7A000001 / To: 8A144344	$24.47	2
12025	LR008573	COVER - IGNITION COIL	LR008573 COVER - IGNITION COIL From: 8A144345	$39.89	2

Cylinder Head Cover (Aj Petrol 4.4 V8 Efi (220Kw))

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Cylinder Head Cover (AJ Petrol 4.4 V8 EFI (220KW))
