Cylinder Head (AJ Petrol 4.4 V8 EFI (220KW)) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

View All

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Cylinder Head (AJ Petrol 4.4 V8 EFI (220KW))

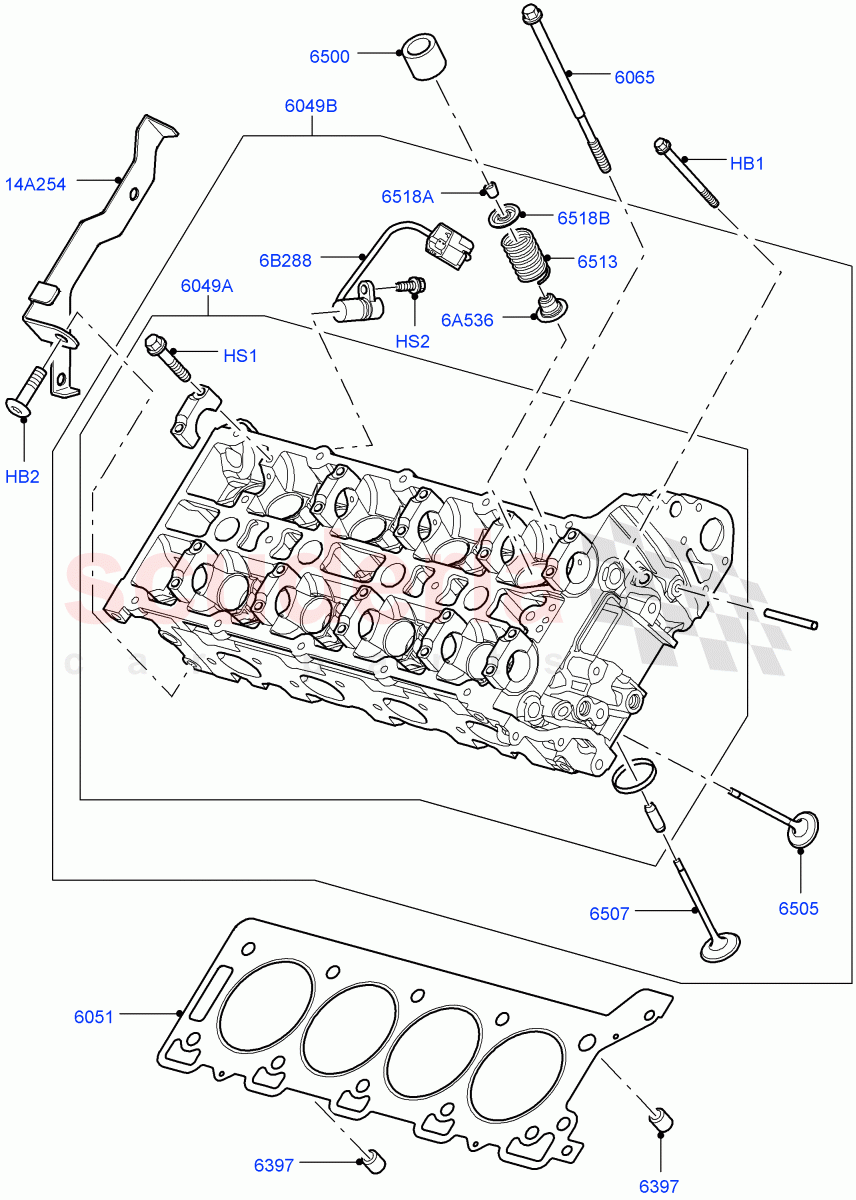

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB108181	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000299	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4556038	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4467593	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4585198	GASKET - CYLINDER HEAD	Enquire	To Order
	4585202	GASKET - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4677857	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4568723	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4624032	TAPPET - VALVE	Enquire	To Order
	4624031	TAPPET - VALVE	Enquire	To Order
	4624034	TAPPET - VALVE	Enquire	To Order

...and 48 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4646004	VALVE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4646005	VALVE - INLET	Enquire	To Order
	LR002447	VALVE - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4646003	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4585196	CYLINDER HEAD	Enquire	To Order
	4585548	CYLINDER HEAD	Enquire	To Order
	LR005095	CYLINDER HEAD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1359486	CYLINDER HEAD	Enquire	To Order
	1359488	CYLINDER HEAD	Enquire	To Order
	LR002811	CYLINDER HEAD	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1069944	KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1069876	RETAINER - VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3598716	RETAINER - VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4427657	SENSOR - CAMSHAFT POSITION	Enquire	To Order
	4362957	SENSOR - CAMSHAFT POSITION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YSU500100	CLIP - WIRING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FB108181	BOLT - FLANGED HEX.	FB108181 BOLT - FLANGED HEX. M8 X 90MM	-	4	Enquire
HB2	LR000299	BOLT	LR000299 BOLT M8 X 16MM	-	1	Enquire
HS1	4556038	BOLT	4556038 BOLT M6 x 35MM	-	40	Enquire
HS2	4467593	BOLT - HEX.HEAD	4467593 BOLT - HEX.HEAD Camshaft Position Sensor, Hexagonal Head, M6 X 20MM	-	2	Enquire
6A536	3598716	RETAINER - VALVE SPRING	3598716 RETAINER - VALVE SPRING	-	32	Enquire
6B288	4427657	SENSOR - CAMSHAFT POSITION	4427657 SENSOR - CAMSHAFT POSITION RH, Camshaft Position Sensor	-	1	Enquire
6B288	4362957	SENSOR - CAMSHAFT POSITION	4362957 SENSOR - CAMSHAFT POSITION LH, Camshaft Position Sensor	-	1	Enquire
14A254	YSU500100	CLIP - WIRING	YSU500100 CLIP - WIRING	-	1	Enquire
6049A	4585196	CYLINDER HEAD	4585196 CYLINDER HEAD RH / To: 6A999999	-	1	Enquire
6049A	4585548	CYLINDER HEAD	4585548 CYLINDER HEAD LH / To: 6A999999	-	1	Enquire
6049A	LR005095	CYLINDER HEAD	LR005095 CYLINDER HEAD RH / From: 7A000001	-	1	Enquire
6049A	LR005096	CYLINDER HEAD	LR005096 CYLINDER HEAD LH / From: 7A000001	-	1	Enquire
6049B	1359486	CYLINDER HEAD	1359486 CYLINDER HEAD RH / To: 6A999999	-	1	Enquire
6049B	1359488	CYLINDER HEAD	1359488 CYLINDER HEAD LH / To: 6A999999	-	1	Enquire
6049B	LR002811	CYLINDER HEAD	LR002811 CYLINDER HEAD RH, New Part-Please Check For Reman Version / From: 7A000001	-	1	Enquire
6049B	LR002812	CYLINDER HEAD	LR002812 CYLINDER HEAD LH, New Part-Please Check For Reman Version / From: 7A000001	-	1	Enquire
6049B	LR049492	CYLINDER HEAD	LR049492 CYLINDER HEAD RH, Remanufactured Part / From: 7A000001	-	1	Enquire
6049B	LR049493	CYLINDER HEAD	LR049493 CYLINDER HEAD LH, Remanufactured Part / From: 7A000001	-	1	Enquire
6051	4585198	GASKET - CYLINDER HEAD	4585198 GASKET - CYLINDER HEAD RH	-	1	Enquire
6051	4585202	GASKET - CYLINDER HEAD	4585202 GASKET - CYLINDER HEAD LH	-	1	Enquire
6065	4677857	BOLT - HEX.HEAD	4677857 BOLT - HEX.HEAD M10 X 175MM	-	20	Enquire
6397	4568723	DOWEL - PIN	4568723 DOWEL - PIN	-	4	Enquire
6500	4624032	TAPPET - VALVE	4624032 TAPPET - VALVE 2.965MM	-	-	Enquire
6500	4624031	TAPPET - VALVE	4624031 TAPPET - VALVE 2.950mm	-	-	Enquire
6500	4624034	TAPPET - VALVE	4624034 TAPPET - VALVE 2.995MM	-	-	Enquire
6500	4624037	TAPPET - VALVE	4624037 TAPPET - VALVE 3.010MM	-	-	Enquire
6500	4624038	TAPPET - VALVE	4624038 TAPPET - VALVE 3.025MM	-	-	Enquire
6500	4624040	TAPPET - VALVE	4624040 TAPPET - VALVE 3.040MM	-	-	Enquire
6500	4624043	TAPPET - VALVE	4624043 TAPPET - VALVE 3.055MM	-	-	Enquire
6500	4624045	TAPPET - VALVE	4624045 TAPPET - VALVE 3.070MM	-	-	Enquire
6500	4624049	TAPPET - VALVE	4624049 TAPPET - VALVE 3.085MM	-	-	Enquire
6500	4624051	TAPPET - VALVE	4624051 TAPPET - VALVE 3.100MM	-	-	Enquire
6500	4624054	TAPPET - VALVE	4624054 TAPPET - VALVE 3.115MM	-	-	Enquire
6500	4624056	TAPPET - VALVE	4624056 TAPPET - VALVE 3.130MM	-	-	Enquire
6500	4624060	TAPPET - VALVE	4624060 TAPPET - VALVE 3.145MM	-	-	Enquire
6500	4624061	TAPPET - VALVE	4624061 TAPPET - VALVE 3.160MM	-	-	Enquire
6500	4624062	TAPPET - VALVE	4624062 TAPPET - VALVE 3.175MM	-	-	Enquire
6500	4624063	TAPPET - VALVE	4624063 TAPPET - VALVE 3.190MM	-	-	Enquire
6500	4624064	TAPPET - VALVE	4624064 TAPPET - VALVE 3.205MM	-	-	Enquire
6500	4649518	TAPPET - VALVE	4649518 TAPPET - VALVE 3.220MM	-	-	Enquire
6500	4624069	TAPPET - VALVE	4624069 TAPPET - VALVE 3.235MM	-	-	Enquire
6500	4624071	TAPPET - VALVE	4624071 TAPPET - VALVE 3.250MM	-	-	Enquire
6500	4624072	tappet-valve	4624072 tappet-valve 3.265MM	-	-	Enquire
6500	LR037306	TAPPET - VALVE	LR037306 TAPPET - VALVE 3.280MM	-	-	Enquire
6500	4624074	TAPPET - VALVE	4624074 TAPPET - VALVE 3.295MM	-	-	Enquire
6500	LR037308	TAPPET - VALVE	LR037308 TAPPET - VALVE 3.310MM	-	-	Enquire
6500	LR037309	TAPPET - VALVE	LR037309 TAPPET - VALVE 3.325MM	-	-	Enquire
6500	LR037310	TAPPET - VALVE	LR037310 TAPPET - VALVE 3.340MM	-	-	Enquire
6500	LR037311	TAPPET - VALVE	LR037311 TAPPET - VALVE 3.355MM	-	-	Enquire
6500	4624087	TAPPET - VALVE	4624087 TAPPET - VALVE 3.370MM	-	-	Enquire
6500	LR037313	TAPPET - VALVE	LR037313 TAPPET - VALVE 3.385MM	-	-	Enquire
6500	LR037314	TAPPET - VALVE	LR037314 TAPPET - VALVE 3.400MM	-	-	Enquire
6500	LR037315	TAPPET - VALVE	LR037315 TAPPET - VALVE 3.415MM	-	-	Enquire
6500	4649519	TAPPET - VALVE	4649519 TAPPET - VALVE 3.430MM	-	-	Enquire
6500	4624091	TAPPET - VALVE	4624091 TAPPET - VALVE 3.445MM	-	-	Enquire
6500	LR037318	TAPPET - VALVE	LR037318 TAPPET - VALVE 3.460MM	-	-	Enquire
6500	4624095	TAPPET - VALVE	4624095 TAPPET - VALVE 3.475MM	-	-	Enquire
6500	4624096	TAPPET - VALVE	4624096 TAPPET - VALVE 3.490MM	-	-	Enquire
6500	4624099	TAPPET - VALVE	4624099 TAPPET - VALVE 3.505MM	-	-	Enquire
6500	4649521	TAPPET - VALVE	4649521 TAPPET - VALVE 3.520MM	-	-	Enquire
6500	4624102	TAPPET - VALVE	4624102 TAPPET - VALVE 3.535MM	-	-	Enquire
6500	4624103	TAPPET - VALVE	4624103 TAPPET - VALVE 3.550MM	-	-	Enquire
6500	4624104	TAPPET - VALVE	4624104 TAPPET - VALVE 3.565MM	-	-	Enquire
6500	4624107	TAPPET - VALVE	4624107 TAPPET - VALVE 3.580MM	-	-	Enquire
6500	4624108	TAPPET - VALVE	4624108 TAPPET - VALVE 3.595MM	-	-	Enquire
6500	4624110	TAPPET - VALVE	4624110 TAPPET - VALVE 3.610MM	-	-	Enquire
6500	4624111	TAPPET - VALVE	4624111 TAPPET - VALVE 3.625MM	-	-	Enquire
6500	4624112	TAPPET - VALVE	4624112 TAPPET - VALVE 3.640MM	-	-	Enquire
6500	4624113	TAPPET - VALVE	4624113 TAPPET - VALVE 3.655MM	-	-	Enquire
6500	4624115	TAPPET - VALVE	4624115 TAPPET - VALVE 3.670MM	-	-	Enquire
6500	4649522	TAPPET - VALVE	4649522 TAPPET - VALVE 3.685MM	-	-	Enquire
6500	4730107	Tappet	4730107 Tappet 3.520MM	-	-	Enquire
6500	4701390	TAPPET - VALVE	4701390 TAPPET - VALVE 2.98MM	-	-	Enquire
6505	4646004	VALVE - EXHAUST	4646004 VALVE - EXHAUST	-	16	Enquire
6507	4646005	VALVE - INLET	4646005 VALVE - INLET To: 6A999999	-	16	Enquire
6507	LR002447	VALVE - INLET	LR002447 VALVE - INLET From: 7A000001	-	16	Enquire
6513	4646003	SPRING - VALVE	4646003 SPRING - VALVE	-	32	Enquire
6518A	1069944	KEY	1069944 KEY	-	64	Enquire
6518B	1069876	RETAINER - VALVE SPRING	1069876 RETAINER - VALVE SPRING	-	64	Enquire
