Timing Gear (Upper) (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Timing Gear (Upper) (AJ Petrol 4.2 V8 Supercharged)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4556038 BOLT $3.17 To Order
Photo Part No Description Price (each) Stock
4174187 Belt/Chain - Timing $104.04 To Order
Photo Part No Description Price (each) Stock
4165653 BOLT $3.65 To Order
Photo Part No Description Price (each) Stock
4160902 SPACER $13.36 To Order
Photo Part No Description Price (each) Stock
LR004736 SPROCKET $395.29 To Order
Photo Part No Description Price (each) Stock
4663398 SPROCKET - CAMSHAFT $169.00 To Order
Photo Part No Description Price (each) Stock
4160971 SPROCKET - CRANKSHAFT $168.81 To Order
Photo Part No Description Price (each) Stock
4462683 TENSIONER - TIMING CHAIN $184.27 To Order
4462684 Tensioner - Timing Belt $156.80 To Order
View All

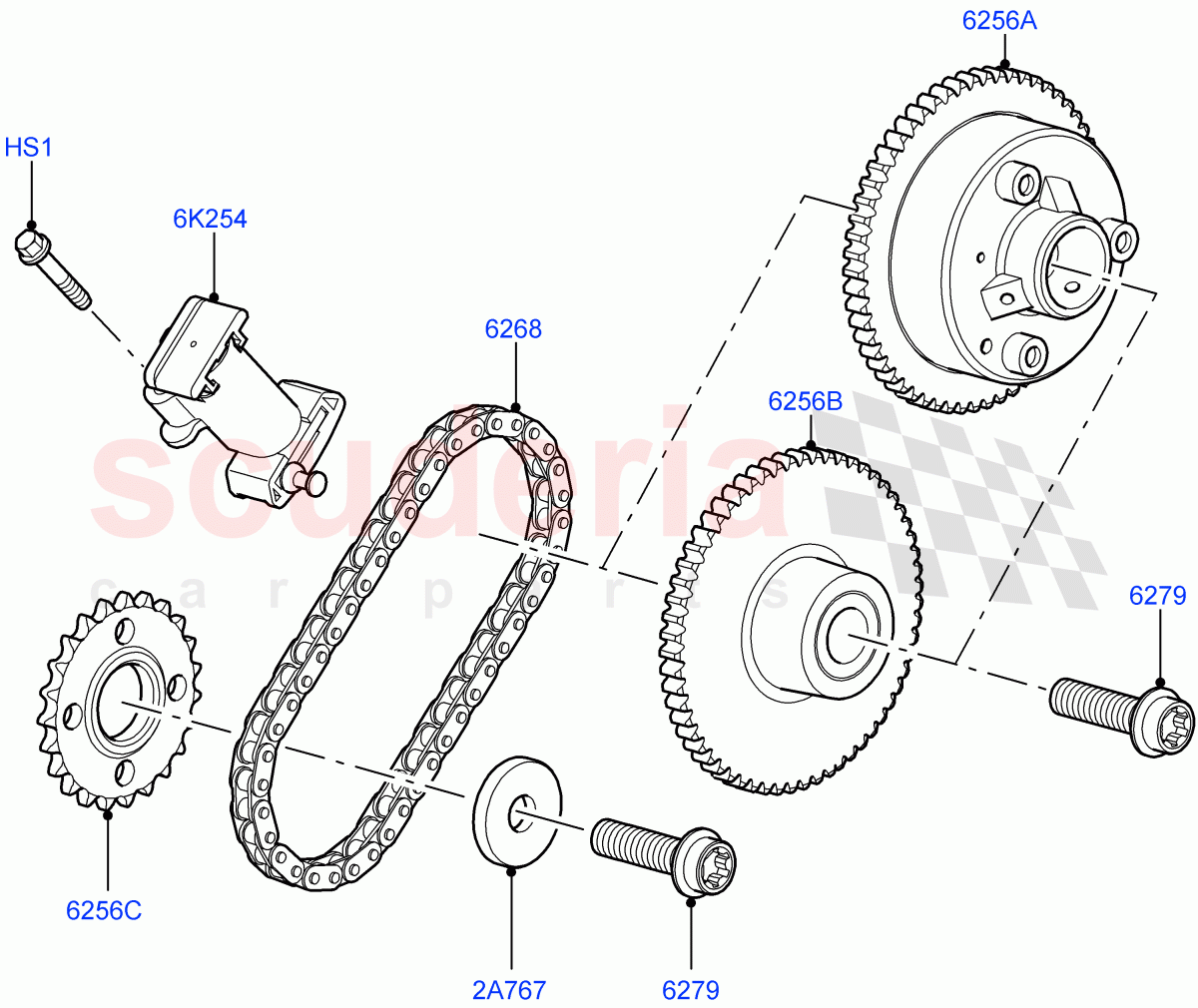

Timing Gear (Upper) (AJ Petrol 4.2 V8 Supercharged) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 4556038
BOLT
M6 x 35MM 		$3.17 2
2A767 4160902
SPACER 		$13.36 2
6K254 4462683
TENSIONER - TIMING CHAIN
RH, Timing Chain 		$184.27 1
6K254 4462684
Tensioner - Timing Belt
LH, Timing Chain 		$156.80 1
6256A LR004736
SPROCKET
Inlet, With Variable Valve Timing / From: 7A000001 		$395.29 2
6256B 4663398
SPROCKET - CAMSHAFT
Inlet, Less Variable Valve Timing 		$169.00 2
6256C 4160971
SPROCKET - CRANKSHAFT
Exhaust 		$168.81 2
6268 4174187
Belt/Chain - Timing 		$104.04 2
6279 4165653
BOLT
M12 		$3.65 4
