Fuel Injectors And Pipes (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Fuel Injectors And Pipes (AJ Petrol 4.2 V8 Supercharged)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS105087 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
1354399 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
3600290 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
TYP500030 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
4628235 GASKET - INTAKE MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
4650545 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
4650542 MANIFOLD - FUEL SUPPLY Enquire To Order
4743607 MANIFOLD - FUEL SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
MLH500024 PIPE - FUEL Enquire To Order
MLH500160 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
4650544 INJECTOR Enquire To Order
Photo Part No Description Price (each) Stock
MHU500060 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
4458309 SENSOR - FUEL INJECTOR PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
MAP500110 TUBE - FUEL SUPPLY Enquire To Order
MAP500180 TUBE - FUEL SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
LR000291 SENDER Enquire To Order
Photo Part No Description Price (each) Stock
4629180 ADAPTOR Enquire To Order
Photo Part No Description Price (each) Stock
4629181 ADAPTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR012785 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR012827 SEAL Enquire To Order
View All

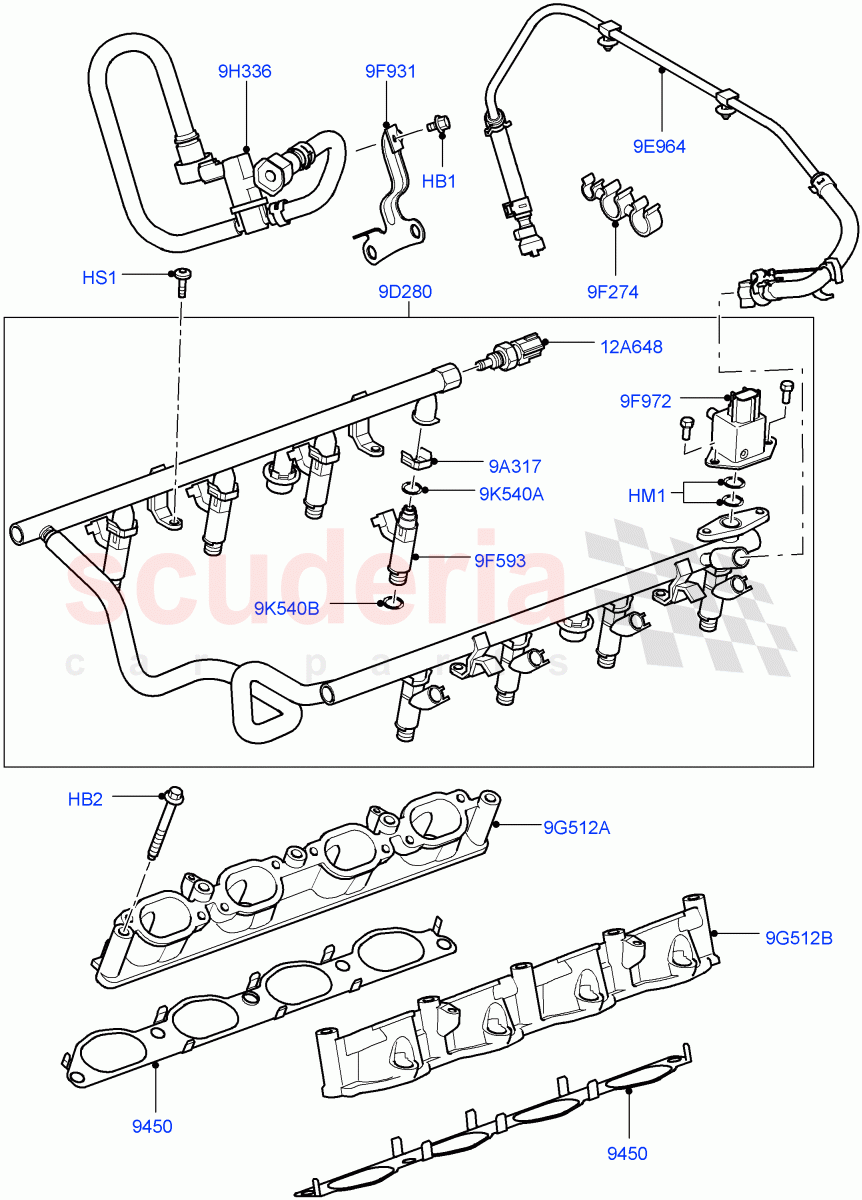

Fuel Injectors And Pipes (AJ Petrol 4.2 V8 Supercharged) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS105087
BOLT
M5 x 8MM 		- 1 Enquire
HB2 1354399
BOLT
M8 x 70MM 		- 10 Enquire
HM1 3600290
SEAL
7.0X1.98 O, O-Ring, Pack Of Four (4) 		- 2 Enquire
HS1 TYP500030
SCREW
M6 X 16MM, Torx 		- 4 Enquire
9A317 4650545
CLIP 		- 8 Enquire
9D280 4650542
MANIFOLD - FUEL SUPPLY
To: 6A916350 		- 1 Enquire
9D280 4743607
MANIFOLD - FUEL SUPPLY
From: 6A916351 		- 1 Enquire
9E964 MLH500024
PIPE - FUEL
To: 5A913524 		- 1 Enquire
9E964 MLH500160
PIPE - FUEL
From: 5A913525 		- 1 Enquire
9F593 4650544
INJECTOR 		- 8 Enquire
9F931 MHU500060
BRACKET
Valve Assembly 		- 1 Enquire
9F972 4458309
SENSOR - FUEL INJECTOR PRESSURE 		- 1 Enquire
9G512A 4629180
ADAPTOR
RH 		- 1 Enquire
9G512B 4629181
ADAPTOR
LH 		- 1 Enquire
9H336 MAP500110
TUBE - FUEL SUPPLY
Fuel Vapor Cannister Purge - Outlet, Valve Assembly / To: 5A913524 		- 1 Enquire
9H336 MAP500180
TUBE - FUEL SUPPLY
Fuel Vapor Cannister Purge - Outlet, Valve Assembly / From: 5A913525 		- 1 Enquire
9K540A LR012785
SEAL
Fuel Injector, Upper 		- 8 Enquire
9K540B LR012827
SEAL
Fuel Injector, Lower 		- 8 Enquire
12A648 LR000291
SENDER
Fuel Rail 		- 1 Enquire
9450 4628235
GASKET - INTAKE MANIFOLD 		- 2 Enquire
