Radiator/Coolant Overflow Container (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Radiator/Coolant Overflow Container (AJ Petrol 4.2 V8 Supercharged)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PYP500040 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
IPN500010 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR006990 NUT Enquire To Order
Photo Part No Description Price (each) Stock
PYP000221 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FS106167L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
MYP100500L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
AB608068 Screw Enquire To Order
Photo Part No Description Price (each) Stock
KGX500020 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
PCC500213 RADIATOR - WITH OIL COOLER Enquire To Order
PCC500540 RADIATOR Enquire To Order
PCC500680 RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
PCU500090 BRACKET Enquire To Order
PCU500091 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
PYB500020 PLUG - RADIATOR DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
PDI500012 INSULATOR - RADIATOR MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
PGG500280 FAN Enquire To Order
PGG500380 FAN Enquire To Order
LR025955 FAN Enquire To Order
Photo Part No Description Price (each) Stock
PCC500041 RADIATOR Enquire To Order
PCC500630 RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
PCC500260 RADIATOR Enquire To Order
LR009007 RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR016206 SHROUD - RADIATOR FAN Enquire To Order
PGK500200 SHROUD - RADIATOR FAN Enquire To Order
Photo Part No Description Price (each) Stock
PGK500111 SHROUD - RADIATOR FAN Enquire To Order
PGK500210 SHROUD - RADIATOR FAN Enquire To Order
Photo Part No Description Price (each) Stock
PCF500014 TANK - RADIATOR OVERFLOW Enquire To Order
PCF500015 TANK - RADIATOR OVERFLOW Enquire To Order
PCF500090 TANK - RADIATOR OVERFLOW Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
PCZ500010 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR007315 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
PDG500045 PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR007314 VALVE - BLEEDER SCREW Enquire To Order
Photo Part No Description Price (each) Stock
PCD000090 CAP Enquire To Order
Photo Part No Description Price (each) Stock
PCJ500030 SENSOR - COOLANT LEVEL Enquire To Order
Photo Part No Description Price (each) Stock
PCG500090 GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
PCG500011 GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
PCU500220 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
PYC500080 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
DHE500010 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
PZB500020 SEAL Enquire To Order
View All

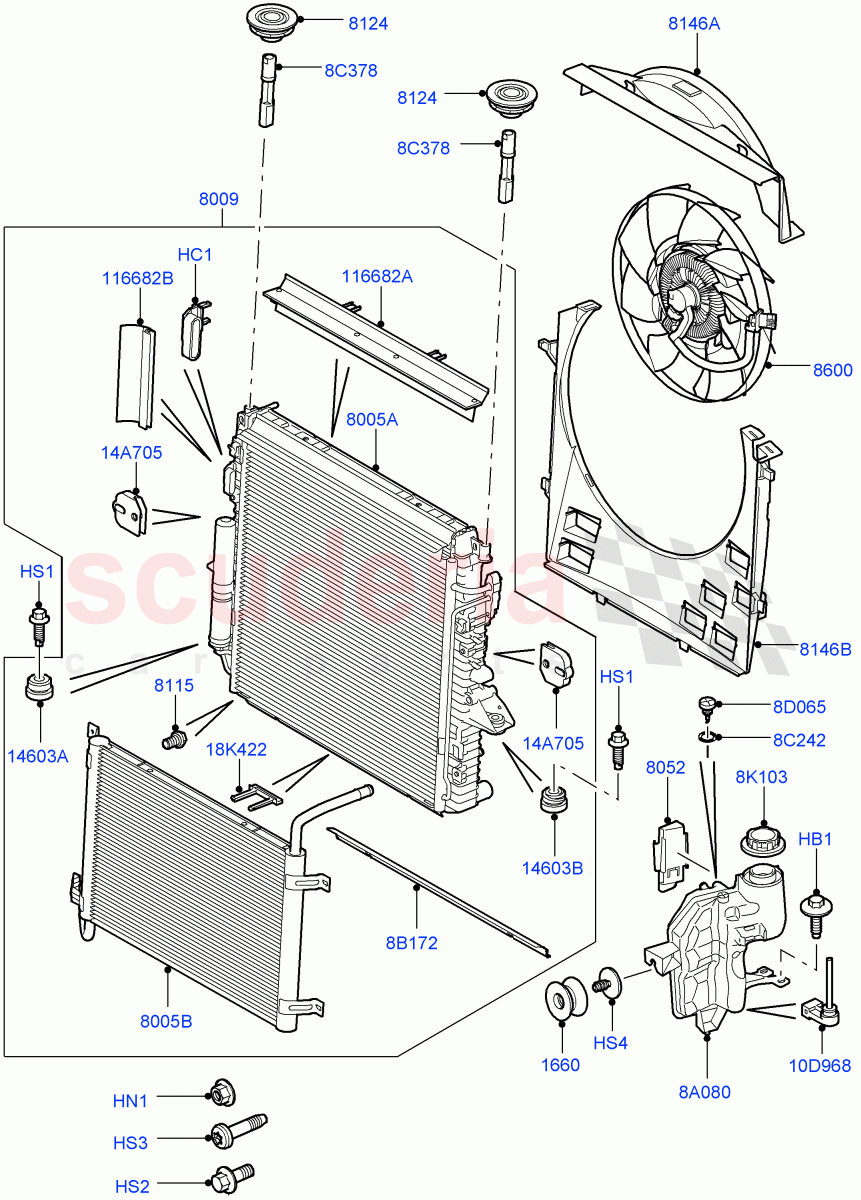

Radiator/Coolant Overflow Container (AJ Petrol 4.2 V8 Supercharged) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 PYP500040
SCREW AND WASHER
M6 X 20MM 		- 2 Enquire
HC1 IPN500010
CLIP
Radiator Support 		- 1 Enquire
HN1 LR006990
NUT
M6 		- 1 Enquire
HS1 PYP000221
SCREW AND WASHER
M8 X 25MM 		- 2 Enquire
HS2 FS106167L
SCREW
M6 X 16MM 		- 1 Enquire
HS3 MYP100500L
SCREW
6 X 26 		- 1 Enquire
HS4 AB608068
Screw
4.2 X 19MM 		- 1 Enquire
8A080 PCF500014
TANK - RADIATOR OVERFLOW
With Sensor / To: 5A910671 		- 1 Enquire
8A080 PCF500015
TANK - RADIATOR OVERFLOW
With Sensor / From: 5A910672 / To: 6A999999 		- 1 Enquire
8A080 PCF500090
TANK - RADIATOR OVERFLOW
With Sensor / From: 7A000001 / To: 8A129794 		- 1 Enquire
8A080 PCF500110
TANK - RADIATOR OVERFLOW
With Sensor / From: 8A129795 		- 1 Enquire
8B172 PCZ500010
SEAL 		- 1 Enquire
8C242 LR007315
SEAL
Bleeder Screw / From: 8A129795 		- 1 Enquire
8C378 PDG500045
PIN
Radiator Mounting, Top 		- 2 Enquire
8D065 LR007314
VALVE - BLEEDER SCREW
Bleeder Screw / From: 8A129795 		- 1 Enquire
8K103 PCD000090
CAP 		- 1 Enquire
10D968 PCJ500030
SENSOR - COOLANT LEVEL
For Service 		- 1 Enquire
14A705 PCU500220
BRACKET 		- 2 Enquire
18K422 PYC500080
CLIP 		- 1 Enquire
1660 KGX500020
SPACER 		- 1 Enquire
8005A PCC500041
RADIATOR
To: 8A122817 		- 1 Enquire
8005A PCC500630
RADIATOR
From: 8A122818 		- 1 Enquire
8005B PCC500260
RADIATOR
Auxiliary / To: 8A184670 		- 1 Enquire
8005B LR009007
RADIATOR
Auxiliary / From: 8A184671 		- 1 Enquire
8009 PCC500213
RADIATOR - WITH OIL COOLER
To: 8A122817 		- 1 Enquire
8009 PCC500540
RADIATOR
From: 8A122818 / To: 8A184670 		- 1 Enquire
8009 PCC500680
RADIATOR
From: 8A184671 		- 1 Enquire
8052 PCU500090
BRACKET
To: 5A901923 		- 1 Enquire
8052 PCU500091
BRACKET
From: 5A901924 		- 1 Enquire
8115 PYB500020
PLUG - RADIATOR DRAIN 		- 1 Enquire
8124 PDI500012
INSULATOR - RADIATOR MOUNTING
Radiator Mounting, Top 		- 2 Enquire
8146A LR016206
SHROUD - RADIATOR FAN 		- 1 Enquire
8146A PGK500200
SHROUD - RADIATOR FAN
For Hot Climate Zones 		- 1 Enquire
8146B PGK500111
SHROUD - RADIATOR FAN 		- 1 Enquire
8146B PGK500210
SHROUD - RADIATOR FAN
For Hot Climate Zones 		- 1 Enquire
8600 PGG500280
FAN
To: 8A154783 		- 1 Enquire
8600 PGG500380
FAN
From: 8A154784 / To: 8A999999 		- 1 Enquire
8600 LR025955
FAN
From: 9A000001 		- 1 Enquire
14603A PCG500090
GROMMET
Round 		- 1 Enquire
14603B PCG500011
GROMMET
Screw Type 		- 1 Enquire
116682A DHE500010
SEAL 		- 1 Enquire
116682B PZB500020
SEAL 		- 2 Enquire
