Name: Cylinder Block And Plugs (AJ Petrol 4.2 V8 Supercharged)
Rating: 4.1 (1 reviews)

View All

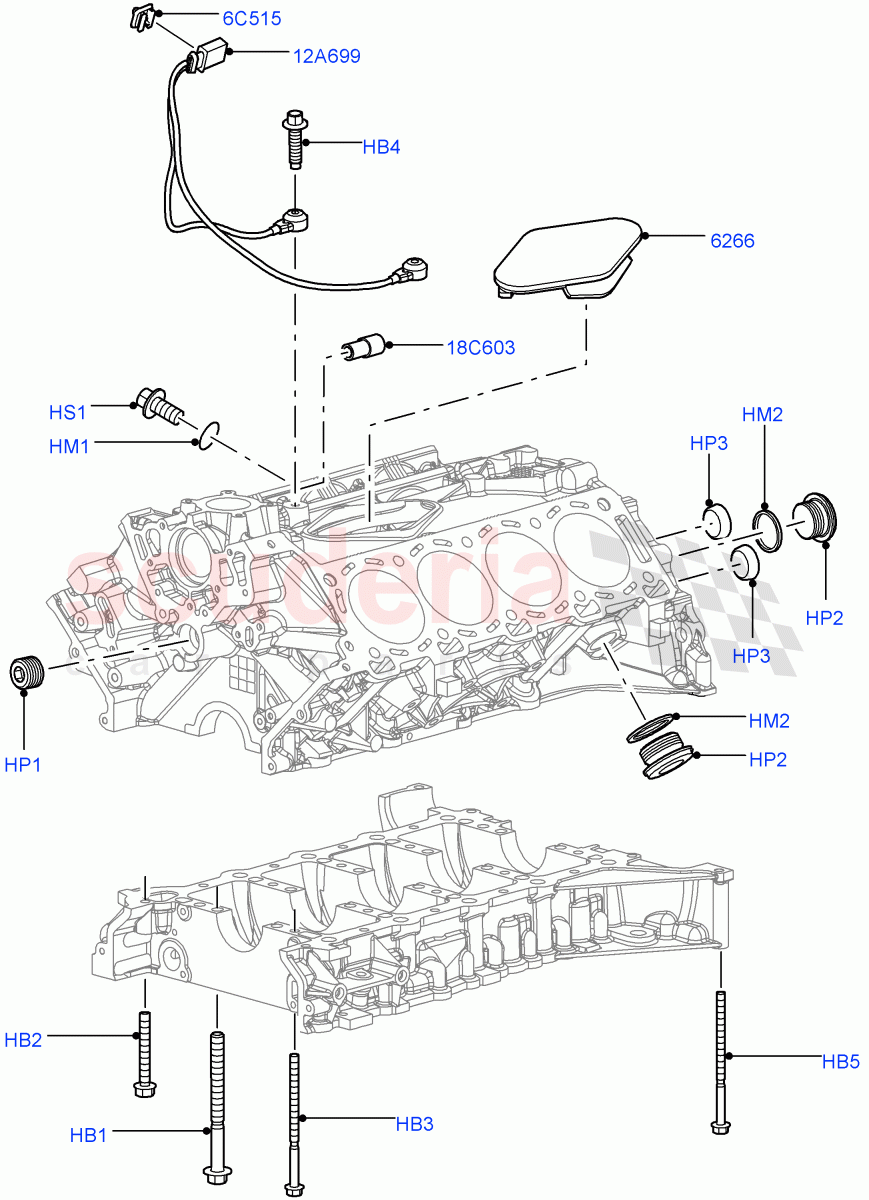

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6746838	BOLT - HEX.HEAD	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005589	BOLT - BEARING CAP - HEX. HEAD	$7.71	To Order

Photo	Part No	Description	Price (each)	Stock
	4640314	SEAL	$3.86	To Order

Photo	Part No	Description	Price (each)	Stock
	4640315	SEAL - PLUG	$12.95	To Order

Photo	Part No	Description	Price (each)	Stock
	4501202	PLUG	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	4640317	PLUG - DRAIN	$7.32	To Order

Photo	Part No	Description	Price (each)	Stock
	1069179	PLUG - ENGINE	$0.51	To Order

Photo	Part No	Description	Price (each)	Stock
	4556037	SCREW	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	1069338	COVER - CYLINDER HEAD	$86.52	To Order

Photo	Part No	Description	Price (each)	Stock
	4603189	CLIP	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	4603186	SENSOR - ENGINE KNOCK	$156.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1312289	PIPE	$4.92	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR005586	BOLT	LR005586 BOLT M10 X 1.5 / To: 6A999999	$7.06	10
HB1	LR005586	BOLT	LR005586 BOLT M10 X 1.5 / From: 7A000001	$7.06	10
HB2	LR005588	BOLT	LR005588 BOLT M8 X 1.25 / To: 6A999999	$5.54	12
HB2	LR005588	BOLT	LR005588 BOLT M8 X 1.25 / From: 7A000001	$5.54	10
HB3	LR005587	BOLT	LR005587 BOLT M8 X 1.25 X 110 / To: 6A999999	$6.11	10
HB3	LR005587	BOLT	LR005587 BOLT M8 X 1.25 X 110 / From: 7A000001	$6.11	10
HB4	6746838	BOLT - HEX.HEAD	6746838 BOLT - HEX.HEAD M8 x 30MM	$0.73	2
HB5	LR005589	BOLT - BEARING CAP - HEX. HEAD	LR005589 BOLT - BEARING CAP - HEX. HEAD M8 X 1.25 X 110 / From: 7A000001	$7.71	2
HM1	4640314	SEAL	4640314 SEAL 9.6 X 18.83 X 2.9MM	$3.86	1
HM2	4640315	SEAL - PLUG	4640315 SEAL - PLUG 28.25 X 39.13 X 4	$12.95	2
HP1	4501202	PLUG	4501202 PLUG M30 x 1.5MM	$1.31	1
HP2	4640317	PLUG - DRAIN	4640317 PLUG - DRAIN M30	$7.32	2
HP3	1069179	PLUG - ENGINE	1069179 PLUG - ENGINE 28MM, Cup Type	$0.51	2
HS1	4556037	SCREW	4556037 SCREW Hexagonal Head, M10 x 16MM	$0.73	1
6C515	4603189	CLIP	4603189 CLIP	$0.70	1
12A699	4603186	SENSOR - ENGINE KNOCK IN STOCK	4603186 SENSOR - ENGINE KNOCK IN STOCK	$156.26	1
18C603	1312289	PIPE	1312289 PIPE	$4.92	1
6266	1069338	COVER - CYLINDER HEAD	1069338 COVER - CYLINDER HEAD	$86.52	1

Cylinder Block And Plugs (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]
