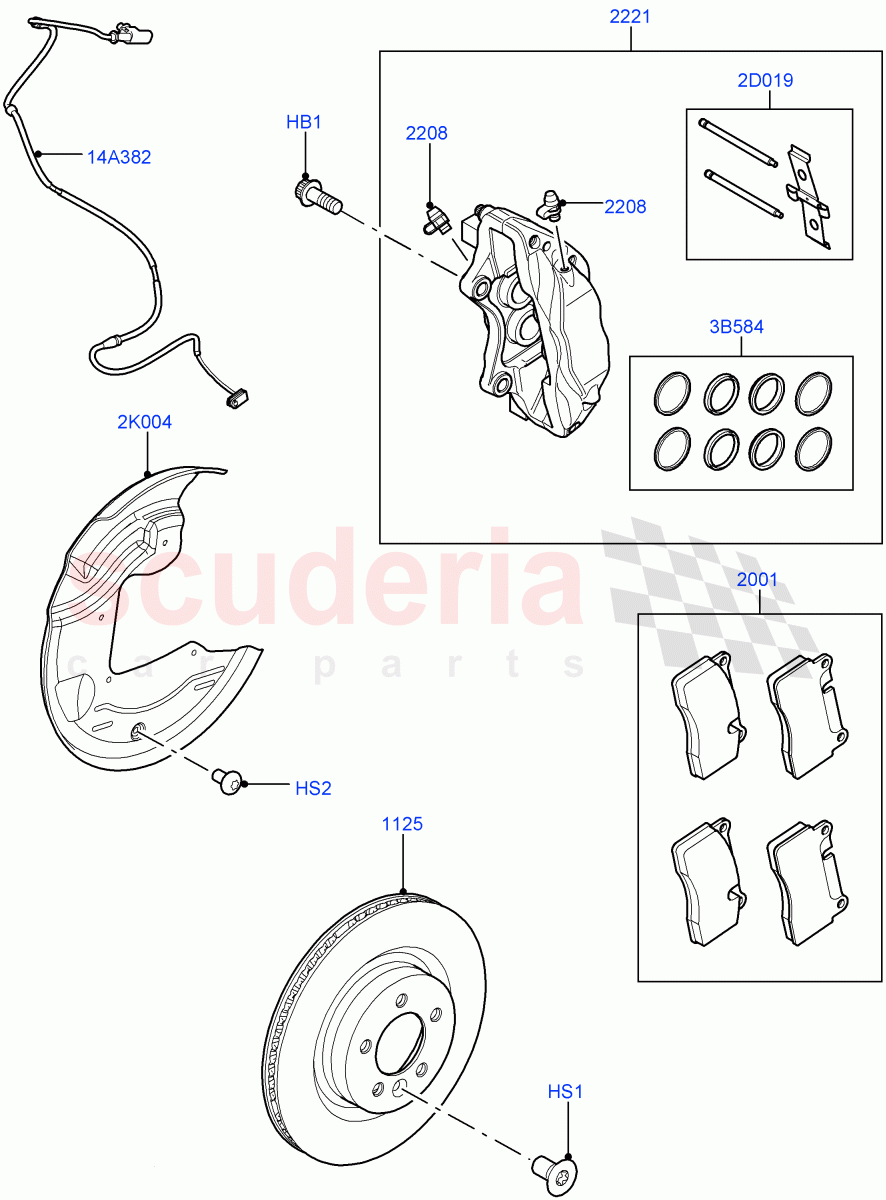

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SYP100241	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYP500020	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148353	BRAKE PADS - LESS SPRINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SEE500070	KIT - CAP AND MOUNTINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SEE500080	KIT - BRAKE CALIPER ATTACHMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SEE500040	KIT - CALIPER SEAL	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	SYG000012	BOLT	SYG000012 BOLT M16 X 1.5 X 45 / To: 6A999999	-	4	Enquire
HB1	SYG500050	BOLT	SYG500050 BOLT M16 X 1.5 X 45 / From: 7A000001	-	4	Enquire
HS1	SYP100241	SCREW	SYP100241 SCREW M10 X 1.5	-	2	Enquire
HS2	SYP500020	SCREW	SYP500020 SCREW M6 X 10MM, Torx	-	10	Enquire
2D019	SEE500080	KIT - BRAKE CALIPER ATTACHMENT	SEE500080 KIT - BRAKE CALIPER ATTACHMENT Pad Clip And Retaining Pins	-	2	Enquire
2K004	SEC000182	SHIELD - SPLASH	SEC000182 SHIELD - SPLASH RH	-	1	Enquire
2K004	SEC000192	SHIELD - SPLASH	SEC000192 SHIELD - SPLASH LH	-	1	Enquire
3B584	SEE500040	KIT - CALIPER SEAL	SEE500040 KIT - CALIPER SEAL Caliper Set	-	2	Enquire
14A382	SEM500026	WIRE - BRAKE PAD WEAR WARNING	SEM500026 WIRE - BRAKE PAD WEAR WARNING To: 6A999999	-	1	Enquire
14A382	SEM500090	WIRING	SEM500090 WIRING From: 7A000001	-	1	Enquire
1125	SDB000622	ROTOR	SDB000622 ROTOR To: 5A905181	-	2	Enquire
1125	SDB000623	ROTOR	SDB000623 ROTOR From: 5A905182 / To: 6A953688	-	2	Enquire
1125	SDB000624	DISC - BRAKE - VENTED	SDB000624 DISC - BRAKE - VENTED From: 6A953689	-	2	Enquire
2001	LR148353	BRAKE PADS - LESS SPRINGS	LR148353 BRAKE PADS - LESS SPRINGS	-	1	Enquire
2208	SEE500070	KIT - CAP AND MOUNTINGS	SEE500070 KIT - CAP AND MOUNTINGS	-	2	Enquire
2221	SEB500080	KIT - CALIPER REPAIR	SEB500080 KIT - CALIPER REPAIR LH	-	1	Enquire
2221	SEB500090	KIT - CALIPER REPAIR	SEB500090 KIT - CALIPER REPAIR RH	-	1	Enquire
