View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4467593	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007096	GEAR - DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1418837	SPROCKET - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1418833	CHAIN - TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002440	TENSIONER - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1418840	GEAR - CAMSHAFT DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1418836	ARM - TIMING CHAIN TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1418844	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1418835	CHAIN - TIMING - GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1418838	BOLT - SPECIAL	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1325840	BOLT	1325840 BOLT M12 X 35MM / From: 7A000001 / To: 7A999999	-	3	Enquire
HB1	LR068165	BOLT	LR068165 BOLT M12 x 1.5 x 35MM / From: 8A000001	-	3	Enquire
HS1	4467593	BOLT - HEX.HEAD	4467593 BOLT - HEX.HEAD Hexagonal Head, M6 X 20MM / From: 7A000001	-	4	Enquire
6A303	1418840	GEAR - CAMSHAFT DRIVE	1418840 GEAR - CAMSHAFT DRIVE From: 7A000001	-	4	Enquire
6K255	1418836	ARM - TIMING CHAIN TENSIONER	1418836 ARM - TIMING CHAIN TENSIONER From: 7A000001	-	2	Enquire
6L293	1418844	BOLT - HEX.HEAD	1418844 BOLT - HEX.HEAD From: 7A000001	-	1	Enquire
6M256	1418835	CHAIN - TIMING - GUIDE	1418835 CHAIN - TIMING - GUIDE From: 7A000001	-	2	Enquire
6U000	1418838	BOLT - SPECIAL	1418838 BOLT - SPECIAL M22 / From: 7A000001	-	2	Enquire
6255	LR007096	GEAR - DRIVE	LR007096 GEAR - DRIVE From: 7A000001	-	1	Enquire
6256	1418837	SPROCKET - CAMSHAFT	1418837 SPROCKET - CAMSHAFT From: 7A000001	-	2	Enquire
6268	1418833	CHAIN - TIMING	1418833 CHAIN - TIMING From: 7A000001	-	2	Enquire
6284	LR002440	TENSIONER - TIMING CHAIN	LR002440 TENSIONER - TIMING CHAIN From: 7A000001	-	2	Enquire

Haven't found what you're looking for?

View Cart / Checkout

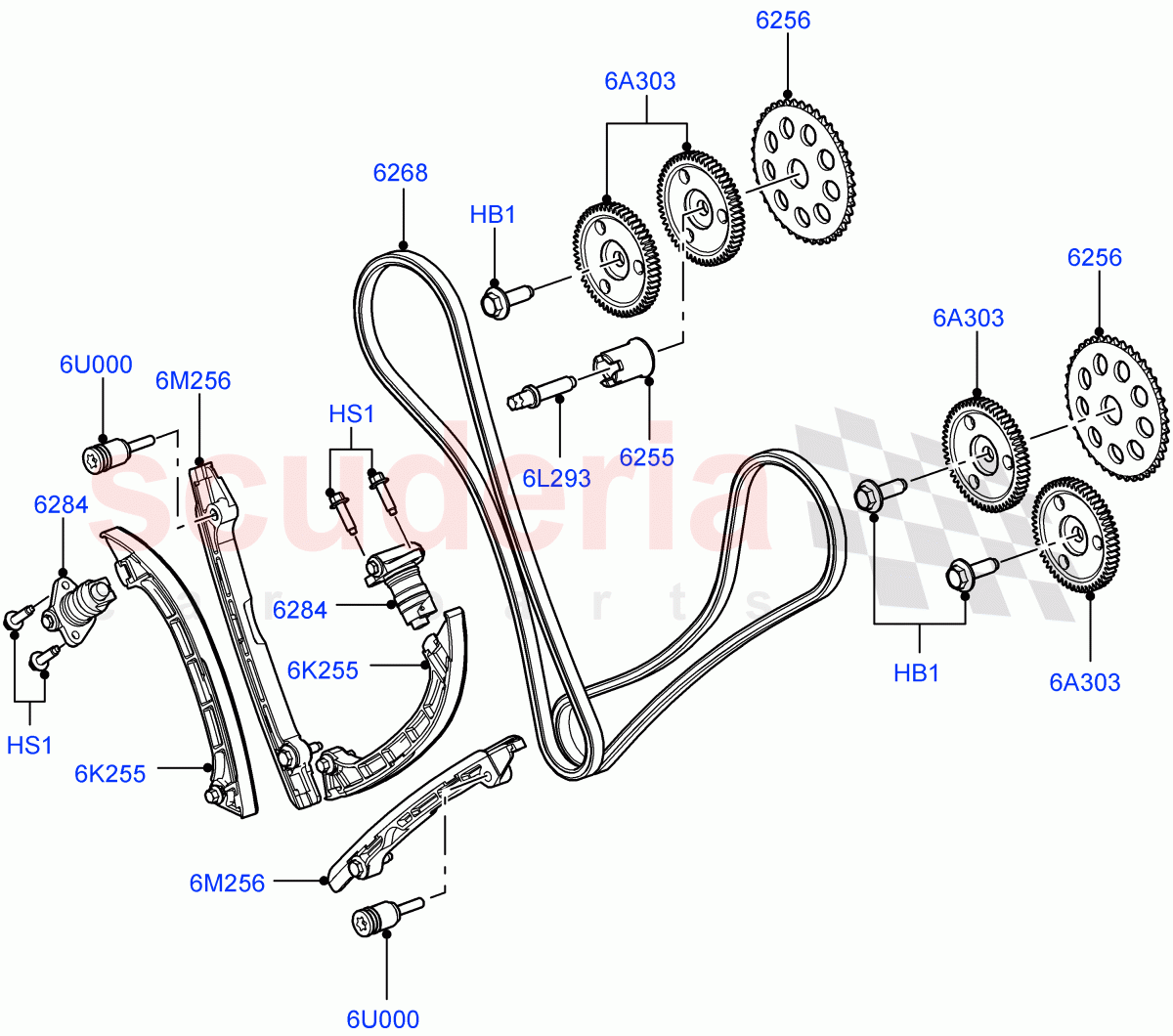

Timing Gear (3.6L V8 32V Dohc Efi Diesel Lion) ((V) From7A000001, (V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]
