Oil Pan/Oil Level Indicator (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Oil Pan/Oil Level Indicator (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)

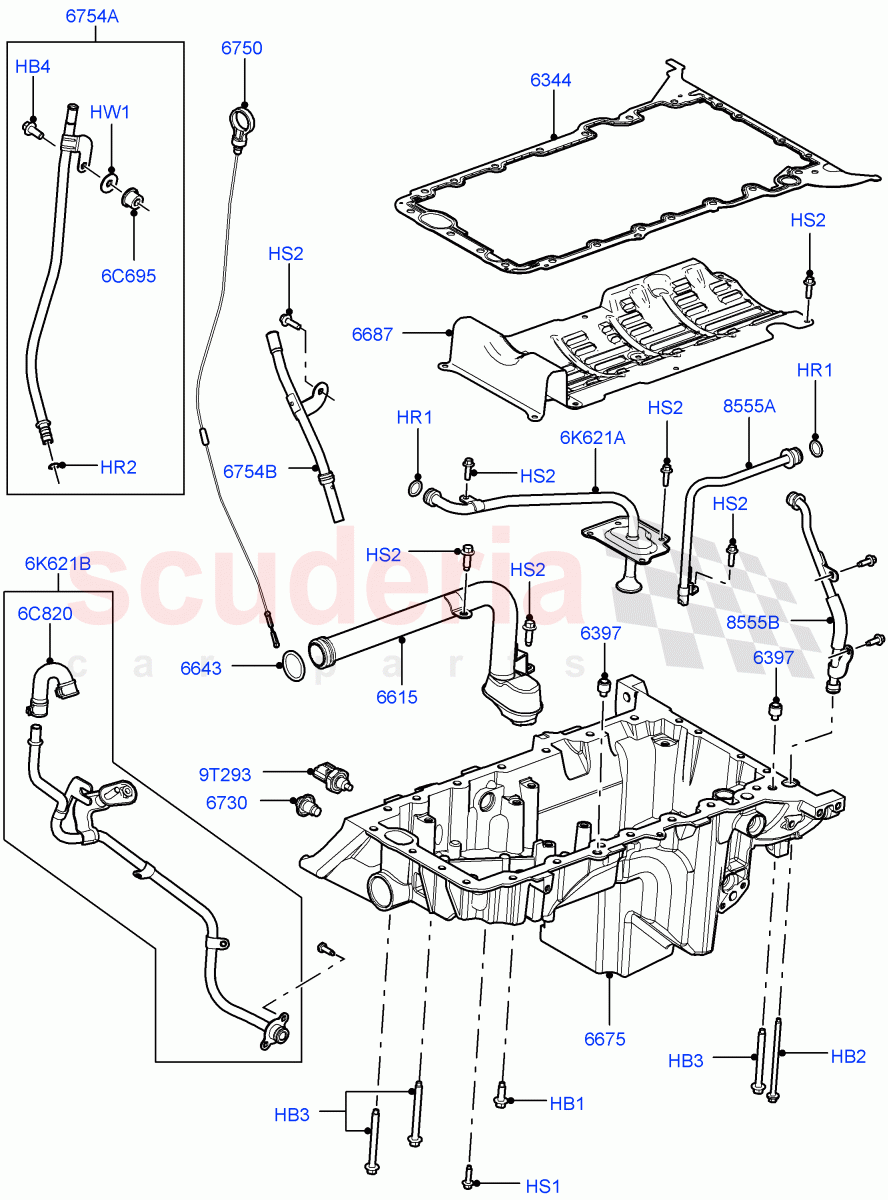

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1305834	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1225745	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1419374	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4409298	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1418982	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004688	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500360	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4467593	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYF500070	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002438	GASKET - OIL PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1316114	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006381	TUBE - OIL PUMP INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002459	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004293	PAN - ENGINE OIL	Enquire	To Order
	LR005998	PAN - ENGINE OIL	Enquire	To Order
	LR017918	PAN - ENGINE OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002451	BAFFLE - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LQM500060	Indicator - Oil Level	Enquire	To Order
	LQM500080	INDICATOR - OIL LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LQN500070	TUBE - OIL LEVEL INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003659	TUBE - OIL LEVEL INDICATOR	Enquire	To Order
	LR005276	TUBE - OIL LEVEL INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007738	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002437	HOSE - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1418983	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003581	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1359056	SENDER - OIL TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1418981	TUBE - OIL PUMP INLET	Enquire	To Order
	LR006143	TUBE - OIL PUMP INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003663	SCREEN AND COVER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1305834	BOLT	1305834 BOLT M8 X 20MM / From: 7A000001	-	12	Enquire
HB2	1225745	BOLT AND WASHER - HEX.HEAD	1225745 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M6 X 105MM / From: 7A000001	-	4	Enquire
HB3	1419374	BOLT	1419374 BOLT M8 X 75MM / From: 7A000001	-	3	Enquire
HB4	4409298	SCREW	4409298 SCREW M8 X 20MM / From: 7A000001	-	1	Enquire
HR1	1418982	O-RING	1418982 O-RING 15 X 3MM / From: 7A000001	-	1	Enquire
HR2	LR004688	RING - SEALING	LR004688 RING - SEALING	-	2	Enquire
HS1	KYP500360	SCREW	KYP500360 SCREW M6 X 20MM / From: 7A000001	-	21	Enquire
HS2	4467593	BOLT - HEX.HEAD	4467593 BOLT - HEX.HEAD Hexagonal Head, M6 X 20MM / From: 7A000001	-	3	Enquire
HW1	WYF500070	Washer	WYF500070 Washer 8.6 X 25 X 2 / From: 7A000001	-	1	Enquire
6C695	LR007738	GROMMET	LR007738 GROMMET From: 7A000001	-	1	Enquire
6C820	LR002437	HOSE - OIL	LR002437 HOSE - OIL From: 7A000001	-	1	Enquire
6K621A	1418981	TUBE - OIL PUMP INLET	1418981 TUBE - OIL PUMP INLET From: 7A000001 / To: 7A100660	-	1	Enquire
6K621A	LR006143	TUBE - OIL PUMP INLET	LR006143 TUBE - OIL PUMP INLET Oil Pan To Oil Pump / From: 7A100661	-	1	Enquire
6K621B	LR003663	SCREEN AND COVER	LR003663 SCREEN AND COVER From: 7A000001	-	1	Enquire
9T293	1359056	SENDER - OIL TEMPERATURE	1359056 SENDER - OIL TEMPERATURE From: 7A000001	-	1	Enquire
6344	LR002438	GASKET - OIL PAN	LR002438 GASKET - OIL PAN Oil Pan / From: 7A000001	-	1	Enquire
6397	1316114	DOWEL	1316114 DOWEL From: 7A000001	-	2	Enquire
6615	LR006381	TUBE - OIL PUMP INLET	LR006381 TUBE - OIL PUMP INLET From: 7A000001	-	1	Enquire
6643	LR002459	O-RING	LR002459 O-RING Inlet Tube, Oil Pump / From: 7A000001	-	1	Enquire
6675	LR004293	PAN - ENGINE OIL	LR004293 PAN - ENGINE OIL From: 7A000001 / To: 7A100660	-	1	Enquire
6675	LR005998	PAN - ENGINE OIL	LR005998 PAN - ENGINE OIL From: 7A100661 / To: 9A212088	-	1	Enquire
6675	LR017918	PAN - ENGINE OIL	LR017918 PAN - ENGINE OIL From: 9A212089	-	1	Enquire
6687	LR002451	BAFFLE - OIL	LR002451 BAFFLE - OIL From: 7A000001	-	1	Enquire
6730	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN Head Size: 13mm, Includes Seal, M14 X 1.5 / From: 7A000001	-	2	Enquire
6750	LQM500060	Indicator - Oil Level	LQM500060 Indicator - Oil Level From: 7A000001 / To: 8A120564	-	1	Enquire
6750	LQM500080	INDICATOR - OIL LEVEL	LQM500080 INDICATOR - OIL LEVEL From: 8A120565	-	1	Enquire
6754A	LQN500070	TUBE - OIL LEVEL INDICATOR	LQN500070 TUBE - OIL LEVEL INDICATOR Upper / From: 7A000001	-	1	Enquire
6754B	LR003659	TUBE - OIL LEVEL INDICATOR	LR003659 TUBE - OIL LEVEL INDICATOR Lower / From: 7A000001 / To: 7A994029	-	1	Enquire
6754B	LR005276	TUBE - OIL LEVEL INDICATOR	LR005276 TUBE - OIL LEVEL INDICATOR Lower / From: 7A994030	-	1	Enquire
8555A	1418983	TUBE	1418983 TUBE Crankcase Ventilation, Includes O-Ring, Lower / From: 7A000001	-	1	Enquire
8555B	LR003581	TUBE	LR003581 TUBE Includes O-Ring, Oil - Drain, Upper / From: 7A000001	-	1	Enquire
