Cooling System Pipes And Hoses (3.6L V8 32V Dohc Efi Diesel Lion) ((V) From7A000001, (V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Cooling System Pipes And Hoses (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1419375 BOLT Enquire To Order
FS108167 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
PCH502900 HOSE Enquire To Order
PCH503260 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR008276 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
PCH503110 HOSE - HEATER WATER Enquire To Order
PCH503250 HOSE - HEATER WATER Enquire To Order
PCH503340 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR005821 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
PCH502620 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR001850 CONNECTOR Enquire To Order
LR005819 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
PCH503190 HOSE - RADIATOR Enquire To Order
PCH503270 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
PCH502680 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR008202 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR008237 HOSE - WATER OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
PEH500340 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
PEH500360 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
PEH500350 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
PEH500420 Hose Enquire To Order
PEH500440 HOSE Enquire To Order
PEH500221 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
PCH502930 HOSE Enquire To Order
PCH503280 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
1418972 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
PIH500170 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
PCH502980 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
PCH502520 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
PCH502530 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
PCH502630 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
PCH502640 HOSE Enquire To Order
LR010076 Hose Enquire To Order
Photo Part No Description Price (each) Stock
LR003648 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR003647 HOSE Enquire To Order
LR005822 HOSE Enquire To Order
View All

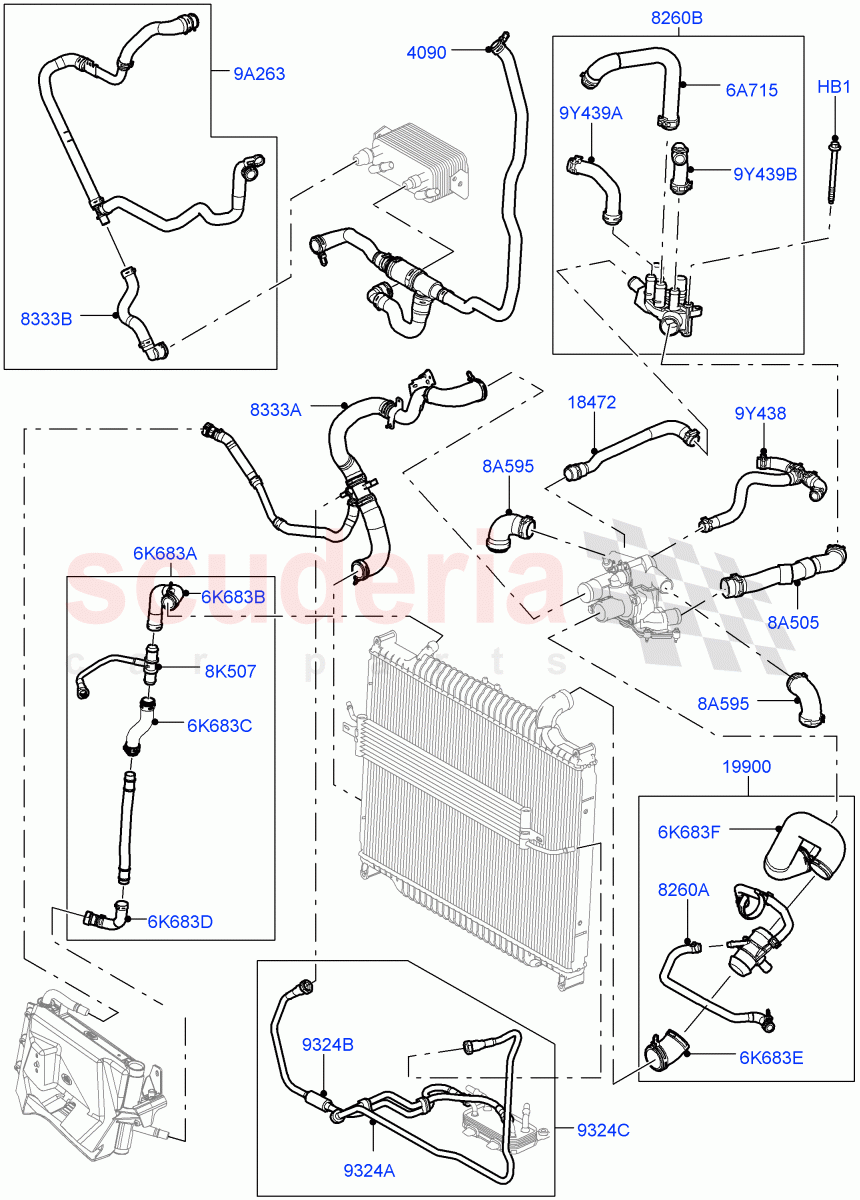

Cooling System Pipes And Hoses (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1419375
BOLT
M6 X 71 / From: 7A000001 		- 2 Enquire
HB1 FS108167
SCREW
M8 X 16MM 		- 3 Enquire
6A715 LR005821
HOSE
Engine, Oil Cooler, Outlet Tube / From: 7A000001 		- 1 Enquire
6K683A PIH500170
HOSE
Auxiliary cooler, For Fuel Cooler / From: 7A000001 		- 1 Enquire
6K683B PCH502980
HOSE
From: 7A000001 		- 1 Enquire
6K683C PCH502520
HOSE
From: 7A000001 		- 1 Enquire
6K683D PCH502530
HOSE
From: 7A000001 		- 1 Enquire
6K683E PCH502630
HOSE
From: 7A000001 		- 1 Enquire
6K683F PCH502640
HOSE
From: 7A000001 / To: 7A999999 		- 1 Enquire
6K683F LR010076
Hose
From: 8H000001 		- 1 Enquire
8A505 LR008202
HOSE
Connector, Inlet Tube / From: 7A000001 		- 1 Enquire
8A595 LR008237
HOSE - WATER OUTLET
To Cylinder Head / From: 7A000001 		- 2 Enquire
8K507 PEH500340
HOSE
From: 7A000001 		- 1 Enquire
9A263 PCH502930
HOSE
Expansion Reservoir To Thermostat / From: 7A000001 / To: 7A999999 		- 1 Enquire
9A263 PCH503280
HOSE
Expansion Reservoir To Thermostat / From: 8A000001 		- 1 Enquire
9Y438 1418972
HOSE
Cooled EGR, Inlet Tube / From: 7A000001 		- 1 Enquire
9Y439A LR003648
HOSE
Cooled EGR, Outlet Tube / From: 7A000001 		- 1 Enquire
9Y439B LR003647
HOSE
Cooled EGR, Outlet Tube / From: 7A000001 / To: 7A998313 		- 1 Enquire
9Y439B LR005822
HOSE
Cooled EGR, Outlet Tube / From: 7A998314 		- 1 Enquire
4090 PCH502900
HOSE
With Fuel Fired Heater / Attaches To Bottom Of Radiator, To Top Hose / From: 7A000001 / To: 7A107551 		- 1 Enquire
4090 PCH503260
HOSE
With Fuel Fired Heater / Attaches To Bottom Of Radiator, To Top Hose / From: 7A107552 		- 1 Enquire
8260A PCH502620
TUBE
From: 7A000001 		- 1 Enquire
8260B LR001850
CONNECTOR
Connector, Cooled EGR / From: 7A000001 / To: 7A998313 		- 1 Enquire
8260B LR005819
CONNECTOR
Connector, Cooled EGR / From: 7A998314 		- 1 Enquire
8333A PCH503190
HOSE - RADIATOR
Bottom / From: 7A000001 / To: 7A999999 		- 1 Enquire
8333A PCH503270
HOSE - RADIATOR
Bottom / From: 8A000001 		- 1 Enquire
8333B PCH502680
HOSE - RADIATOR
From: 7A000001 / To: 7A962489 		- 1 Enquire
9324A PEH500360
HOSE
From: 7A000001 		- 1 Enquire
9324B PEH500350
HOSE
From: 7A000001 		- 1 Enquire
9324C PEH500420
Hose
From: 7A990469 / To: 7A999999 		- 1 Enquire
9324C PEH500440
HOSE
For Fuel Cooler / From: 8A000001 		- 1 Enquire
9324C PEH500221
HOSE
From: 7A000001 / To: 7A990468 		- 1 Enquire
18472 LR008276
HOSE - HEATER WATER
From Thermostat To Water Connector / From: 7A000001 		- 1 Enquire
19900 PCH503110
HOSE - HEATER WATER
Top / From: 7A000001 / To: 7A107551 		- 1 Enquire
19900 PCH503250
HOSE - HEATER WATER
Top / From: 7A107552 / To: 9A206906 		- 1 Enquire
19900 PCH503340
HOSE - HEATER WATER
Top / From: 9A206907 		- 1 Enquire
