Find Your Part

View All

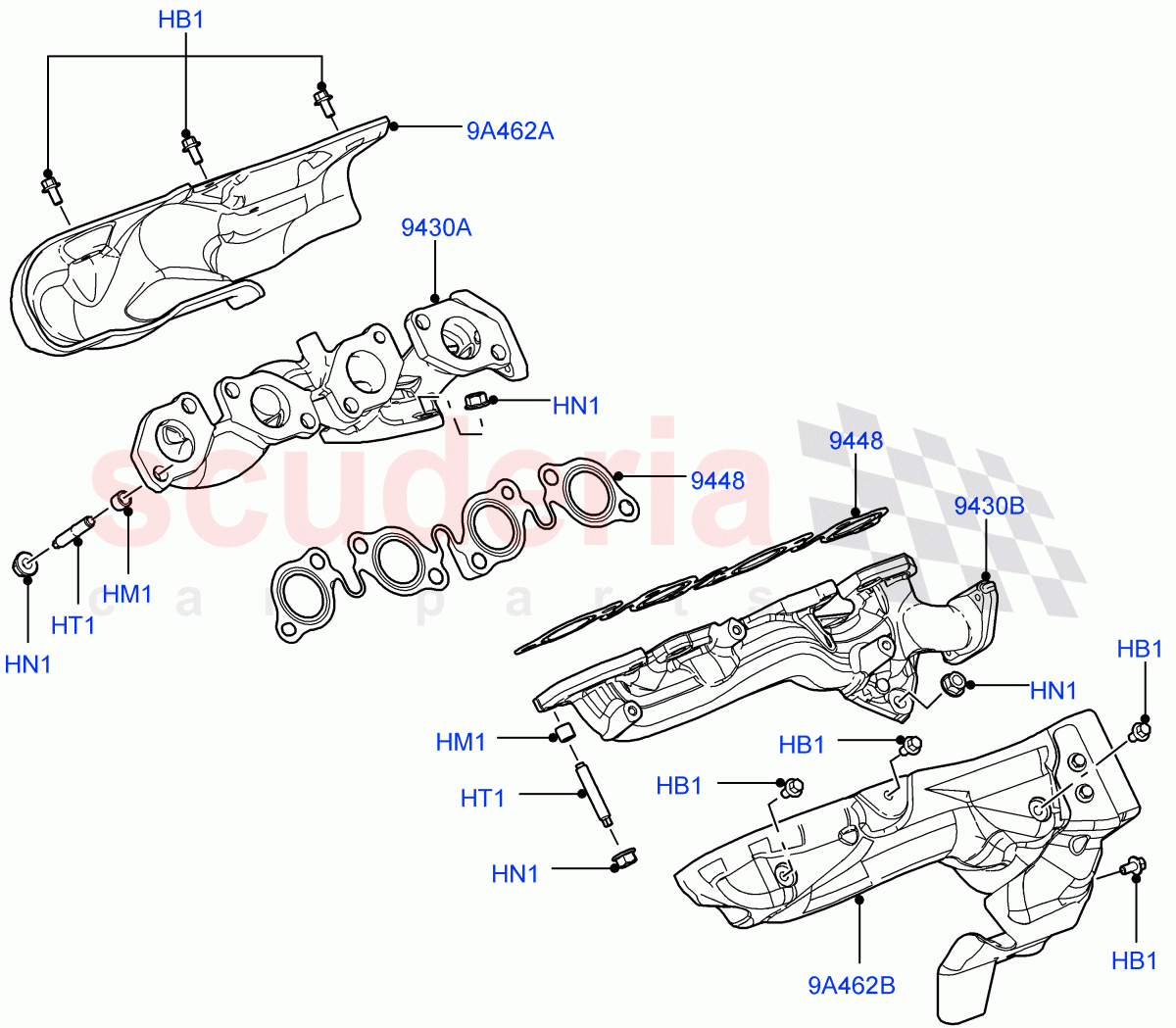

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LYG500210	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1003736	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6076340	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1357627	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1420910	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005685	MANIFOLD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005686	MANIFOLD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LWQ500230	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order
	LWQ500140	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LWQ500150	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LYG500210	BOLT - HEX.HEAD	LYG500210 BOLT - HEX.HEAD M6 X 8MM / From: 7A000001	-	7	Enquire
HM1	1003736	SPACER	1003736 SPACER 8.5 x 10MM, Spacer For Exhaust Manifold Bolt / From: 7A000001	-	2	Enquire
HN1	6076340	NUT - HEX. - FLANGED	6076340 NUT - HEX. - FLANGED M8 / From: 7A000001	-	16	Enquire
HT1	1357627	STUD	1357627 STUD M8 X 17 + M8 X 19 / From: 7A000001	-	16	Enquire
9A462A	LWQ500230	SHIELD - EXHAUST MANIFOLD HEAT	LWQ500230 SHIELD - EXHAUST MANIFOLD HEAT RH, Exhaust Manifold / From: 7A107123	-	1	Enquire
9A462A	LWQ500140	SHIELD - EXHAUST MANIFOLD HEAT	LWQ500140 SHIELD - EXHAUST MANIFOLD HEAT RH, Exhaust Manifold / From: 7A000001 / To: 7A107122	-	1	Enquire
9A462B	LWQ500150	SHIELD - EXHAUST MANIFOLD HEAT	LWQ500150 SHIELD - EXHAUST MANIFOLD HEAT LH, Exhaust Manifold / From: 7A000001	-	1	Enquire
9430A	LR005685	MANIFOLD - EXHAUST	LR005685 MANIFOLD - EXHAUST RH / From: 7A000001	-	1	Enquire
9430B	LR005686	MANIFOLD - EXHAUST	LR005686 MANIFOLD - EXHAUST LH / From: 7A000001	-	1	Enquire
9448	1420910	GASKET	1420910 GASKET Exhaust Manifold / From: 7A000001	-	2	Enquire
