Heater/Air Cond.Internal Components ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Heater/Air Cond.Internal Components ((V) TO9A999999)

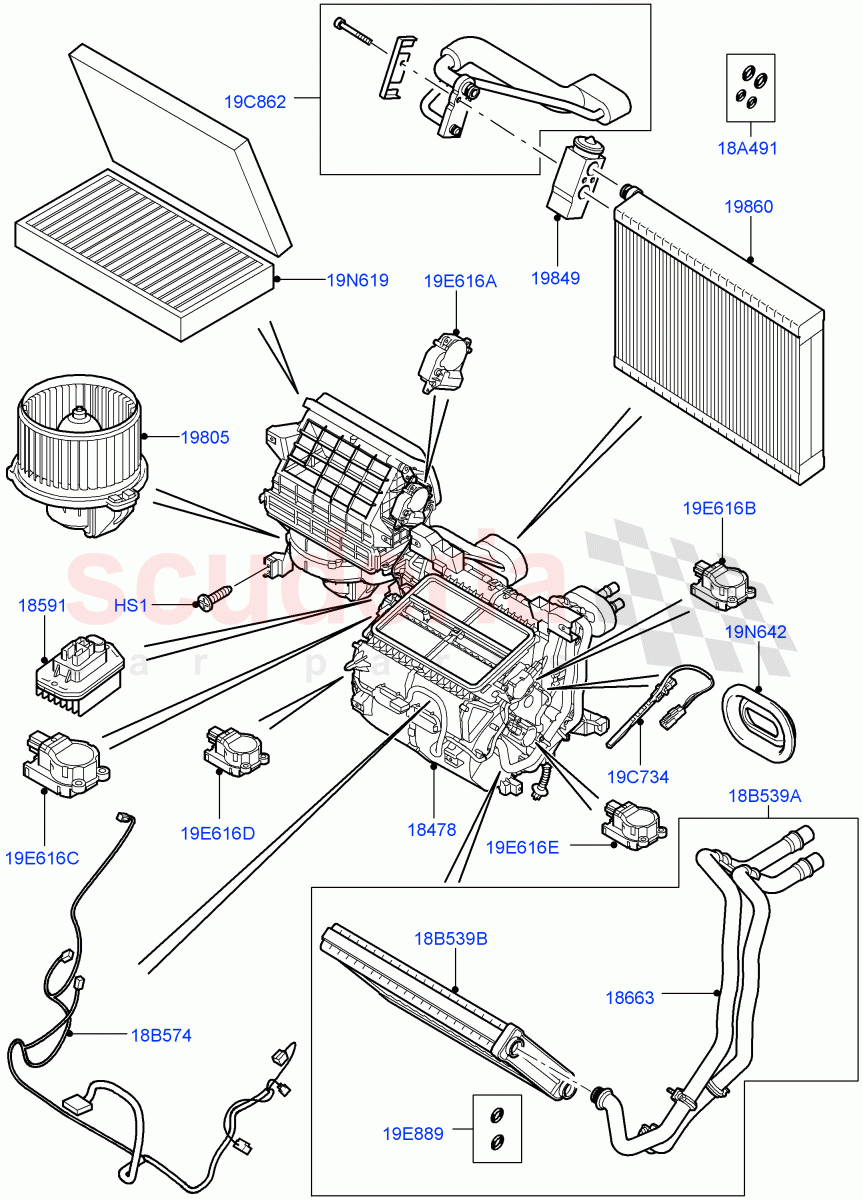

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	JYG500011	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JEC000753	HEATER	Enquire	To Order
	JEC000743	HEATER	Enquire	To Order
	JEC501480	AIR-CON UNIT	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	PCE500010	MODULE-CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JEZ500020	TUBE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JGC500050	MOTOR AND FAN - BLOWER	Enquire	To Order
	JGC500010	MOTOR AND FAN - BLOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JQD500010	VALVE - EVAPORATOR EXPANSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JQB500010	EVAPORATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JEP500010	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JGK500010	WIRING	Enquire	To Order
	JGK500030	WIRING	Enquire	To Order
	JGK500090	WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JTF500020	SENSOR - HEATER TEMPERATURE CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JQR500040	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JHO500010	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JKR500020	FILTER - POLLEN	Enquire	To Order
	JKR500010	FILTER - POLLEN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JQS500030	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017030	CORE - HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JEP500020	MATRIX - HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JNC500010	MOTOR	Enquire	To Order
	JNC500020	MOTOR	Enquire	To Order
	JNC500040	MOTOR - COOLING BLOWER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	JWO500010	MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JWO500020	MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JWO500030	MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JWO500040	MOTOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	JYG500011	BOLT	JYG500011 BOLT M6 X 33	-	2	Enquire
18A491	JEP500010	SEAL	JEP500010 SEAL With Air Conditioning / Pack Of Four (4)	-	1	Enquire
18B539A	LR017030	CORE - HEATER	LR017030 CORE - HEATER With Air Conditioning / From: 9A200661	-	1	Enquire
18B539B	JEP500020	MATRIX - HEATER	JEP500020 MATRIX - HEATER With Air Conditioning / To: 9A200660	-	1	Enquire
18B574	JGK500010	WIRING	JGK500010 WIRING (-)"J", LHD, With Air Conditioning / To: 6A999999	-	1	Enquire
18B574	JGK500030	WIRING	JGK500030 WIRING RHD, With Air Conditioning	-	1	Enquire
18B574	JGK500090	WIRING	JGK500090 WIRING (-)"J", LHD, With Air Conditioning / From: 7A000001	-	1	Enquire
19C734	JTF500020	SENSOR - HEATER TEMPERATURE CONTROL	JTF500020 SENSOR - HEATER TEMPERATURE CONTROL With Air Conditioning	-	1	Enquire
19C862	JQR500040	CLAMP	JQR500040 CLAMP Dual Tube Assy	-	1	Enquire
19E616A	JNC500010	MOTOR	JNC500010 MOTOR LHD / To: 7A999999	-	1	Enquire
19E616A	JNC500020	MOTOR	JNC500020 MOTOR RHD, With Air Conditioning / For The Lever Please Order The Blower Assy, Recirculation / To: 7A999999	-	1	Enquire
19E616A	JNC500040	MOTOR - COOLING BLOWER	JNC500040 MOTOR - COOLING BLOWER LHD / From: 8A000001	-	1	Enquire
19E616A	JNC500050	MOTOR - COOLING BLOWER	JNC500050 MOTOR - COOLING BLOWER RHD, With Air Conditioning / For The Lever Please Order The Blower Assy, Recirculation / From: 8A000001	-	1	Enquire
19E616B	JWO500010	MOTOR	JWO500010 MOTOR Defrost Stepper	-	1	Enquire
19E616C	JWO500020	MOTOR	JWO500020 MOTOR Face/Footwell Stepper	-	1	Enquire
19E616D	JWO500030	MOTOR	JWO500030 MOTOR Air Mix Left Stepper	-	1	Enquire
19E616E	JWO500040	MOTOR	JWO500040 MOTOR Air Mix Right Stepper	-	1	Enquire
19E889	JHO500010	O-RING	JHO500010 O-RING With Air Conditioning	-	2	Enquire
19N619	JKR500020	FILTER - POLLEN	JKR500020 FILTER - POLLEN Air Intake, Filter - Odour And Particles, Production Replacement, Standard	-	1	Enquire
19N619	JKR500010	FILTER - POLLEN	JKR500010 FILTER - POLLEN Air Intake, Production Installed, Standard	-	1	Enquire
19N642	JQS500030	GROMMET	JQS500030 GROMMET	-	1	Enquire
18478	JEC000753	HEATER	JEC000753 HEATER LHD, With Air Conditioning / To: 6A999999	-	1	Enquire
18478	JEC000743	HEATER	JEC000743 HEATER RHD, With Air Conditioning / To: 6A999999	-	1	Enquire
18478	JEC501480	AIR-CON UNIT	JEC501480 AIR-CON UNIT LHD, With Air Conditioning / From: 7A000001 / To: 8A146993	-	1	Enquire
18478	JEC501470	SEAL	JEC501470 SEAL RHD, With Air Conditioning / From: 7A000001 / To: 8A146993	-	1	Enquire
18478	JEC501650	HEATER	JEC501650 HEATER RHD, With Air Conditioning / From: 8A146994 / To: 9A200660	-	1	Enquire
18478	JEC501660	HEATER	JEC501660 HEATER LHD, With Air Conditioning / From: 8A146994 / To: 9A200660	-	1	Enquire
18478	LR016858	HEATER	LR016858 HEATER RHD, With Air Conditioning / From: 9A200661 / To: 9A206018	-	1	Enquire
18478	LR016859	HEATER	LR016859 HEATER LHD, With Air Conditioning / From: 9A200661 / To: 9A206018	-	1	Enquire
18478	LR018855	HEATER	LR018855 HEATER ATC Air Conditioning, RHD / From: 9A206019 / To: 9A213750	-	1	Enquire
18478	LR018856	HEATER	LR018856 HEATER ATC Air Conditioning, LHD / From: 9A206019 / To: 9A213750	-	1	Enquire
18478	LR031675	HEATER	LR031675 HEATER ATC Air Conditioning, RHD / From: 9A213751 / To: 9A214751	-	1	Enquire
18478	LR031676	HEATER	LR031676 HEATER ATC Air Conditioning, LHD / From: 9A213751 / To: 9A214751	-	1	Enquire
18478	LR066832	HEATER & EVAPORATOR UNIT	LR066832 HEATER & EVAPORATOR UNIT ATC Air Conditioning, RHD / From: 9A214752	-	1	Enquire
18478	LR066833	HEATER & EVAPORATOR UNIT	LR066833 HEATER & EVAPORATOR UNIT ATC Air Conditioning, LHD / From: 9A214752	-	1	Enquire
18591	PCE500010	MODULE-CONTROL	PCE500010 MODULE-CONTROL With Air Conditioning	-	1	Enquire
18663	JEZ500020	TUBE - HEATER WATER	JEZ500020 TUBE - HEATER WATER With Air Conditioning	-	1	Enquire
19805	JGC500050	MOTOR AND FAN - BLOWER	JGC500050 MOTOR AND FAN - BLOWER LHD, With Air Conditioning	-	1	Enquire
19805	JGC500010	MOTOR AND FAN - BLOWER	JGC500010 MOTOR AND FAN - BLOWER RHD, With Air Conditioning	-	1	Enquire
19849	JQD500010	VALVE - EVAPORATOR EXPANSION	JQD500010 VALVE - EVAPORATOR EXPANSION With Air Conditioning	-	1	Enquire
19860	JQB500010	EVAPORATOR	JQB500010 EVAPORATOR With Air Conditioning	-	1	Enquire
