Front Brake Pipes ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Front Brake Pipes ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SGK100820 CLIP $2.35 To Order
SYC500130 CLIP $1.35 To Order
Photo Part No Description Price (each) Stock
SYC101141 CLIP $0.76 To Order
Photo Part No Description Price (each) Stock
ANR1864 CLIP - BRAKE PIPE $2.32 To Order
Photo Part No Description Price (each) Stock
SYC500040 CLIP $2.32 To Order
Photo Part No Description Price (each) Stock
EJP7813 CLIP - HOSE $2.36 IN STOCK
Photo Part No Description Price (each) Stock
ADU8846L CLIP - BRAKE PIPE $1.59 To Order
Photo Part No Description Price (each) Stock
EDP7037L CLIP - BRAKE PIPE $1.54 To Order
Photo Part No Description Price (each) Stock
FS108147 SCREW $0.55 To Order
FS108146 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
FS106127L SCREW $2.04 To Order
Photo Part No Description Price (each) Stock
SGH100050 CONNECTOR $58.04 To Order
Photo Part No Description Price (each) Stock
SHB500038 HOSE - BRAKE $95.78 To Order
SHB500260 HOSE - BRAKE $90.43 To Order
Photo Part No Description Price (each) Stock
SHB500250 HOSE - BRAKE $87.12 To Order
SHB000329 HOSE - BRAKE $87.12 To Order
Photo Part No Description Price (each) Stock
ADU780051 BRACKET $4.89 To Order
Photo Part No Description Price (each) Stock
SGK500020 CLIP $1.08 To Order
Photo Part No Description Price (each) Stock
SGK100470 CLIP $0.74 To Order
Photo Part No Description Price (each) Stock
SGB500011 TUBE - BRAKE $26.11 To Order
SGB500021 TUBE - BRAKE $26.11 To Order
SGB500012 TUBE - BRAKE $26.97 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
SGB001697 TUBE - BRAKE $15.07 To Order
SGB001756 TUBE - BRAKE $12.79 To Order
LR021671 TUBE - BRAKE $59.12 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
SGB001664 TUBE - BRAKE $30.12 To Order
SGB001724 TUBE - BRAKE $10.91 To Order
Photo Part No Description Price (each) Stock
SGB001733 TUBE - BRAKE $14.97 To Order
SGB001673 TUBE - BRAKE $14.79 To Order
SGB001674 TUBE - BRAKE $30.12 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
SGB001747 TUBE $14.68 To Order
SGB001688 TUBE $15.76 To Order
LR021670 TUBE - BRAKE $56.53 To Order
...and 1 more part variants. See table on right for more details.
View All

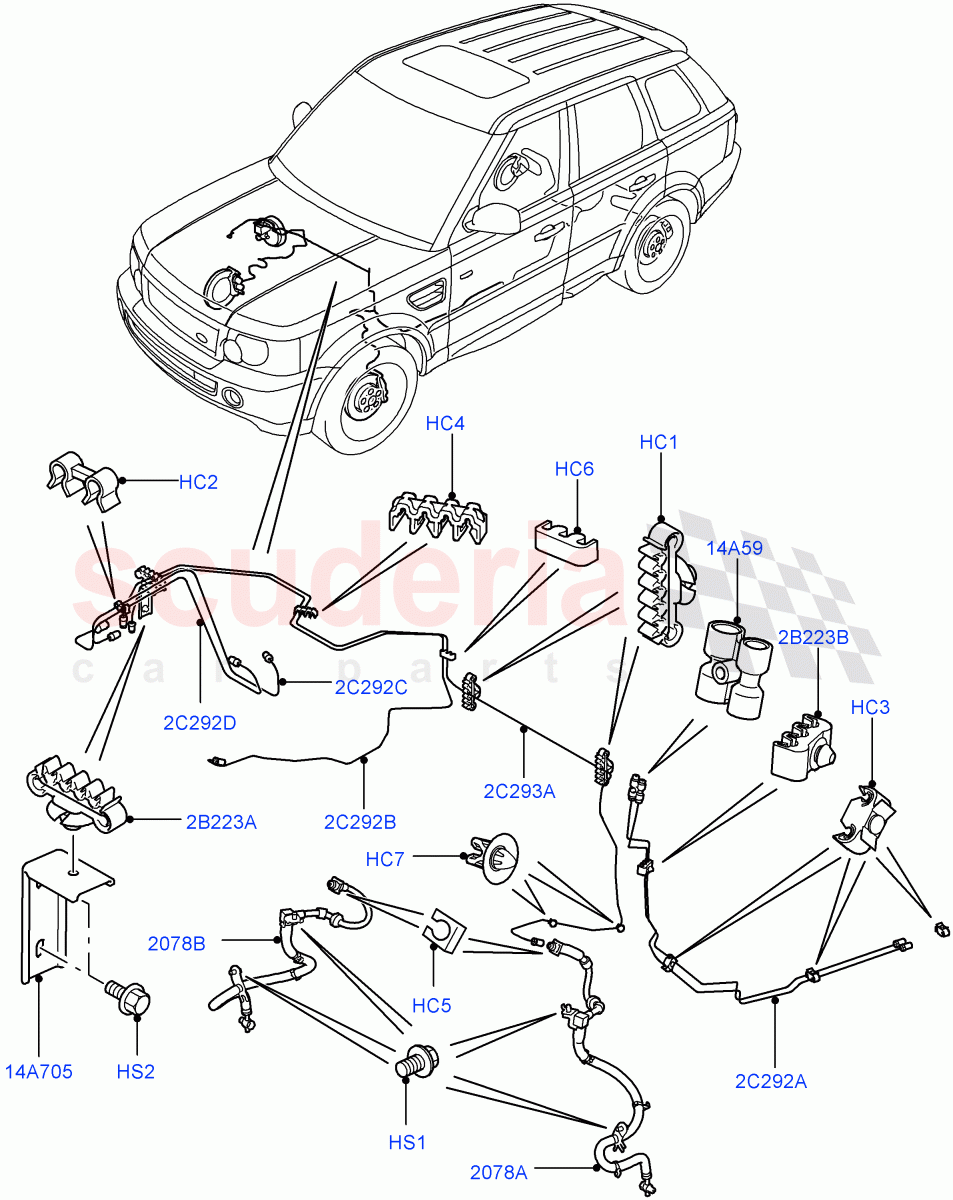

Front Brake Pipes ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 SGK100820
CLIP
5 Way / To: 8A171770 		$2.35 2
HC1 SYC500130
CLIP
5 Way / From: 8A171771 		$1.35 2
HC2 SYC101141
CLIP
Double 		$0.76 2
HC3 ANR1864
CLIP - BRAKE PIPE
Double 		$2.32 3
HC4 SYC500040
CLIP
4 Way 		$2.32 1
HC5 EJP7813
CLIP - HOSE
Brake Hose
IN STOCK 		$2.36 6
HC6 ADU8846L
CLIP - BRAKE PIPE
3 way 		$1.59 1
HC7 EDP7037L
CLIP - BRAKE PIPE
Single 		$1.54 4
HS1 FS108147
SCREW
M8 X 14MM / To: 7A108451 		$0.55 4
HS1 FS108146
SCREW
M8 X 14MM / From: 7A108452 		$0.63 4
HS2 FS106127L
SCREW
M6 x 12MM 		$2.04 2
2B223A SGK500020
CLIP 		$1.08 1
2B223B SGK100470
CLIP 		$0.74 1
2C292A SGB500011
TUBE - BRAKE
LH / To: 5A901723 		$26.11 1
2C292A SGB500021
TUBE - BRAKE
RH / To: 5A901723 		$26.11 1
2C292A SGB500012
TUBE - BRAKE
LH / From: 5A901724 / To: 6A999999 		$26.97 1
2C292A SGB500022
TUBE - BRAKE
RH / From: 5A901724 / To: 6A999999 		$26.97 1
2C292A SGB501440
TUBE - BRAKE
LH / From: 7A000001 		$92.05 1
2C292A SGB501450
TUBE - BRAKE
RH / From: 7A000001 		$92.05 1
2C292B SGB001697
TUBE - BRAKE
LHD / Modulator To Front Hose (RH) / To: 9A215187 		$15.07 1
2C292B SGB001756
TUBE - BRAKE
RHD / Modulator To Front Hose (RH) / To: 9A215187 		$12.79 1
2C292B LR021671
TUBE - BRAKE
LHD / Modulator To Front Hose (RH) / From: 9A215188 		$59.12 1
2C292B LR021675
TUBE - BRAKE
RHD / Modulator To Front Hose (RH) / From: 9A215188 		$52.14 1
2C292C SGB001664
TUBE - BRAKE
LHD / Master Cylinder Primary 		$30.12 1
2C292C SGB001724
TUBE - BRAKE
RHD / Master Cylinder Primary 		$10.91 1
2C292D SGB001733
TUBE - BRAKE
RHD / Master Cylinder Secondary / To: 5A901723 		$14.97 1
2C292D SGB001673
TUBE - BRAKE
LHD / Master Cylinder Secondary / To: 5A901723 		$14.79 1
2C292D SGB001674
TUBE - BRAKE
LHD / Master Cylinder Secondary / From: 5A901724 		$30.12 1
2C292D SGB001733
TUBE - BRAKE
RHD / Master Cylinder Secondary / From: 5A901724 		$14.97 1
2C293A SGB001747
TUBE
RHD / LH / To: 9A215187 		$14.68 1
2C293A SGB001688
TUBE
LHD / LH / To: 9A215187 		$15.76 1
2C293A LR021670
TUBE - BRAKE
LHD / LH / From: 9A215188 		$56.53 1
2C293A LR021674
TUBE - BRAKE
RHD / LH / From: 9A215188 		$59.24 1
14A59 SGH100050
CONNECTOR 		$58.04 1
14A705 ADU780051
BRACKET 		$4.89 1
2078A SHB500038
HOSE - BRAKE
LH / To: 9A191792 		$95.78 1
2078A SHB500260
HOSE - BRAKE
LH / From: 9A191793 		$90.43 1
2078B SHB500250
HOSE - BRAKE
RH / From: 9A191792 		$87.12 1
2078B SHB000329
HOSE - BRAKE
RH / To: 9A191791 		$87.12 1
