Find Your Part

View All

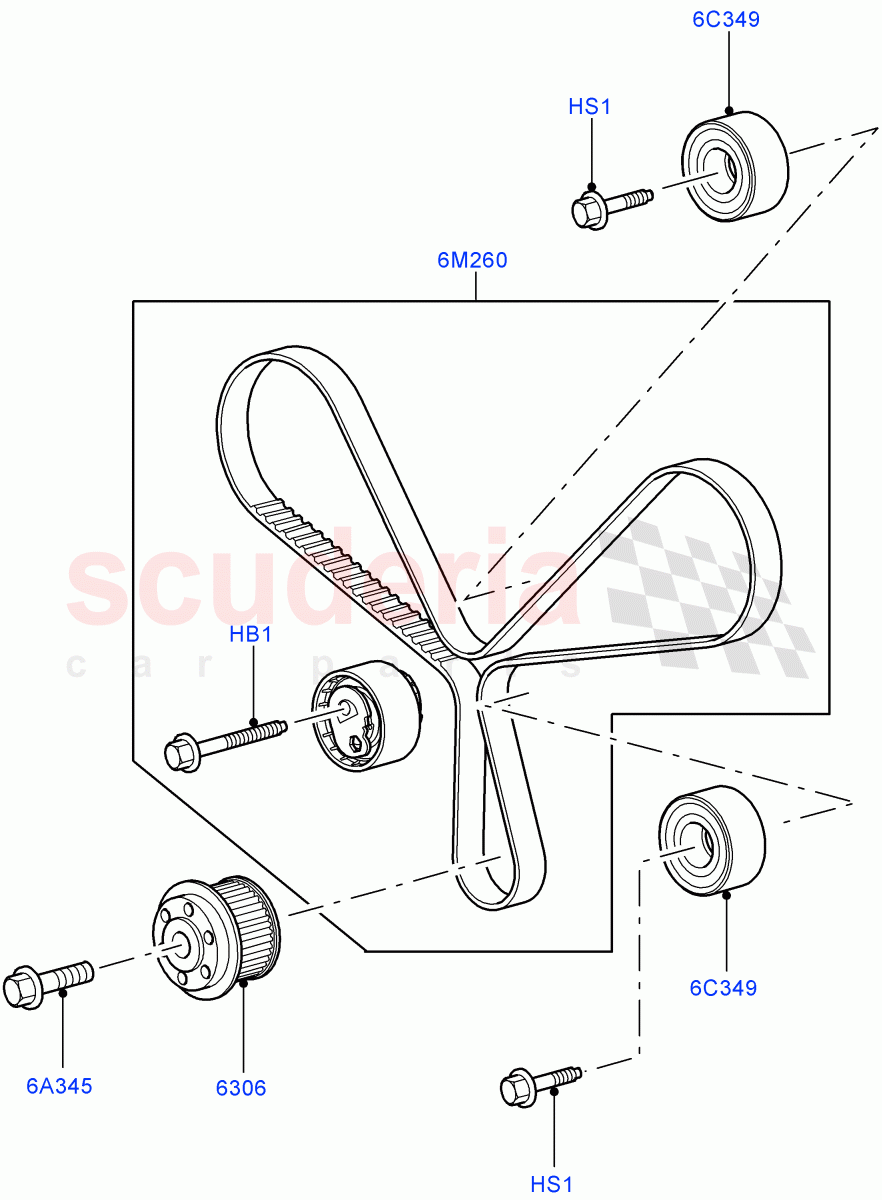

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1311306	KIT - DRIVE BELT	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1334920	BOLT	1334920 BOLT M8 X 75MM / To: 6A999999	-	1	Enquire
HB1	LR006027	BOLT	LR006027 BOLT M8 X 75MM / From: 7A000001	-	1	Enquire
HS1	1664917	SCREW - SELF-LOCKING	1664917 SCREW - SELF-LOCKING M10 X 25MM / To: 6A999999	-	2	Enquire
HS1	LR004104	SCREW	LR004104 SCREW M10 X 25MM / From: 7A000001	-	2	Enquire
6A345	1326752	BOLT - HEX.HEAD	1326752 BOLT - HEX.HEAD For Short Blocks With M14 Crankshaft Sprocket Bolt, M14 x 70MM / To: 6A999999	-	1	Enquire
6A345	LR002458	NUT - HEX HEAD	LR002458 NUT - HEX HEAD For Short Blocks With M14 Crankshaft Sprocket Bolt, M14 x 70MM / From: 7A000001 / To: 9A198352	-	1	Enquire
6A345	LR013377	BOLT - HEX.HEAD	LR013377 BOLT - HEX.HEAD For Short Blocks With M16 Crankshaft Sprocket Bolt, M16 X 70 / From: 9A198353	-	1	Enquire
6C349	1311306	KIT - DRIVE BELT	1311306 KIT - DRIVE BELT Timing Belt	-	2	Enquire
6M260	1324388	BELT - TIMING	1324388 BELT - TIMING To: 9A777776	-	1	Enquire
6M260	LR016655	BELT - TIMING	LR016655 BELT - TIMING From: 9A777777	-	1	Enquire
6306	1331355	PULLEY - CRANKSHAFT	1331355 PULLEY - CRANKSHAFT To: 8A177097	-	1	Enquire
6306	LR005996	GEAR - CRANKSHAFT	LR005996 GEAR - CRANKSHAFT For Short Blocks With M14 Crankshaft Sprocket Bolt, For Short Blocks With M16 Crankshaft Sprocket Bolt / From: 8A177098	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Timing Gear (Lower) (Lion Diesel 2.7 V6 (140Kw)) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]
